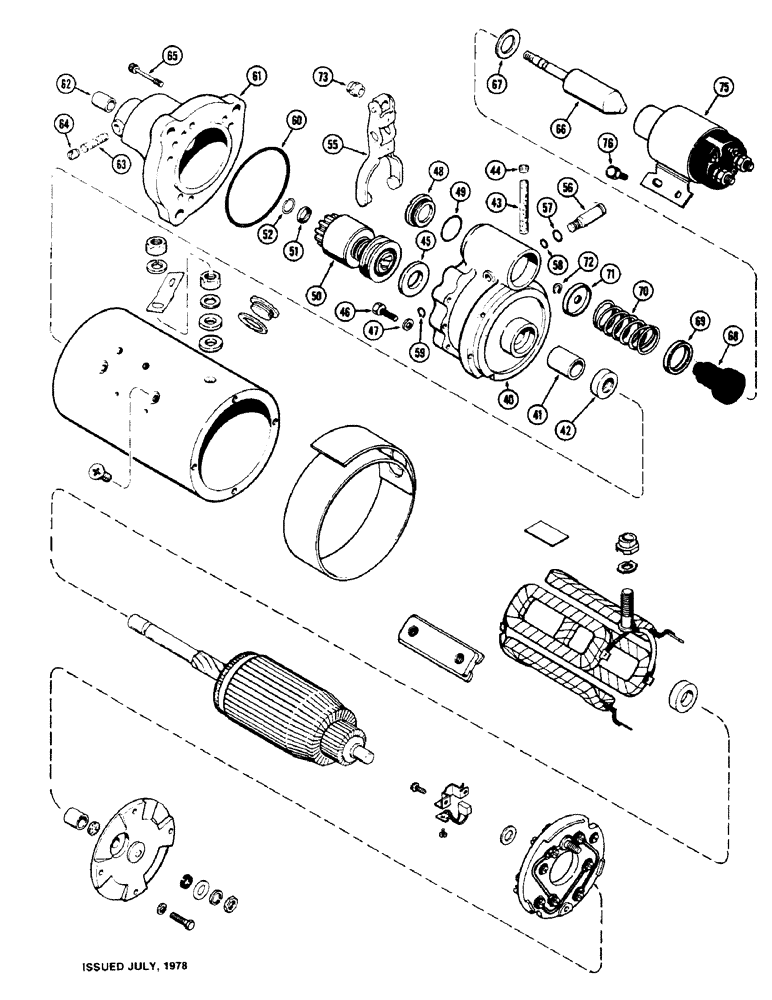

Запчасти Case IH 1570 (071A) - A145555 STARTER, DELCO-REMY NUMBER 1113478, USED TRACTOR SERIAL NUMBERS 8814501 TO 8817385 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A145555
STARTING MOTOR
STARTER ASSY, Continued from Figure 070, Includes Ref. 40 - 76
1шт.
40
A43859
HOUSING
ASSY shift lever, Includes Ref. 41 - 45
1шт.
41
A40944
BUSHING
3/4 x 7/8 x 3/4"
1шт.
42
A25407
OIL SEAL
oil, 3/4 x 1-3/8 x 3/8"
1шт.
43
R15023
WICK
oil
1шт.
44
221-1849
PLUG
hex socket head, 1/8" PT
1шт.
45
R15043
WASHER
brake, 3/4 x 2 x 1/8"
1шт.
46
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
Lever housing attaching Hex, 1/4"-28 x 1", G5
5шт.
47
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
48
R21587
PLUG
inspection, lever housing
1шт.
49
A41924
GASKET
plug, 1-3/8 x 1-9/16 x 1/8"
1шт.
50
A47106
DRIVE
ASSY clutch, Order A47178
1шт.
51
R15049
COLLAR
pinion stop
1шт.
52
R15048
RING
retainer, pinion stop
1шт.
55
A43852
LEVER
ASSY shift
1шт.
56
A43851
SHAFT
shift lever
1шт.
57
R21573
O-RING,0.369" ID x 0.515" OD x 0.073"
3/8 x 1/2 x 1/16"
1шт.
58
R21574
O-RING,0.244" ID x 0.391" OD x 0.073"
1/4 x 3/8 x 1/16"
1шт.
59
A40422
RING
snap, shift lever attaching pin
1шт.
60
A43854
O-RING,3.237" ID x 0.106" THK
lever housing to drive
1шт.
61
A43858
HOUSING
ASSY drive, Inlcudes Ref. 62, 63 and 64
1шт.
62
A40868
BUSHING
9/16 x 3/4 x 3/4"
1шт.
63
R15023
WICK
oil
1шт.
64
221-1849
PLUG
hex socket head, 1/8" PT
1шт.
65
62-414
HEX SOC SCREW,1/4"-28 x 7/8"
SCREW socket head, 1/4 x 7/8" NF
6шт.
66
A43857
PLUNGER
ASSY
1шт.
67
A41922
WASHER
13/16 x 1-3/8 x 1/32"
1шт.
68
A42308
BOOT
plunger
1шт.
69
A43380
BACK-UP RING
RETAINER spring, with 1-3/16" hole
1шт.
70
A41242
SPRING
shift lever, 2-3/4" free length
1шт.
71
A43419
SEAT
RETAINER spring, with 3/8" hole
1шт.
72
A40422
RING
snap, plunger spring
1шт.
73
A43856
NUT
plunger rod guide adjusting
1шт.
75
A44817
SOLENOID
ASSY See Figure 072
1шт.
76
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
hex, 1/4 x 3/8" NC
4шт.
Выбрано товаров: 35
