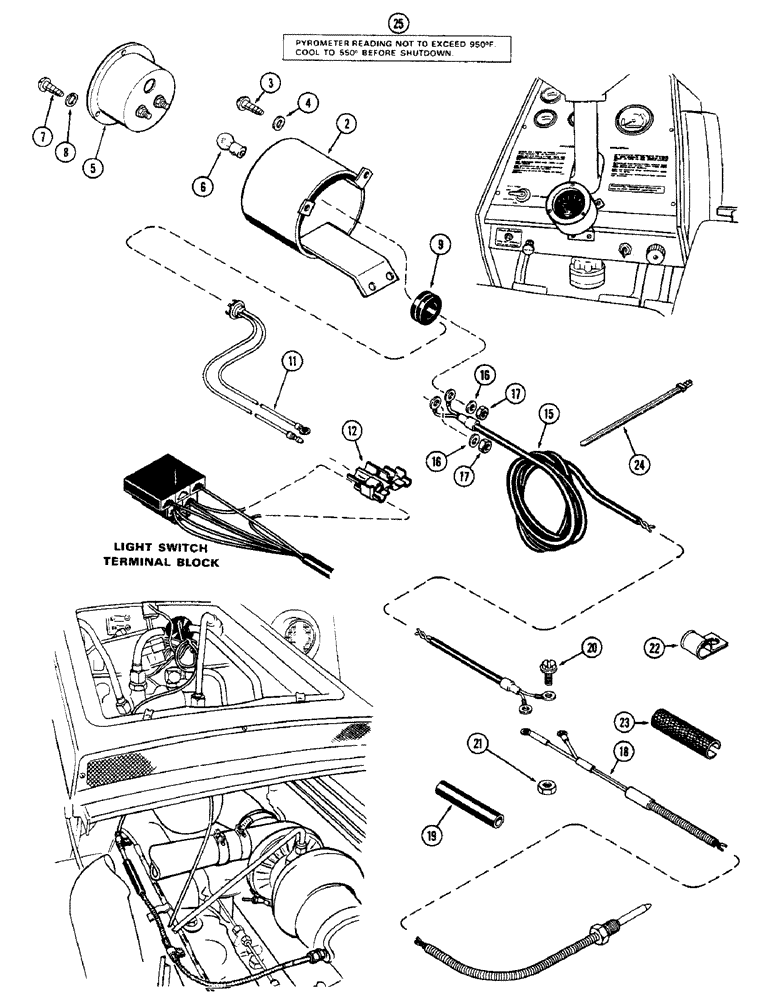

Запчасти Case IH 1570 (062) - PYROMETER KIT, 504BDT DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A139032

KIT

PYROMETER KIT, Inlcudes Ref. 2 - 24

1шт.

2

A139453

TUBE

mounting, pyrometer

1шт.

3

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW self-tapping, No. 8-32 x 1/2"

4шт.

4

195-510

WASHER,#8

5/16 x 7/16 x 1/16"

4шт.

5

A139021

ELECTRICAL GAUGE

PYROMETER engine exhaust

1шт.

Part of gauge and wiring kit A77252

1шт.

6

B50213

BULB

12 volt

1шт.

Part of gauge and wiring kit A77252

1шт.

7

187-1104

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW, No. 6-32 x 3/4" self-tapping

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

9

A27338

GROMMET

wire harness

1шт.

11

A139030

SOCKET/RECEPTACLE

WIRE pyrometer light

1шт.

12

A62556

CONNECTOR, ELEC

CONNECTOR bullet, light wire

1шт.

15

A139025

HARNESS

wire

1шт.

16

195-12

WASHER,#10

1/4 x 1/2 x 1/16"

2шт.

17

129-27

NUT,Hex, #10 - 32

hex, No. 10-32 NC

2шт.

18

A139024

PROBE

THERMOCOUPLE pyrometer

1шт.

19

A139029

BOOT

connector

1шт.

20

175-93

SCREW,Sl Truss Hd, #10 - 24 x 1/4"

truss hd, No. 10-24 x 1/4"

2шт.

21

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

2шт.

Part of gauge and wiring kit A77252

1шт.

22

A62209

CLAMP,5/16", Insul, 1/4" Bolt

lead wire

2шт.

23

A12458

SLEEVE

wire harness

2шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

STRAP wire harness

1шт.

25

321-1778

DECAL

pyrometer temperatures

1шт.

A77252

KIT gauge and wiring, Includes Ref. 5, 6, 11 and 15 - 21

1шт.
