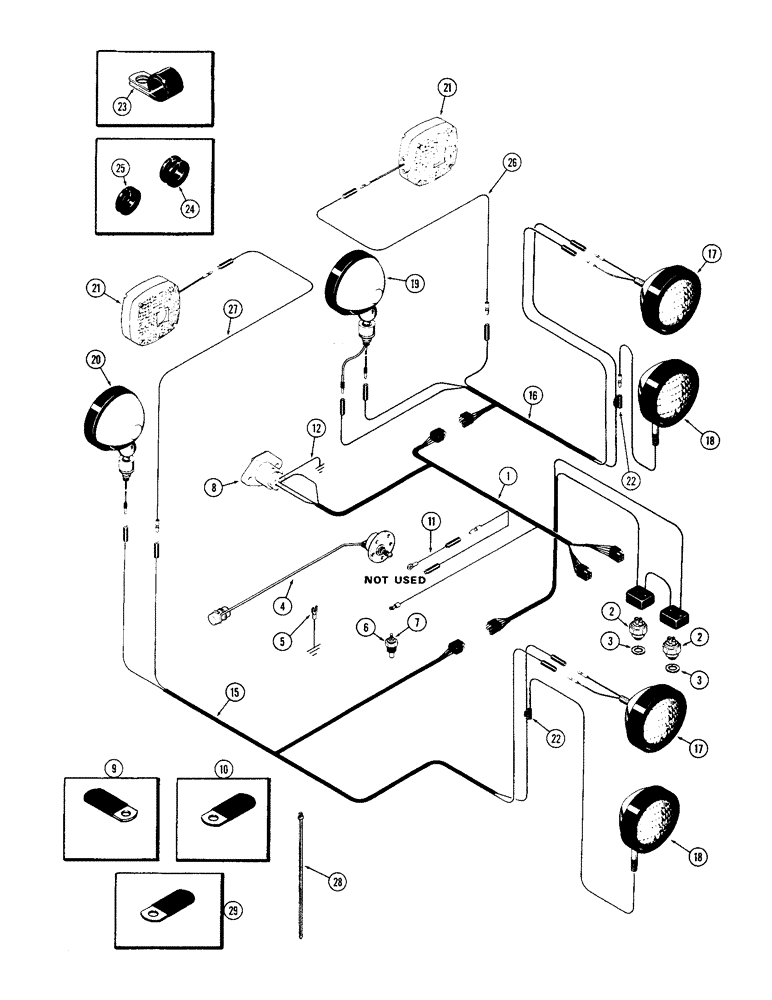

Запчасти Case IH 1570 (058) - ELECTRICAL EQUIPMENT AND WIRING, 504BDT DIESEL ENGINE, TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A139926

HARNESS

SPARE PART Transmission wire

1шт.

2

A139078

SWITCH

Neutral start

2шт.

3

G49402

SHIM,.010" Thk

Neutral start switch

1шт.

4

A63704

TRANSMITTER

UNIT fuel gauge sender

1шт.

5

A63739

ELECTRICAL WIRE

WIRE Ground, fuel gauge sender

1шт.

6

A21462

SENDER UNIT

SENDER Transmission temperature

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

1шт.

8

A38739

CONNECTOR, ELEC

CONNECTOR Auxiliary, 7 way, See Figure 060

1шт.

9

A37179

CLIP

, Serial Range: Wire-fender

2шт.

10

A22880

CLIP

Fender harness

1шт.

11

A65812

ELECTRICAL WIRE

WIRE Fuel gauge sender

1шт.

12

A66893

ELECTRICAL WIRE

WIRE Ground, 7 way connector

1шт.

15

A66913

HARNESS

Fender, RH

1шт.

16

A66915

HARNESS

Fender, LH

1шт.

17

A64498

LAMP

Front, driving, See Figure 080

2шт.

18

A59723

LAMP

Front, cultivating, See Figure 080

2шт.

19

A59703

LAMP

Rear, flood and tail, See Figure 082

1шт.

20

REF

INSTRUCTION

LAMP rear, flood, See Figure 082

1шт.

21

A44201

LIGHT ASSY.

Flasher, See Figure 078

2шт.

22

A62556

CONNECTOR, ELEC

CONNECTOR Splice, cultivating lamp

2шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLIP wire harness

4шт.

24

353-700

BUSHING

Cab fender, 17/64" ID

1шт.

25

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

GROMMET head lamp wires, cab front frame, 1/2" ID

2шт.

26

F63585

CABLE

WIRE flasher to harness, LH, 60"

1шт.

27

F63584

CABLE

WIRE flasher to harness, RH, 110"

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Harness, nylon

1шт.

29

A38066

CLIP

Fender harness

1шт.
