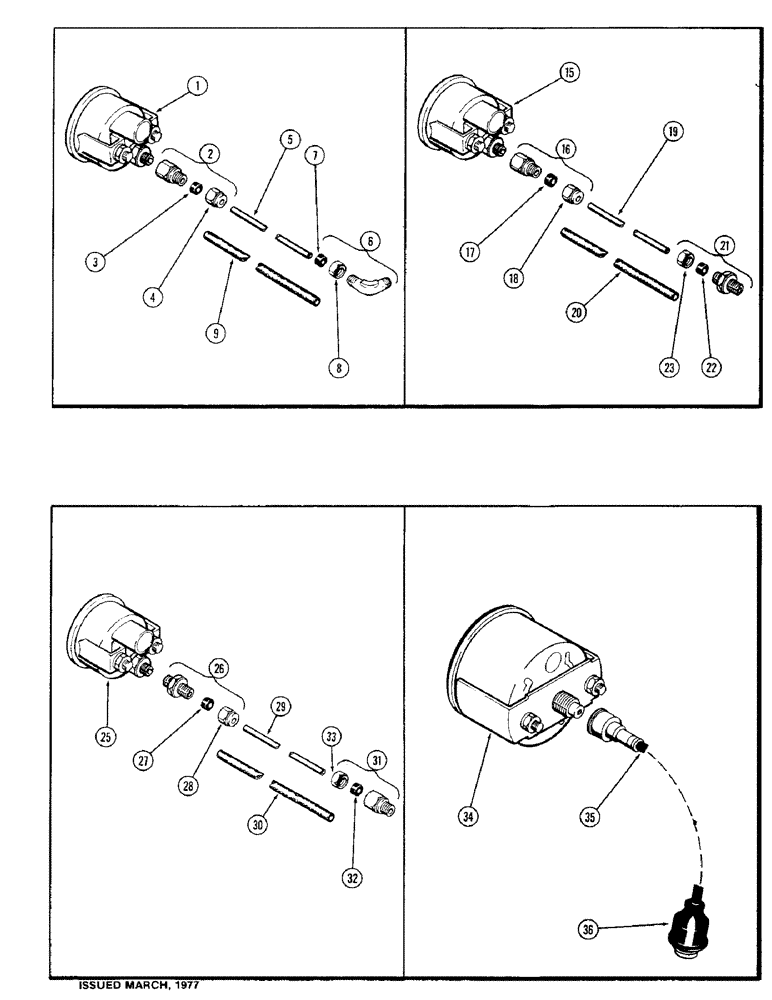

Запчасти Case IH 1570 (055A) - OIL PRESSURE GAUGES, 504BDT DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

engine oil pressure

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR ASSY 3/16" tube x 1/8" PT, In gauge, Includes Ref. 3 and 4

1шт.

3

222-101

SLEEVE,3/16" Tube

1шт.

4

222-111

TUBE NUT,7/16" - 24

NUT, 3/16" tube

1шт.

5

A66386

TUBE

engine oil pressure, 3/16" OD x 71"

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSY. 3/16" tube x 1/8" PT, 90 deg., In cyl. block, Includes Ref. 7 and 8

1шт.

7

222-101

SLEEVE,3/16" Tube

1шт.

8

222-111

TUBE NUT,7/16" - 24

NUT, 3/16" tube

1шт.

9

A59680

LOOM

oil pressure tube

1шт.

15

A59684

ELECTRICAL GAUGE

GAUGE transmission pressure

1шт.

16

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSY 1/8" tube x 1/8" PT, In gauge, Inlcudes Ref. 17 and 18

1шт.

17

222-100

TUBE NUT,1/8" Tube

SLEEVE, 1/8" Tube

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT, 1/8" tube

1шт.

19

A59685

TUBE

transmission oil pressure, 1/8" OD x 77"

1шт.

20

A59686

LOOM

pressure tube, 1/4" ID x 73" plastic

1шт.

21

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR, 1/8" tube x 1/8" PT, In torque tube, Includes Ref. 22 and 23

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE, 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT, 1/8" tube

1шт.

25

A65062

GAUGE

transmission oil filter pressure

1шт.

26

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSY 1/8" tube x 1/8" PT, In gauge, Includes Ref. 27 and 28

1шт.

27

222-100

TUBE NUT,1/8" Tube

SLEEVE, 1/8" Tube

1шт.

28

222-110

TUBE NUT,3/8"-24

NUT, 1/8" tube

1шт.

29

A59685

TUBE

transmission oil filter pressure, 1/8" OD x 77"

1шт.

30

A138167

LOOM

pressure tube, 1/4" ID x 107" plastic

1шт.

31

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSY, 1/8" tube x 1/8" PT, In reg. valve, Includes Ref. 32 and 33

1шт.

32

222-100

TUBE NUT,1/8" Tube

SLEEVE, 1/8" Tube

1шт.

33

222-110

TUBE NUT,3/8"-24

NUT, 1/8" tube

1шт.

34

A137292

TACHOMETER

ASSY drive

1шт.

35

A59691

CABLE

ASSY tachometer drive, Includes Ref. 36

1шт.

36

A24523

KIT

repair, drive cable, tachometer

1шт.
