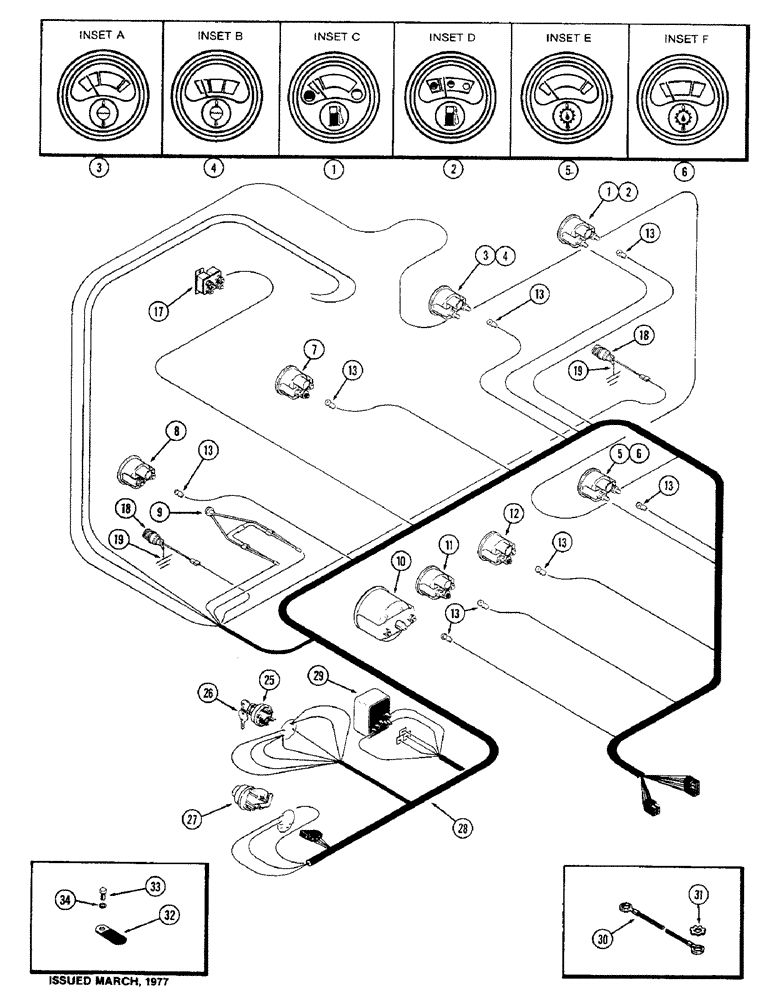

Запчасти Case IH 1570 (054) - INSTRUMENTS AND WIRING, 504BDT DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A143676

ELECTRICAL GAUGE

Fuel, 1st used tractor S/N 8807930, See inset C

1шт.

2

A59682

ELECTRICAL GAUGE

Fuel, Used prior to tractor S/N 8807930, Order A143676, See inset D

1шт.

3

A143677

ELECTRICAL GAUGE

Engine temperature, 1st used tractor /N 8807930, See inset A

1шт.

4

A61786

ELECTRICAL GAUGE

Engine temperature, Used prior to tractor S/N 8807930, See inset B, Order A143677

1шт.

5

A143678

ELECTRICAL GAUGE

Transmission temperature, 1st used tractor S/N 8807930, See inset E

1шт.

6

A64491

ELECTRICAL GAUGE

Transmission temperature, Used prior to tractor S/N 8807930, See inset F, Order A143678 and A21462 sender

1шт.

7

A62006

GAUGE

Engine oil pressure, See Figure 055A

1шт.

8

A59687

DIAL

CASE alternator warning lamp

1шт.

9

A137562

HARNESS

RECEPTACLE ASSY alternator warning lamp

1шт.

10

A137292

TACHOMETER

ASSY, See Figure 055A

1шт.

11

A65062

GAUGE

Transmission oil filter pressure, See Figure 055A

1шт.

12

REF

INSTRUCTION

GAUGE transmission oil pressure, See Figure 055A

1шт.

13

A14553

BULB

Gauges

8шт.

17

A59704

BREAKER

Circuit, 80 amp, See Figure 060

1шт.

18

A77188

LAMP

Turn signal indicator, RH and LH

2шт.

19

A66892

ELECTRICAL WIRE

WIRE Ground, indictor lamp

2шт.

25

A59693

SWITCH

Starting

1шт.

26

A60319

KEY

ASSY starting switch, Set of 2

1шт.

27

A64499

SWITCH

ASSY lights, See Figure 060

1шт.

28

A135870

HARNESS

Wire, instrument

1шт.

29

REF

INSTRUCTION

SWITCH ASSY turn signal, See Figure 060

1шт.

30

A64704

STRAP

Ground, instrument panel

1шт.

31

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

1шт.

32

A37179

CLIP

Wire harness

1шт.

33

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

34

92-5

LOCK WASHER,5/16"

1шт.
