(050) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE

Запчасти Case IH 1570 (050) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

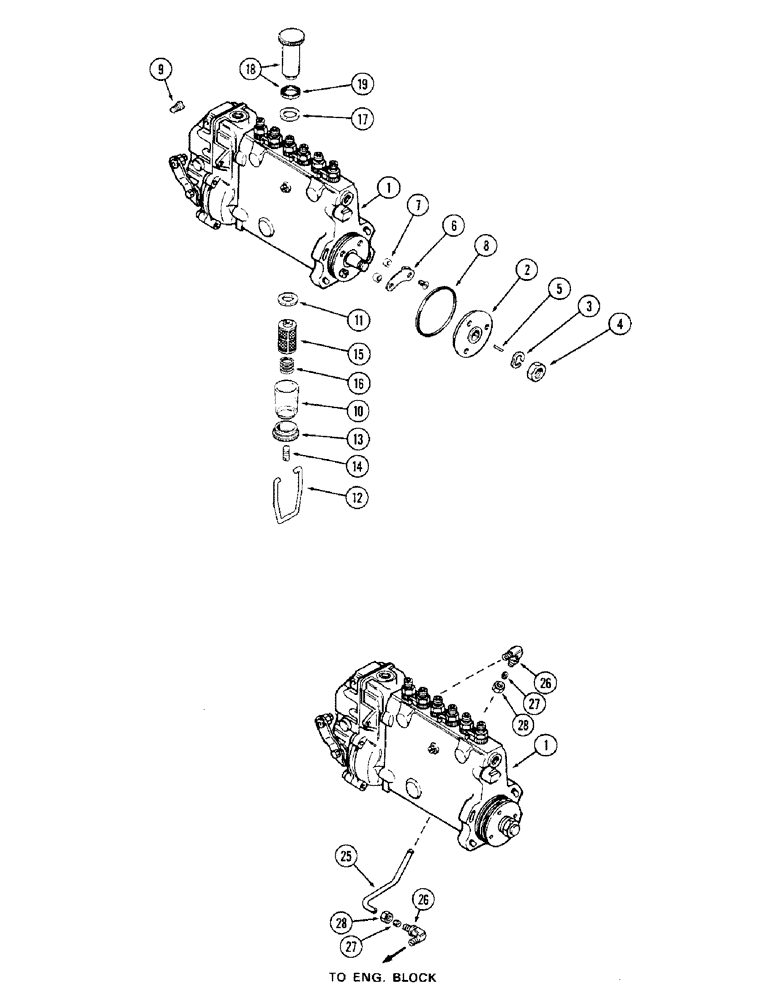

Схема запчастей Case IH 1570 - (050) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM
9
27
5
4
1
25
11
8
19
2
14
6
26
16
27
18
12
17
28
26
28
15
13
10
3
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A142221

PUMP ASSY fuel injection, 2100 R.P.M., Includes Ref. 2 - 19

1шт.

2

A41857

HUB

pump drive

1шт.

3

A41851

LOCK WASHER

lock, hub nut

1шт.

4

A41852

LOCK NUT

hub retaining

1шт.

5

A41850

KEY

hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER hub adjustment

1шт.

7

A41859

BUSHING

SPACER pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

2-21/64 x 3-3/16 x 1/8"

1шт.

9

A44259

SCREW

pump stop control cable lock

1шт.

10

A43347

BOWL

filter

1шт.

11

A43346

GASKET

bowl

1шт.

12

A43350

CLAMP

BAIL bowl

1шт.

13

A43348

NUT

BAILNUT bowl seat

1шт.

14

A43349

STUD

bailnut retaining

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT filter

1шт.

16

A43345

SPRING

element retaining

1шт.

17

A43351

SEAL

hand primer pump, copper

2шт.

18

A43343

CARTRIDGE

PUMP ASSY hand primer, Includes Ref. 19

1шт.

19

A45342

GASKET

hand primer pump

1шт.

25

A136903

TUBE

lube oil, Serial Range: block-pump

1шт.

26

222-4042

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1/4" tube x 1/8" PT, Includes Ref. 27 and 28

2шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT, For 1/4" tube

1шт.
