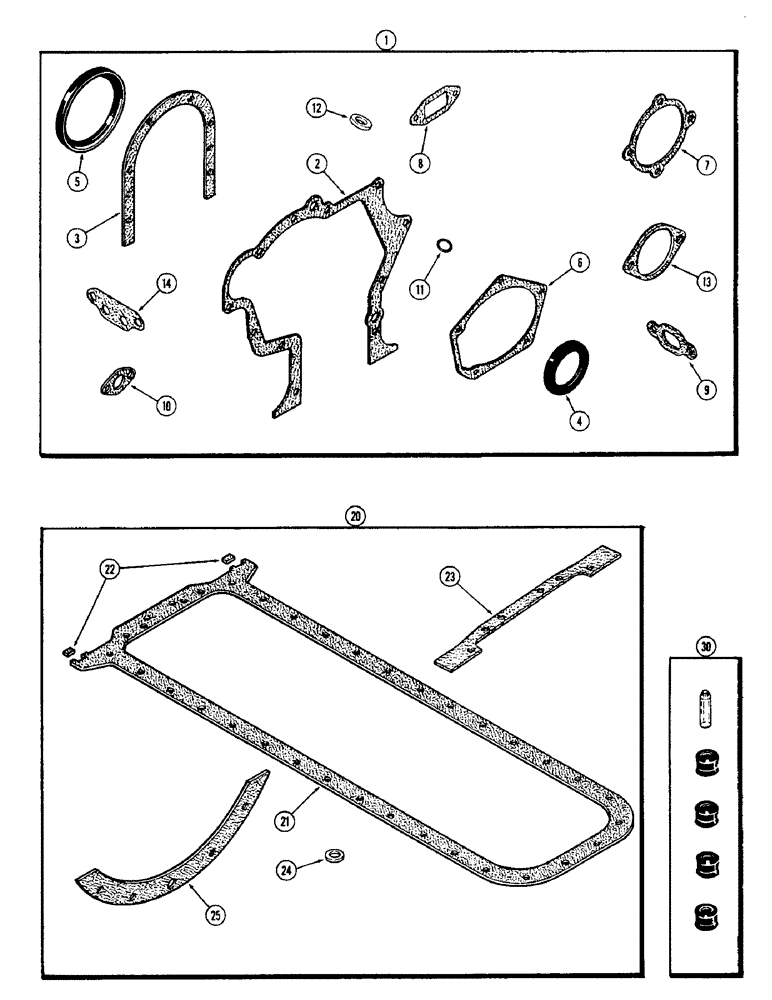

Запчасти Case IH 1570 (037A) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE, CYLINDER BLOCK KIT (02) - ENGINE

1

A44075

GASKET KIT

KIT gasket, cylinder block, Includes Ref. 2 - 14

1шт.

For complete engine overhaul with 5.188" to 5.194" fire dam diameter sleeves, order A151404, A44075 and A152479

1шт.

2

A58612

GASKET

timing gear cover

1шт.

3

A32830

GASKET

rear seal retainer

1шт.

4

A62049

OIL SEAL

oil, crankshaft front

1шт.

5

A62050

OIL SEAL

oil, crankshaft rear

1шт.

6

A58615

GASKET

fuel pump cover

1шт.

7

A58646

GASKET

water pump

1шт.

8

A58649

GASKET

water pump body

1шт.

9

A58670

GASKET

oil cooler, Serial Range: tube-block

1шт.

10

A58680

OIL PAN GASKET SET

oil cooler tube to water pump

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

oil filter base

3шт.

12

A58613

SEALING WASHER

GASKET timing gear cover plug

1шт.

13

A58617

GASKET

auxiliary drive cover, Not used this unit

1шт.

14

A58756

OIL PAN GASKET SET

oil filter boss, Not used this unit

1шт.

20

A152479

GASKET KIT

KIT gasket, oil pan, Includes Ref. 21 - 25

1шт.

For complete engine overhaul with 5.092" to 5.097" fire dam diameter sleeves, order A151406, A44075 and A152479

1шт.

21

A150688

GASKET

, Serial Range: pan-block

1шт.

22

A150690

OIL PAN GASKET SET

corner, Serial Range: pan-housing

2шт.

23

A150689

GASKET

flywheel housing cover

1шт.

24

A27968

RING

drain plug, opper

1шт.

25

A57966

GASKET

, Serial Range: pan-transmission

1шт.

30

M20614

SEAL KIT

seal, valve, Includes (4) seals and installation sleeve, oil pan

1шт.
