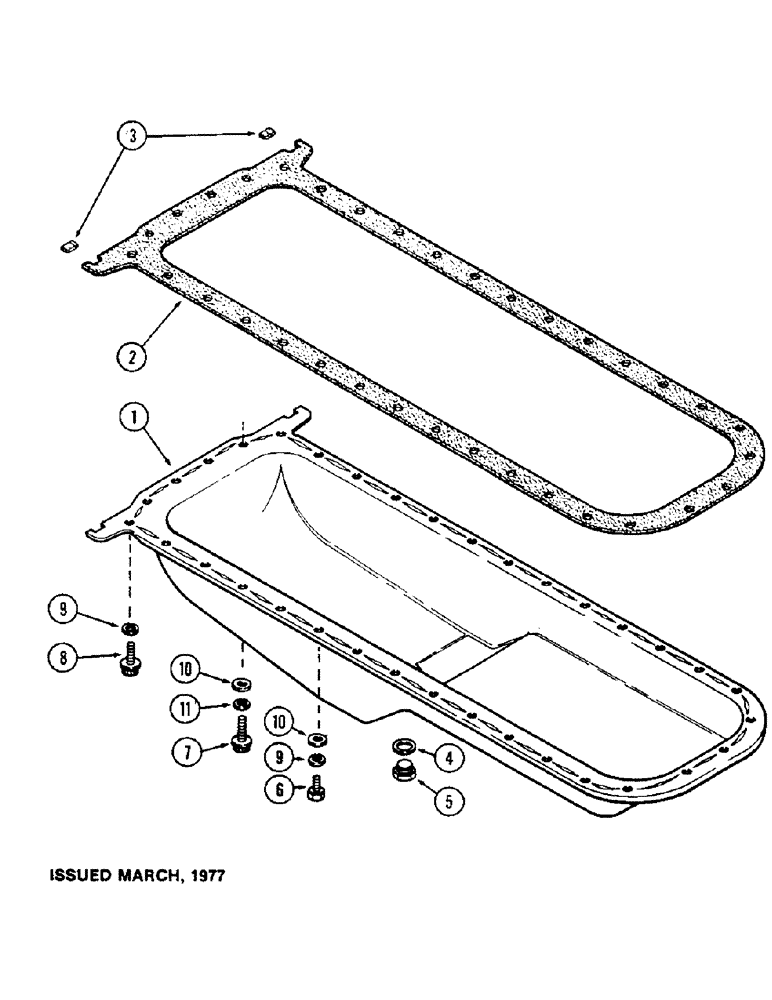

Запчасти Case IH 1570 (035A) - OIL PAN, 504BDT DIESEL ENGINE (02) - ENGINE

1

A148753

PAN

oil, Replaces A66126

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET pan to block, See Figure 036

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET tab, pan corners, See Figure 036

2шт.

4

A27968

RING

copper, drain plug

1шт.

5

A34826

PLUG,7/8" - 18 ORB

drain

1шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

28шт.

7

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW cap, ferry hd, 3/8 x 1-1/4" NC

4шт.

8

166-528

SPECIAL BOLT,12 Pt Flg, 5/16" - 18 x 1 3/4", Gr 8

SCREW cap, ferry hd, 3/8 x 1-1/2" NC

2шт.

9

92-6

LOCK WASHER,3/8"

28шт.

10

195-25

WASHER,3/8"

32шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
