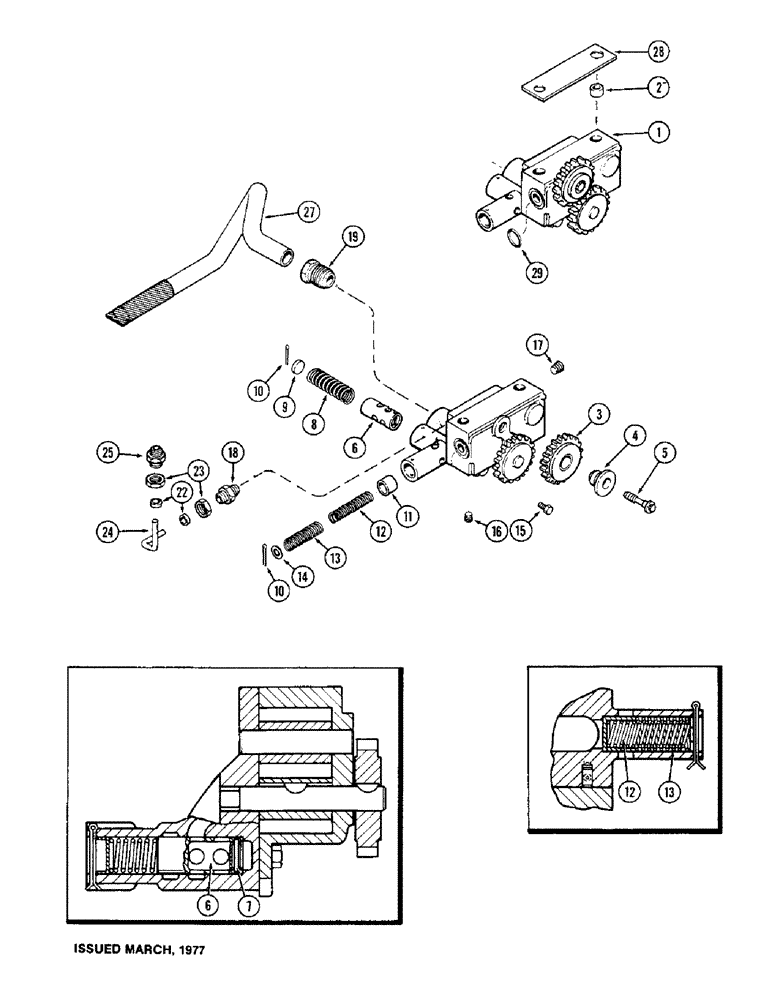

Запчасти Case IH 1570 (034) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A152998

PUMP

ASSY lube oil, Gallery regulated, Replaces A140444, Includes Ref. 2 - 18

1шт.

2

A58915

SLEEVE

body

1шт.

3

A63941

GEAR WHEEL

GEAR idler

1шт.

4

A63944

SHAFT

idler gear

1шт.

5

A63945

12 PT SCREW

BOLT idler gear

1шт.

6

A75286

VALVE

ASSY relief, oil pressure, Includes Ref. 7

1шт.

7

138-2063

PIN,3/32" x 1", Coiled

see inset 3/32" x 1", Coiled

1шт.

8

A63949

SPRING

relief valve

1шт.

9

41-1016

PLUG,Cup, 1"

Cup, 1"

1шт.

10

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), 3/32" x 1 3/4"

2шт.

11

A76152

VALVE

safety, pressure relief

1шт.

12

A76154

SPRING

inner, 3-7/64" free length

1шт.

13

A76153

SPRING

outer, 2-7/16" free length

1шт.

15

195-25

WASHER,3/8"

1шт.

15

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

socket hd, 1/16" PT

3шт.

17

221-843

PLUG,Hex Soc, 3/8"-18

socket hd, 3/8" PT

1шт.

18

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR tube, 1/4" tube x 1/8" PT

1шт.

19

A142004

CONNECTOR, ELEC

NUT suction, Serial Range: tube-pump

1шт.

22

222-153

SLEEVE,1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT, for 1/4" tube

2шт.

24

A75290

TUBE

sensing, oil gallery

1шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR, 1/4" tube x 1/8" PT

1шт.

27

A142449

TUBE

oil suction, Includes screen

1шт.

28

A58859

SHIM,.005" Thk

Mounting .005" Thk

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

oil port, 15/16 x 1-1/8 x 1/8"

1шт.
