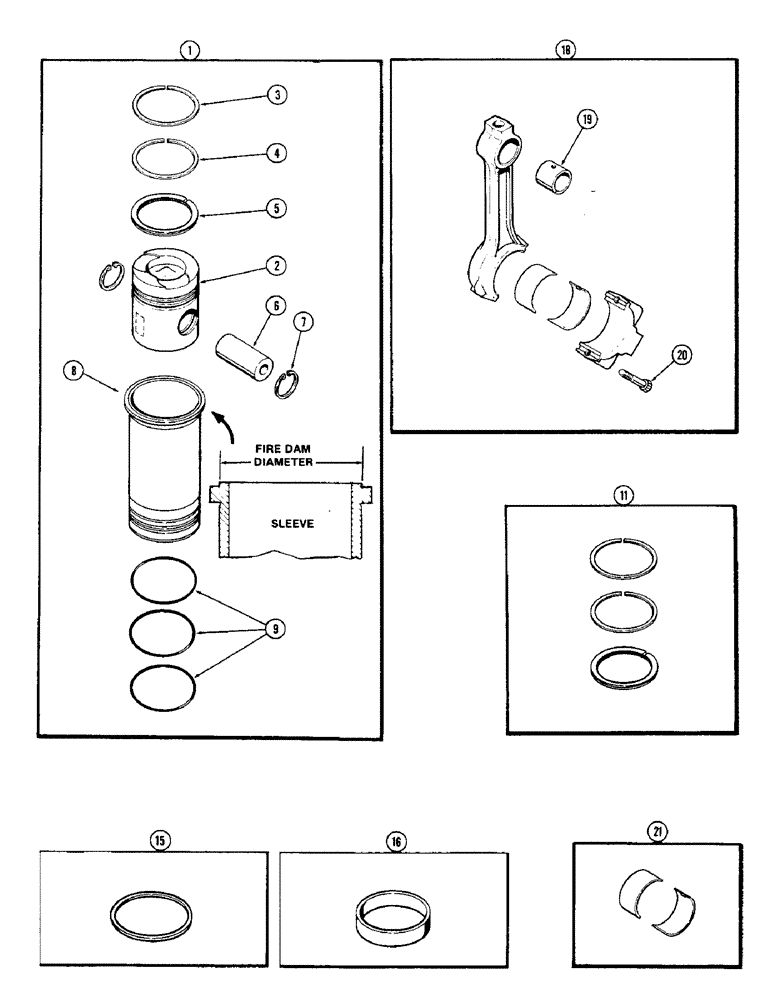

Запчасти Case IH 1570 (032) - PISTONS AND SLEEVES, WITH 5.189 INCH TO 5.194 INCH FIRE DAM DIAMETER SLEEVE, 504BDT DIESEL ENGINE (02) - ENGINE

1

A152177

SET

PISTON AND SLEEVE ASSEMBLY engine, Set of 2, Includes Ref. 2 - 9

3шт.

2

A146697

PISTON

PISTON cylinder, 4-5/8" bore, 107.47 MM

2шт.

3

NSS

NOT SOLD SEPARAT

RING compression, top groove, Order Ref. 11

2шт.

4

NSS

NOT SOLD SEPARAT

RING compression, 2nd groove, Order Ref. 11

2шт.

5

NSS

NOT SOLD SEPARAT

RING oil control, 3rd groove, Order Ref. 11

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE piston, 3 groove

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE piston, 2 groove, Order 3 groove sleeve A153638

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

0-RING sleeve

6шт.

11

A44054

RING

KIT piston ring, Set of 1

6шт.

15

A148553

SHIM

SHIM sleeve, 0.010", 0.254 MM, Repairs only

1шт.

15

A148554

SHIM

SHIM sleeve, 0.005", 0.127 MM, Repairs only

1шт.

16

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING sleeve, Repairs only

1шт.

A150328

ADHESIVE

LOCTITE tube, Not shown

1шт.

18

A65032

ROD

ROD ASSEMBLY connecting, Includes Ref. 19 and 20

6шт.

18

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

18

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

6шт.

19

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING piston pin, connecting rod

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT connecting rod cap

2шт.

21

A41758

BEARING LINER

INSERT connecting rod bearing, Standard, Set of 2

6шт.

21

A41899

BEARING LINER

INSERT connecting rod bearing, 0.002", 0.051 MM undersize, Set of 2

6шт.

21

A41900

BEARING LINER

INSERT connecting rod bearing, 0.010", 0.254 MM undersize, Set of 2

6шт.

21

A41901

BEARING LINER

INSERT connecting rod bearing, 0.020", 0.508 MM undersize, Set of 2

6шт.

21

A41902

BEARING LINER

INSERT connecting rod bearing, 0.030", 0.762 MM undersize, Set of 2

6шт.
