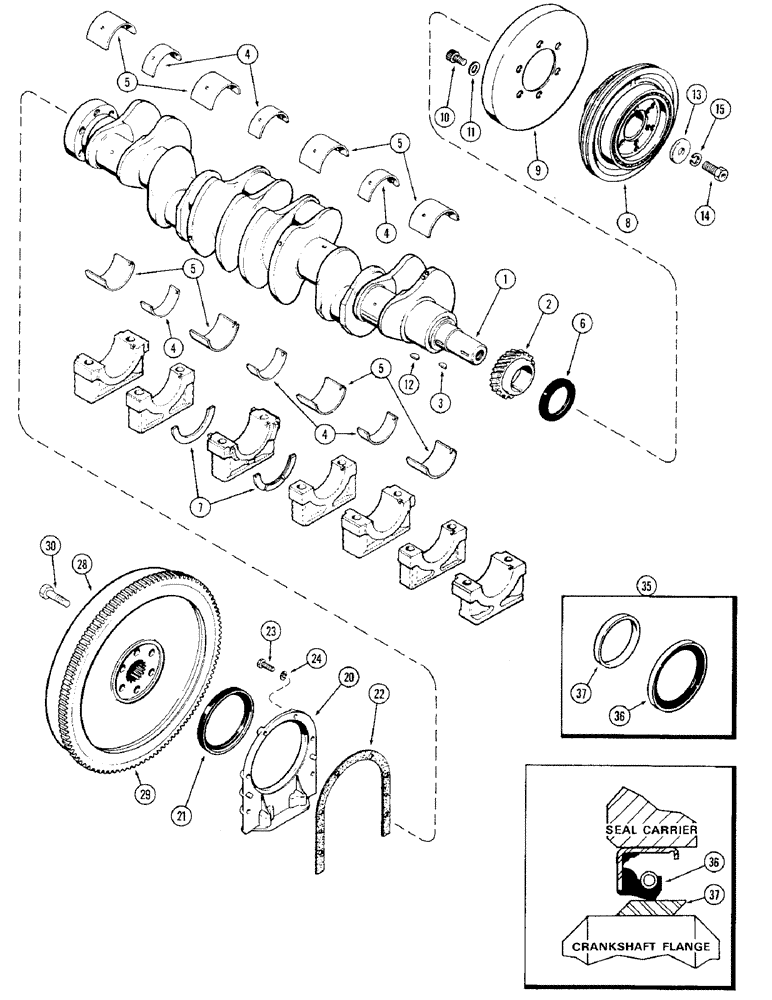

Запчасти Case IH 1570 (030) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

ASSY, Replaces A66728, Includes Ref. 2 and 3

1шт.

2

A66404

GEAR

crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A43089

BEARING LINER

LINER KIT main bearing, narrow, Standard, Set of 2

3шт.

4

A43120

LINING

LINER KIT main bearing, narrow, -.002", Set of 2

3шт.

4

A43121

SET OF CONN ROD BRGS STD

LINER KIT main bearing, narrow, -.010", Set of 2

3шт.

4

A43122

LINING

LINER KIT main bearing, narrow, -.020", Set of 2

3шт.

4

A43123

SET OF CONN ROD BRGS STD

LINER KIT main bearing, narrow, -.030", Set of 2

3шт.

5

A43090

BEARING LINER

LINER KIT main bearing, wide, Standard, Set of 2

4шт.

5

A43124

LINING

LINER KIT main bearing, wide, -.002", Set of 2

4шт.

5

A43125

CRANKSHAFT BEARING

LINER KIT main bearing, wide, -.010", Set of 2

4шт.

5

A43126

LINING

LINER KIT main bearing, wide, -.020", Set of 2

4шт.

5

A43127

LINING

LINER KIT main bearing, wide, -.030", Set of 2

4шт.

6

A62049

OIL SEAL

oil, front, 2-5/8 x 3-5/8 x 1/2"

1шт.

7

A58565

WASHER

thrust, center bearing, Standard, 0.157"

2шт.

7

A42447

WASHER

thrust, center bearing, Oversize, 0.163"

2шт.

8

A148977

X

PULLEY fan drive, without timing marks, 1st used engine Serial No. 10095063

1шт.

8

A66133

PULLEY

fan drive, with timing marks, Used prior to engine Serial No. 10095063

1шт.

9

A150029

DAMPER

pulley, viscous, with timing marks, 1st used engine Serial No. 10095063

1шт.

9

A66134

SHOCK ABSORBER

DAMPER pulley, viscous, without timing marks, Used prior to engine Serial No. 10095063

1шт.

10

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW flanged head, damper to pulley, 1/2 x 1-1/2" NC, 12 PT

6шт.

11

L30674

WASHER

damper screw, 1/2 x 1 x 1/8"

6шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

13

A27903

WASHER

pulley, 5/8 x 2-1/8 x 3/8"

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley retaining Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

rear oil seal

1шт.

21

A62050

OIL SEAL

oil, rear, 4-3/4 x 5-3/4 x 1/2", See Ref. 35

1шт.

22

A32830

GASKET

rear oil seal retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

28

A66611

FLYWHEEL

ASSY, Includes Ref. 29

1шт.

29

A58778

GEAR

ring, starter

1шт.

30

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

hex, flywheel to crankshaft, 5/8 x 1-3/4" NF

6шт.

35

A43194

KIT

oil wear seal, crankshaft, rear, Includes Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL oil, rear, 4-7/8 x 5-3/4 x 1/2", water kit

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE wear, 4-3/4" x 4-7/8 x 9/16", water seal kit

1шт.
