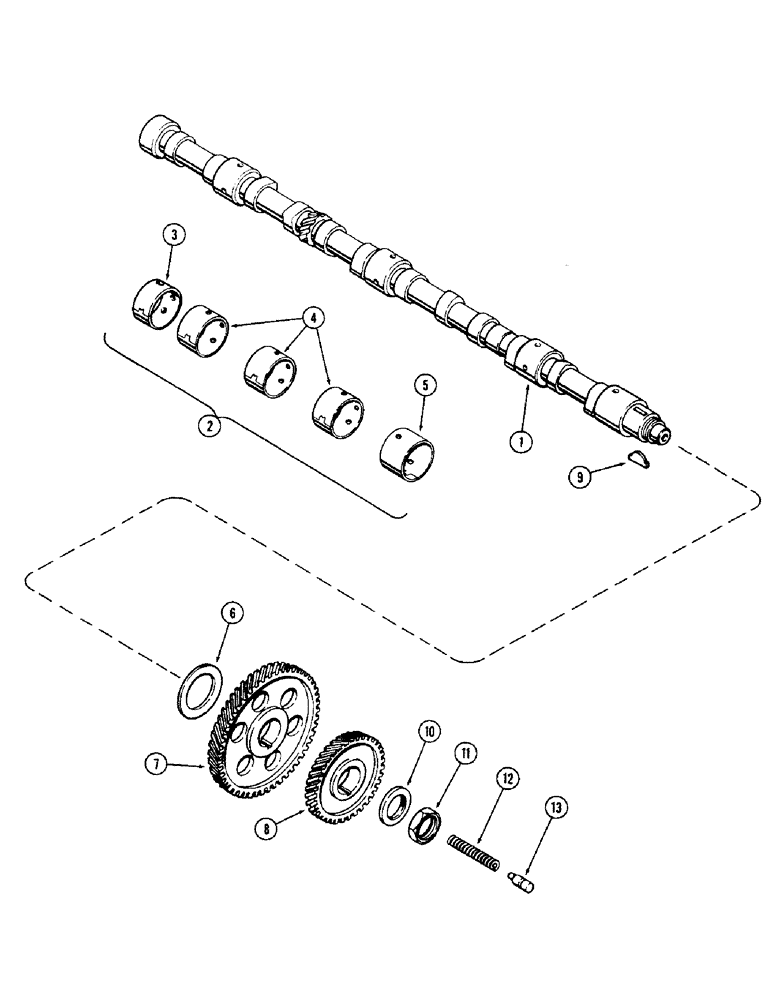

Запчасти Case IH 1570 (026) - CAMSHAFT, 504BDT DIESEL ENGINE (02) - ENGINE

1

A66124

CAMSHAFT

engine

1шт.

2

A23544

BUSHING

KIT bushing, camshaft, Set of 5, Includes Ref. 3, 4 and 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING camshaft, rear, 1-5/32" wide

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING camshaft, intermediate, 1-7/16" wide

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING camshaft, front, 1-21/32" wide

1шт.

6

A21017

WASHER

camshaft thrust

1шт.

7

A58592

GEAR

camshaft

1шт.

8

A58593

GEAR

idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY hi-pro, gear to camshaft, 5/16 x 1-5/16"

1шт.

10

A31038

THRUST WASHER

lock, camshaft nut

1шт.

11

A58595

NUT

camshaft

1шт.

12

A27853

SPRING

plunger, camshaft thrust

1шт.

13

A27852

PLUNGER

thrust, camshaft

1шт.
