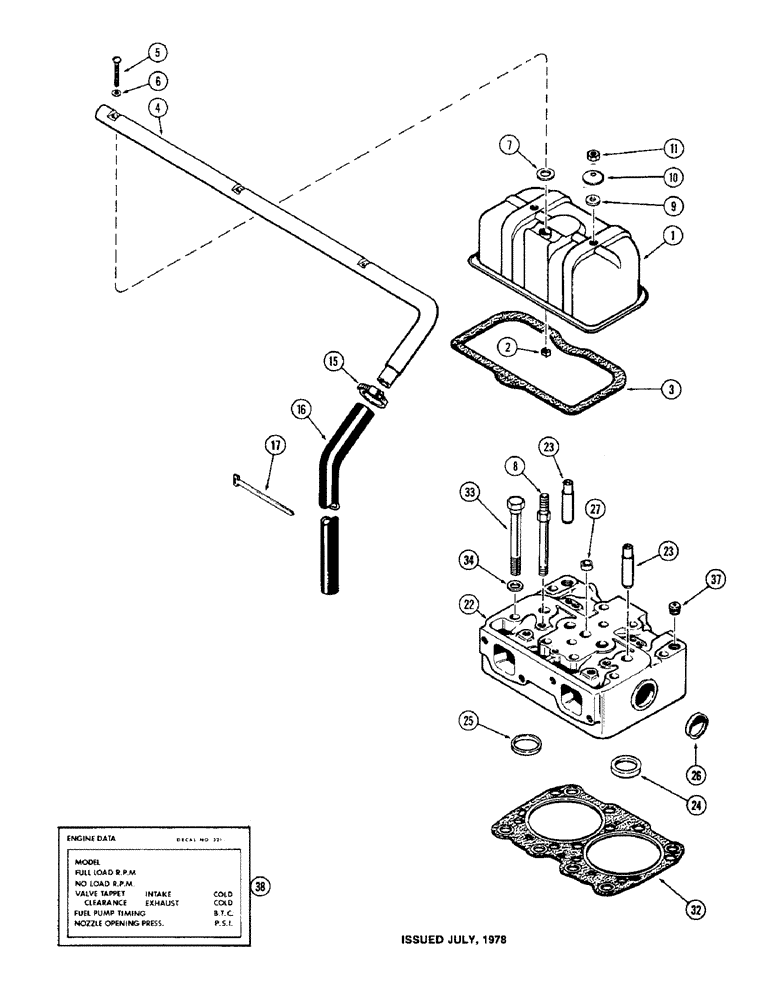

Запчасти Case IH 1570 (022) - CYLINDER HEAD AND COVER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY cylinder head, Includes Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT, Tinnerman, 1/4" NC

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET, Serial Range: cover-head

3шт.

4

A66640

TUBE

TUBE breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 2 1/2", G5

3шт.

6

A34133

GASKET

GASKET tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET, Serial Range: tube-cover

3шт.

8

A67121

STUD

STUD head and cover, 7/16" NC

6шт.

9

A23684

GASKET

GASKET cover stud

6шт.

10

A23683

WASHER

WASHER dished, cover stud

6шт.

11

25-107

NUT,7/16"-14, G5

NUT hex, stud, 7/16" NC

6шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose, 1-3/16" to 1-3/4"

1шт.

16

A66132

HOSE

HOSE breather

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP STRAP nylon, breather hose

1шт.

22

A138261

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, Casting No. A138337, Includes Ref. 23 - 27

3шт.

22

AR152265

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

22

AC152265

CORE-CYLINDER HEAD

Return Number

3шт.

23

A41783

GUIDE

GUIDE intake and exhaust valves

4шт.

24

A66192

INSERT

INSERT exhaust valve seat

2шт.

25

A66191

INSERT

INSERT intake valve seat

2шт.

26

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG end, 1-5/8" cup

2шт.

27

A58620

PLUG,Cup, 3/4", Stainless

PLUG top, 3/4" cup

3шт.

32

A138397

CYLINDER HEAD GASKET

GASKET cylinder head to block, with fire rings, See Figure 036

3шт.

33

A76638

BOLT

BOLT hex, head to block, 5/8 x 6" NC

30шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER bolt head

30шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

PLUG socket hd, 3/8" PT

5шт.

38

321-3972

DECAL

DECAL engine data

1шт.
