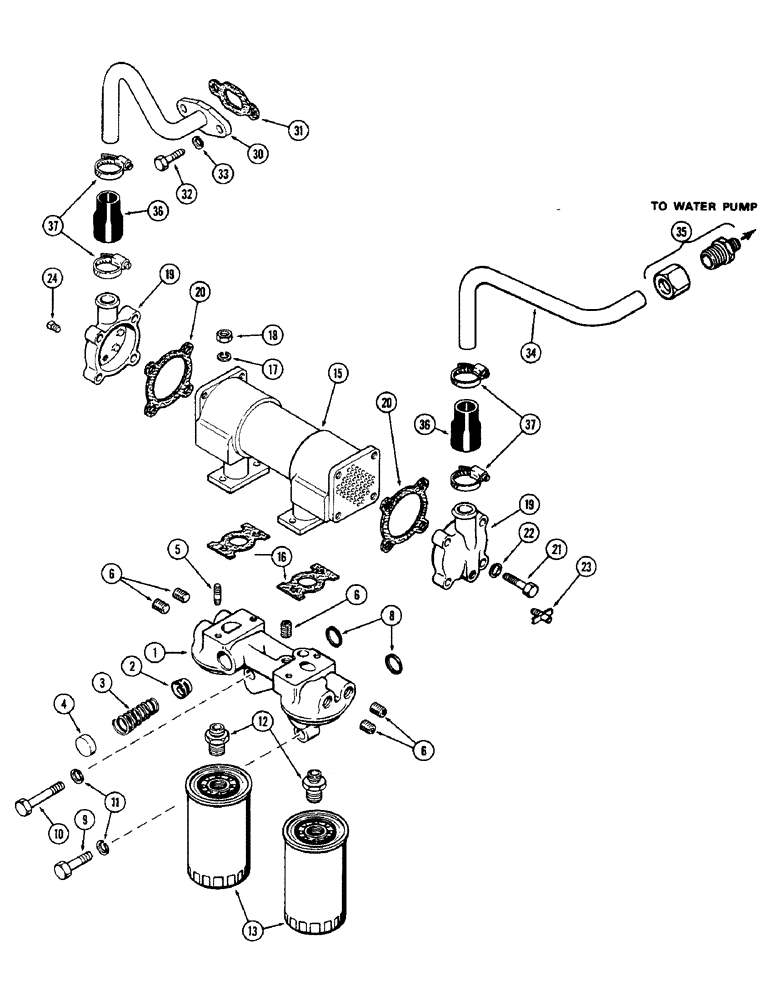

Запчасти Case IH 1570 (020) - OIL FILTER AND HEAT EXCHANGER, 504BDT DIESEL ENGINE (02) - ENGINE

1

A64107

BASE

ASSY oil filter, Includes Ref. 2 - 6

1шт.

2

A21090

VALVE

relief, filter

1шт.

3

A58669

SPRING

relief valve, 2-13/16" free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

cup type, 1-1/4"

1шт.

5

G11204

STUD

3/8" NC x 1-1/2"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

sq. sckt. hd., 1/2" P.T.

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

1-1/8 x 1-5/16 x 3/16"

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 x 3" NC

1шт.

11

195-33

WASHER,1/2"

1/2 x 1-1/16 x 1/8"

2шт.

12

A63916

ADAPTER

, Serial Range: element-base

2шт.

13

A75294

ENGINE OIL FILTER

ELEMENT filter, oil, Production only, 6-7/8" long, Order A44081

2шт.

13

A44081

ENGINE OIL FILTER

ELEMENT filter, oil, Service only, 8-5/8" long, Used in place of A75294 this application only

2шт.

15

A75295

OIL COOLER

EXCHANGER oil heat

1шт.

16

A65359

GASKET

heat exchanger to filter base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

4шт.

18

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

4шт.

19

A64349

HOOD

BONNET heat exchanger ends

2шт.

20

A63920

GASKET

bonnet

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 x 1-1/2" NC

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

DRAINCOCK heat exchanger

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

sq. hd, 1/8" PT

1шт.

30

A75296

TUBE

heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

tube

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

A75298

TUBE

heat exchanger to water pump

1шт.

35

222-2020

FITTING

CONNECTOR ASSY, 1" tube, 3/4" PT

1шт.

36

A64353

HOSE

bonnets to water tubes

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose, 1-3/16" to 1-3/4"

4шт.
