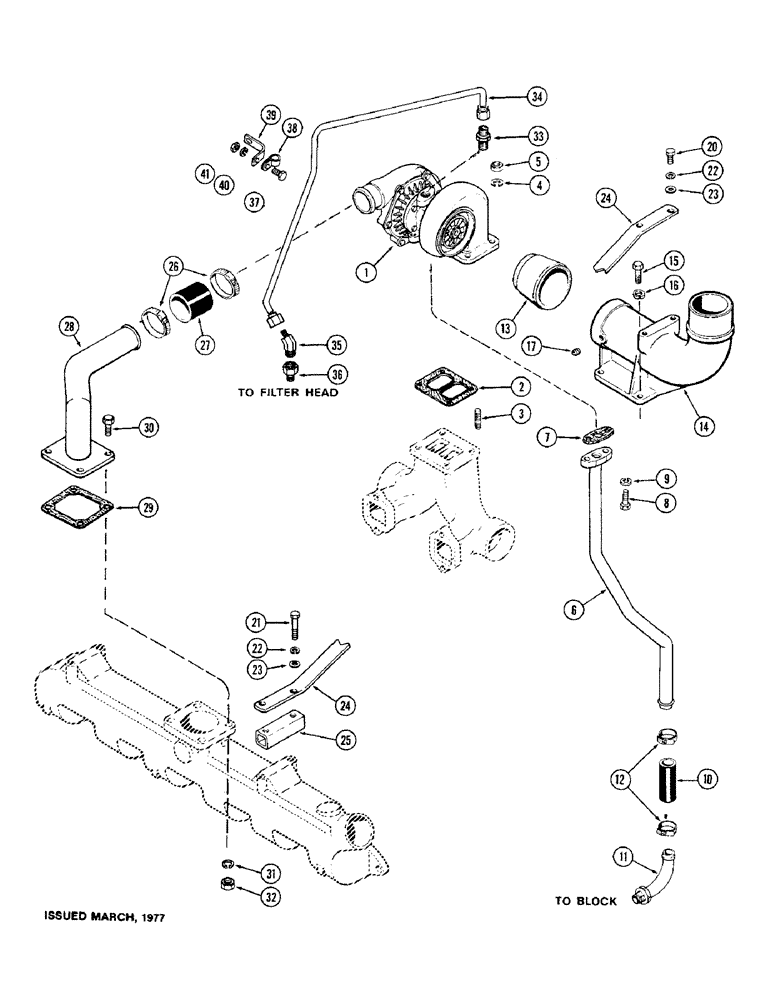

Запчасти Case IH 1570 (016) - TURBO-CHARGER SYSTEM, 504BDT DIESEL ENGINE (02) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

1570, 1570 ("SPIRIT OF '76" OPTION)

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, Turbocharger, See Figure 018

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET, Serial Range: turbo-manifold

1шт.

3

G11204

STUD

STUD turbo to manifold, 3/8" NC x 1-1/2"

4шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT hex, seezpruf, 3/8" NC

4шт.

6

A62518

TUBE

TUBE oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

GASKET oil drain tube

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT hex, 3/8 x 1" NC

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

10

A58893

HOSE

HOSE drain fitting

1шт.

11

A58897

FITTING

FITTING drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose, 1-3/16" to 1-3/4"

2шт.

13

A65554

TUBE

CONNECTOR exhaust elbow

1шт.

14

A61941

ELBOW

ELBOW exhaust, turbocharger

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

17

221-12

PLUG,Sq Hd, 1/4"-18

PLUG pipe, sq. hd., 1/4"

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT hex, 3/8 x 2-1/2" NC

2шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

23

95-6

WASHER,3/8"

WASHER, 7/16 x 1 x 5/64"

4шт.

24

A61944

BRACE

BRACE, Serial Range: elbow-manifold

1шт.

25

A67057

SPACER

SPACER brace to intake manifold

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

27

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

Elbow, Replaces A58894

1шт.

28

A150450

ELBOW

ELBOW intake manifold to turbo, Replaces A77242

1шт.

29

A58910

GASKET

GASKET, Serial Range: elbow-manifold

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT hex, 3/8 x 1-1/2" NE

4шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

NUT hex, 3/8" NC

4шт.

33

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR, 3/8" tube x 3/8" PT, Also use sleeve 222-154 and nut 222-114

1шт.

34

A166064

TUBE

TUBE lube oil, Serial Range: supply-turbo

1шт.

35

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

ELBOW 45 degree, 3/8" tube x 1/4" PT, Also use sleeve 222-154 and nut 222-114

1шт.

36

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

REDUCER, 3/8 x 1/4" PT

1шт.

37

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

38

49845

CLAMP

CLIP oil supply tube

1шт.

39

A75301

BRACKET

BRACKET tube to manifold stud

1шт.

40

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

41

25-106

NUT,3/8"-16, G5

NUT hex, 3/8" NC

1шт.
