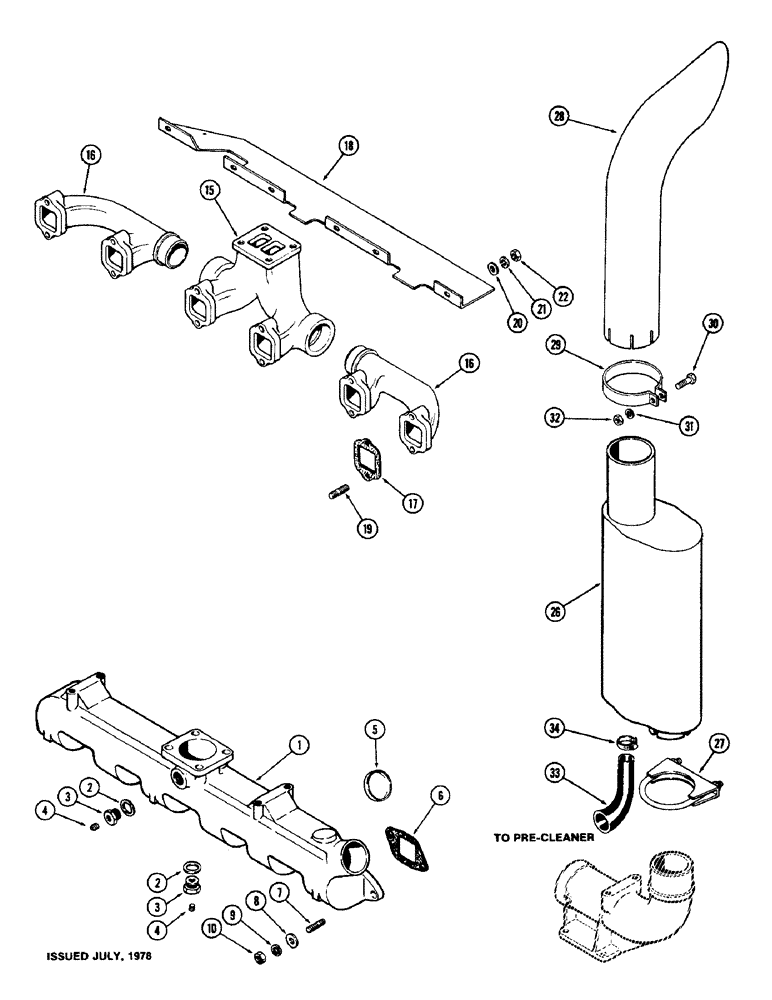

Запчасти Case IH 1570 (014) - MANIFOLDS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A66087

MANIFOLD

ASSY intake, Includes Ref. 2 - 5

1шт.

2

A20916

MANIFOLD GASKET

GASKET heater hole plug, intake manifold

1шт.

3

L10283

PLUG

heater hole, intake manifold

1шт.

4

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG square head, 1/8" PT, intake manifold

1шт.

5

41-1042

PLUG,Cup, 2 5/8"

cup type, 2-5/8", intake manifold

1шт.

6

A58662

MANIFOLD GASKET

intake manifold

6шт.

7

A59077

STUD

intake manifold, 3/8" NC x 1-13/16"

12шт.

8

195-25

WASHER,3/8"

Intake manifold 3/8"

12шт.

9

92-6

LOCK WASHER,3/8"

intake manifold 3/8"

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

hex, 3/8" NC, intake manifold

12шт.

15

A76322

MANIFOLD

exhaust, center

1шт.

16

A65917

MANIFOLD

exhaust, ends

2шт.

17

A58895

GASKET

exhaust manifold

6шт.

18

A76351

GUARD

SHIELD heat, exhaust manifold

1шт.

19

A140924

STUD

exhaust manifold, 3/8" NC x 2-5/8"

12шт.

20

195-25

WASHER,3/8"

Exhaust manifold 3/8"

12шт.

21

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

12шт.

22

131-903

NUT,3/8"-16

NUT hex, seezpruf, 3/8" NC, exhaust manifold

12шт.

26

A135881

MUFFLER

1шт.

27

A17851

CLAMP

muffler to exhaust elbow

1шт.

28

A76060

MUFFLER

EXTENSION exhaust, muffler

1шт.

29

A76061

CLAMP

exhaust, Serial Range: extension-muffler

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Clamp, muffler Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Muffler 3/8"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Muffler 3/8"-16, G5

1шт.

33

A137681

HOSE,1.00" ID, 1.50" ID x 5.00", SAE 20A 810

- Aspirator, To pre-cleaner, Muffler 1.00" ID, 1.50" ID x 5.00", SAE 20A 810

1шт.

34

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

muffler #28, 1.31/2.25 Type F Worm

2шт.
