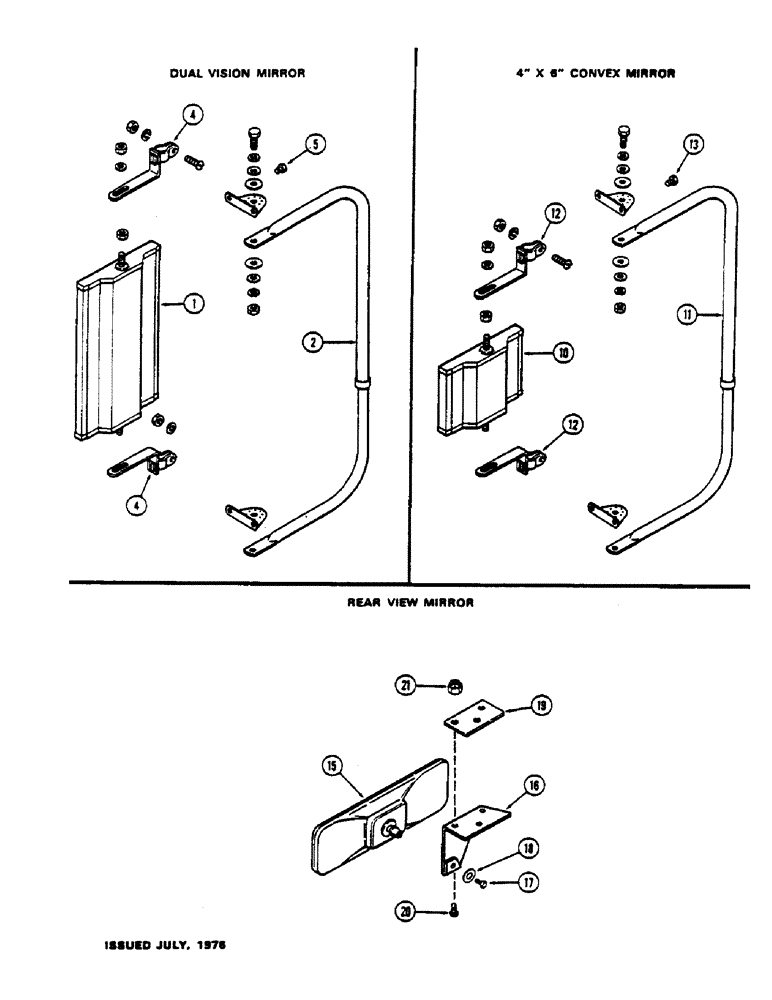

Запчасти Case IH 1570 (316) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

mirror, machine item, Includes Ref. 1 - 5

1шт.

1

A42765

MIRROR

dual vision

1шт.

2

A42764

BRACKET

mirror swing-away

1шт.

4

A42767

ADAPTER

mirror bracket, Replaces A42766

2шт.

5

187-1009

BOLT

hex, shakeproof, 1/4 x 3/8"

4шт.

A61897

KIT

ATTACHMENT mirror, machine item, Includes Ref.10 - 13, 4 x 6 convex

1шт.

10

A42768

MIRROR

4 x 6 convex

1шт.

11

A42764

BRACKET

mirror swing-away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

mirror bracket, 4 x 6 convex

2шт.

13

187-1009

BOLT

hex, shakeproof, 1/4 x 3/8", 4 x 6 convex

4шт.

F89785

MIRROR

ATTACHMENT inside rear view mirror, Includes Ref. 15 - 21

1шт.

15

F89695

MIRROR

rear view

1шт.

16

F63369

BRACKET

mounting

1шт.

17

163-18

SCREW,Hex, #10 - 24 x 3/8"

hex head, No. 10-24 x 3/8"

1шт.

18

195-511

WASHER,#10

3/16 x 1/2 x 1/16"

1шт.

19

F63381

PLATE

back-up, mirror

1шт.

20

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

round head, machine, No. 10-24 x 1/2"

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

3шт.
