Запчасти Case IH 1570 (313A) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER, HOSES AND TUBES (09) - CHASSIS/ATTACHMENTS

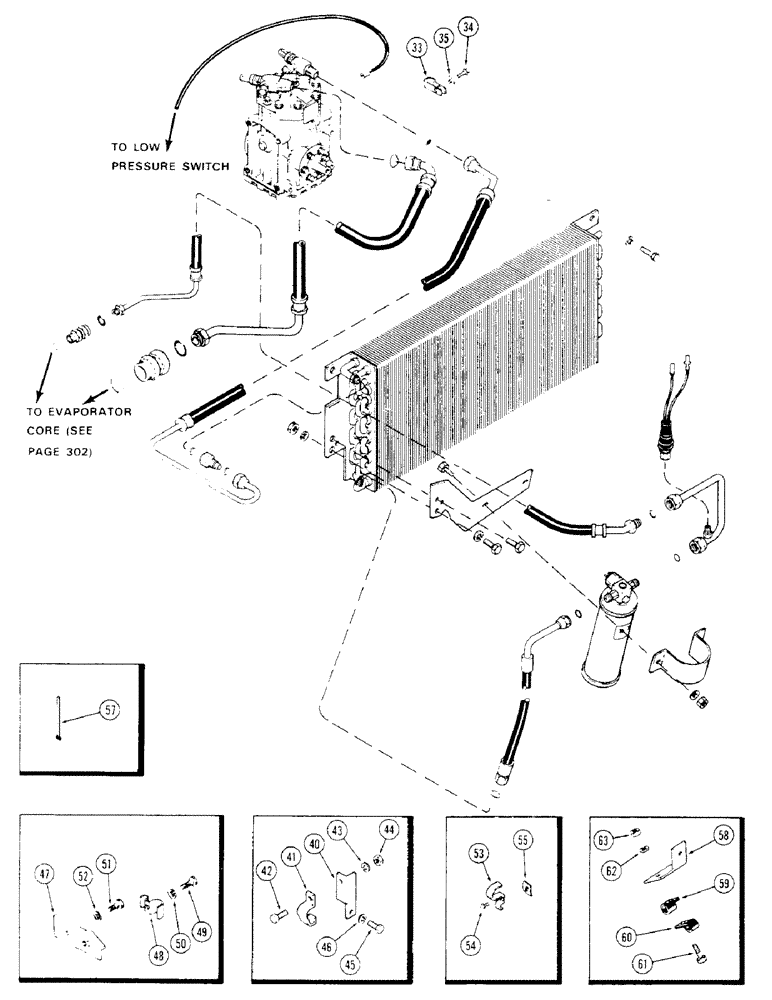

Схема запчастей Case IH 1570 - (313A) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER, HOSES AND TUBES (09) - CHASSIS/ATTACHMENTS
54
63
57
33
45
47
52
43
34
61
49
42
53
44
41
58
62
35
55
51
40
59
60
46
50
48

Артикул

Название

Примечание

Количество

33

A7922

CLIP

clutch wire

1шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 X 7/8" NC

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

40

A139834

BRACKET tube to radiator support

1шт.

41

A66257

CLIP

, Serial Range: tubes-bracket

1шт.

42

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

46

92-5

LOCK WASHER,5/16"

1шт.

47

A64397

BRACKET

hose to handle mounting

1шт.

48

A65787

CLIP

hose support, Serial Range: 3/4-1-1/8"

1шт.

49

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

52

92-6

LOCK WASHER,3/8"

1шт.

53

A66258

CLIP

hose to pre-cleaner bracket

1шт.

54

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

55

131-137

SPRING NUT,Ret, 5/16"-18

Tinnerman Ret, 5/16"-18

1шт.

57

L11541

CABLE TIE,203.2mm L, Nylon

STRAP nylon, wires and tubes

6шт.

58

A64398

BRACKET

tube mounting

1шт.

59

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLIP hose, 5/8"

1шт.

60

49845

CLAMP

CLIP hose, 3/8"

1шт.

61

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

62

92-6

LOCK WASHER,3/8"

1шт.

63

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

1шт.

Выбрано товаров: 26
