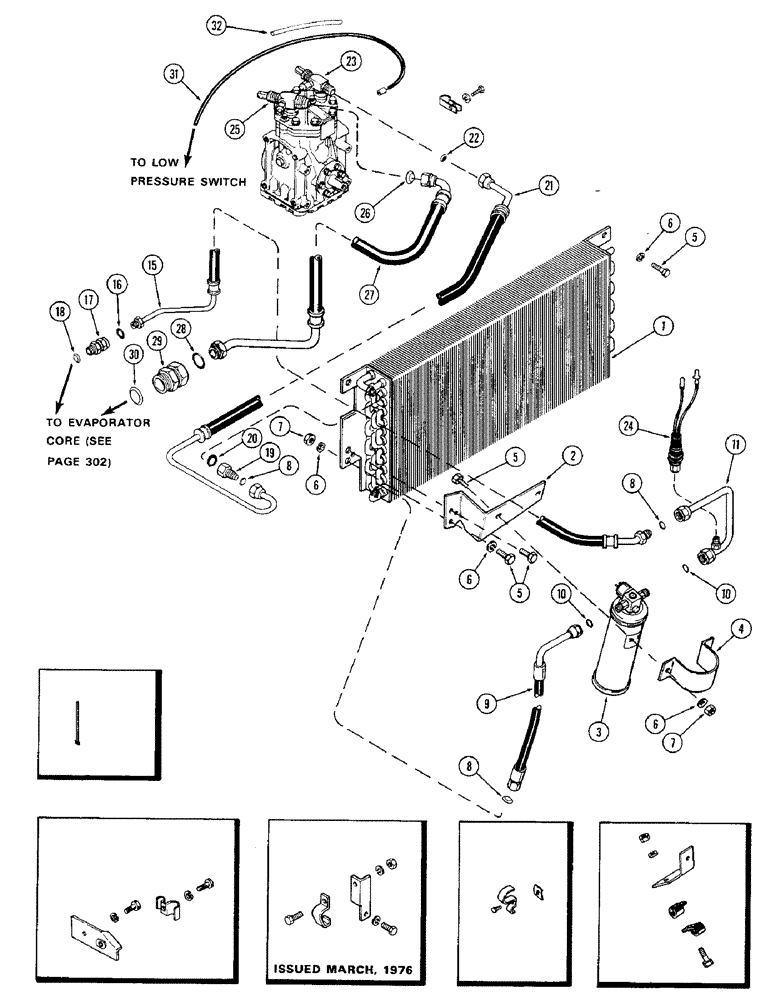

Запчасти Case IH 1570 (312) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A141441
CONDENSER
COIL condenser, Replaces A139830
1шт.
2
A76311
BRACKET receiver dryer
1шт.
3
A76312
RECEIVER-DRYER
RECEIVER dryer
1шт.
4
A76313
CLAMP
receiver, Serial Range: dryer-bracket
1шт.
5
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
8шт.
5
113-113
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Condenser to radiator support, R.H., lower Hex, 5/16"-18 x 7/8", G5, Full Thd
1шт.
6
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
9шт.
7
9635082
NUT,5/16" - 18, Gr 5
4шт.
8
222-993
GASKET,3/8 Tube, Fl, Copper
3шт.
9
A141409
HOSE
TUBE condenser to receiver dryer
1шт.
10
A61198
O-RING,0.07" Thk x 0.301" ID, -11
5/16 x 7/16 x 1/16"
2шт.
11
A139831
TUBE switch, high pressure
1шт.
15
A66251
HOSE
cab to receiver dryer
1шт.
16
A61195
O-RING,0.364" ID x 0.5" OD
3/8 x 1/2 x 1/16"
1шт.
17
A61196
COUPLING, BREAK AWAY
COUPLING ASSY tractor hose, Includes Ref. 18
1шт.
18
A42667
GASKET
coupling
1шт.
19
A139833
ADAPTER, 5/16" female to 3/8", 45 degrees flare
1шт.
20
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
adapter to coil, 3/8 x 9/16 x 3/32"
1шт.
21
A139832
HOSE
, Serial Range: condenser-compressor
1шт.
22
222-994
GASKET,1/2 Tube, Fl, Copper
copper, 1/2" ID x 45 degrees flare
1шт.
23
A42936
VALVE
ASSY rotolock, discharge, See Figure 314
1шт.
24
A65779
SWITCH
high pressure cut-off
1шт.
25
A42937
VALVE
ASSY rotolock, suction, See Figure 314
1шт.
26
222-995
SEALING WASHER,15.88mm ID
copper, 5/8" ID x 45 degrees flare
1шт.
27
A66256
HOSE
, Serial Range: cab-compressor
1шт.
28
A61197
O-RING,1.78mm Thk x 27mm ID
1-1/16 x 1-3/16 x 1/16"
1шт.
29
A61194
COUPLING, BREAK AWAY
COUPLING ASSY tractor tube, Includes Ref. 30
1шт.
30
A42668
GASKET
coupling
1шт.
31
A61755
ELECTRICAL WIRE
WIRE high pressure switch to clutch, 36"
1шт.
32
A62053
HARNESS
LOOM clutch wire
1шт.
Выбрано товаров: 30
