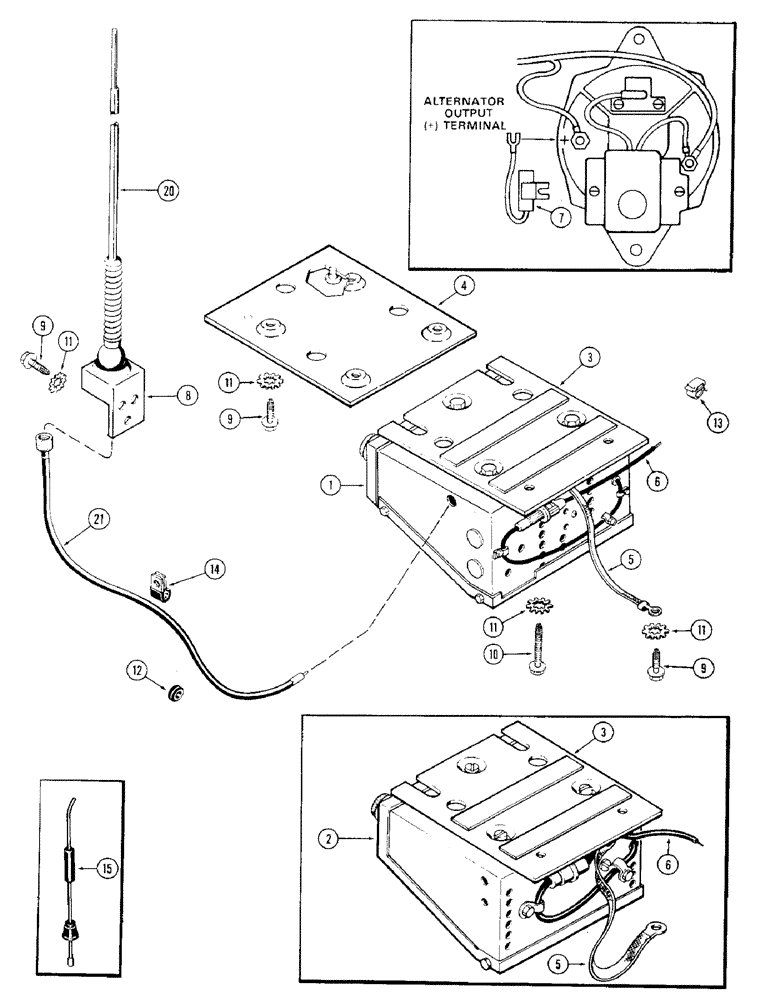

Запчасти Case IH 1570 (306) - CAB, RADIO (09) - CHASSIS/ATTACHMENTS

A62456

RADIO

KIT radio, AM only, For complete installation also order antenna kit

1шт.

A135619

RADIO

KIT radio, FM only, Includes Ref. 1 - 15, For complete installation also order antenna kit

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO AM-FM, with speaker

1шт.

2

NSS

NOT SOLD SEPARAT

RADIO AM, with speaker

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE radio mounting, with bolts

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE roof mounting adapter

1шт.

5

NSS

NOT SOLD SEPARAT

STRAP ground, 9-1/2" long

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE hot, lead-in, 60", Includes 5 amp fuse

1шт.

223-36

FUSE,2 Amp, Type 3AG

5 amp, 1-1/4" long

1шт.

7

NSS

NOT SOLD SEPARAT

CAPACITOR alternator

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET antenna mounting

1шт.

9

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW hex, washer head, self-tapping, 1/4 x 1/2"

6шт.

10

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW hex, washer head, self-tapping, 1/4 x 1"

2шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER int./ext. shakeproof, 1/4"

4шт.

12

A23870

GROMMET

rubber, 3/8" ID

1шт.

13

A62079

CLIP

radio wire

5шт.

14

A20541

CLIP

antenna lead-in

6шт.

15

NSS

NOT SOLD SEPARAT

SUPPRESSOR static, distributor, gas only

1шт.

A62457

ANTENNA

KIT radio antenna, Includes Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

ANTENNA

1шт.

21

NSS

NOT SOLD SEPARAT

CABLE lead-in, 84"

1шт.
