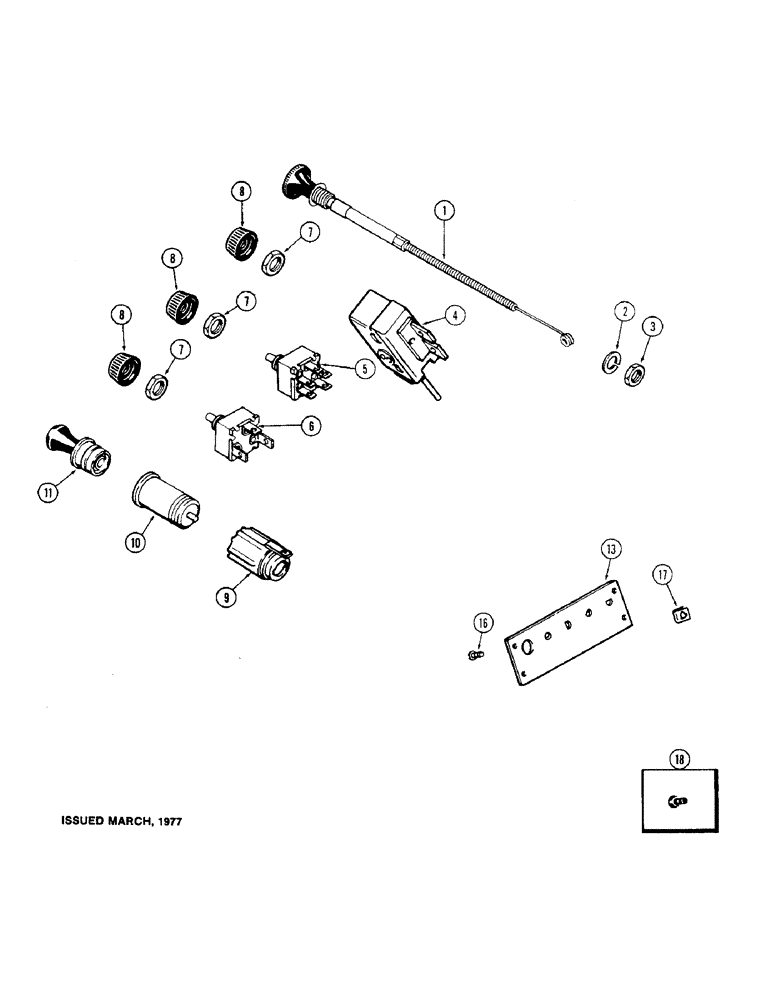

Запчасти Case IH 1570 (304) - CAB, CONTROLS AND PANEL (09) - CHASSIS/ATTACHMENTS

1

A42614

CABLE

heater control, Includes Ref. 2 and 3

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

129-148

JAM NUT,Jam, 3/4"-10, G5

jam, hex, 3/4" NC

1шт.

4

A42623

CONTROL

cab temperature

1шт.

5

A42622

SWITCH

blower control

1шт.

6

F63532

SWITCH

wiper motor

1шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

jam, hex, control mounting, 7/16" NF

3шт.

8

A42578

KNOB

control

3шт.

9

F63738

CIGAR LIGHTER

SHELL clamping, cigar lighter

1шт.

10

F63530

SOCKET/RECEPTACLE

SOCKET cigar lighter

1шт.

11

A143340

SWITCH

ELEMENT push-in, lighter

1шт.

13

F63868

DECAL

PANEL control, decal imprinted

4шт.

16

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

Phillips head, 10-24 x 3/4"

4шт.

17

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

18

353-402

PLUG,Dome, .375" hole, Nylon

1шт.
