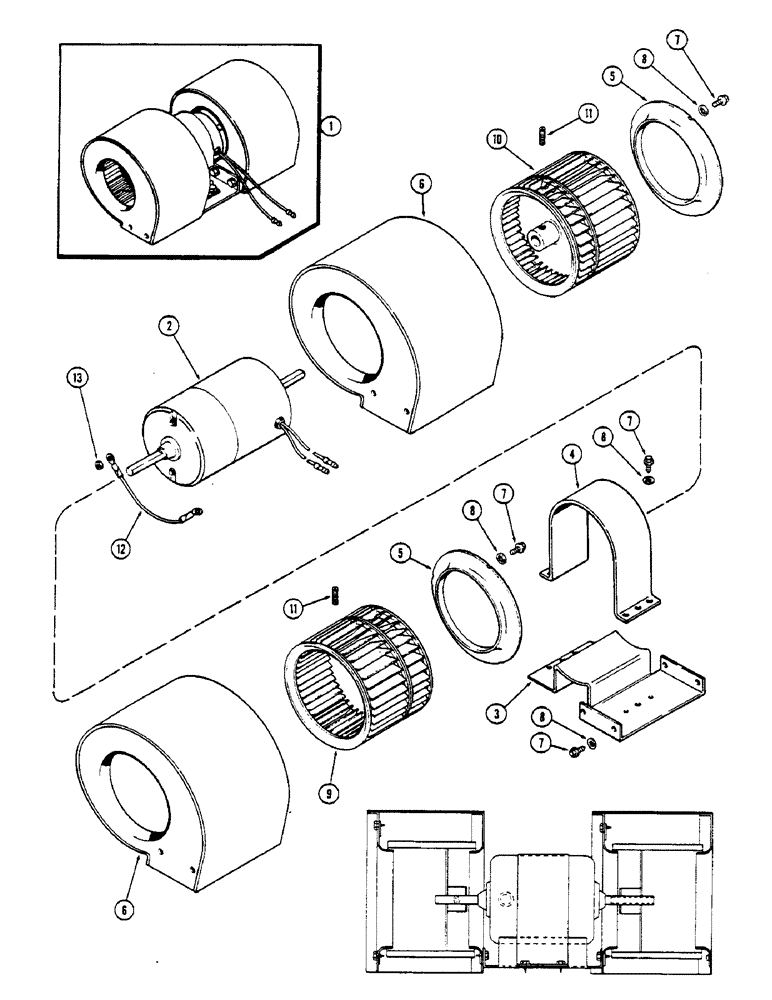

Запчасти Case IH 1570 (294) - CAB, BLOWER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

BLOWER ASSY cab air, Not available as an assembled unit, Includes Ref. 2 - 13

1шт.

2

F89750

MOTOR, ELECTRIC

MOTOR blower

1шт.

3

F63652

MOTOR, ELECTRIC

MOUNT motor

1шт.

4

F63650

CLAMP

motor

1шт.

5

F63655

RETAINER

EYE inlet

2шт.

6

F89797

HOUSING

blower

2шт.

7

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW hex, slotted washer head, No. 10-16 x 1/2"

13шт.

8

193-6

LOCK WASHER,Ext Tooth, #10

WASHER int shakeproof, No. 10

13шт.

9

A42568

WHEEL

blower, L.H.

1шт.

10

A42569

BLOWER,Fan, RH

blower, R.H.

1шт.

11

84-410

SET SCREW,Hex Soc, 1/4"-28 x 5/8"

SCREW set, headless, socket cup pt, 1/4" NF

2шт.

12

F64055

CABLE

WIRE motor to ground, 6" black

1шт.

13

129-37

NUT,#10-32

1шт.
