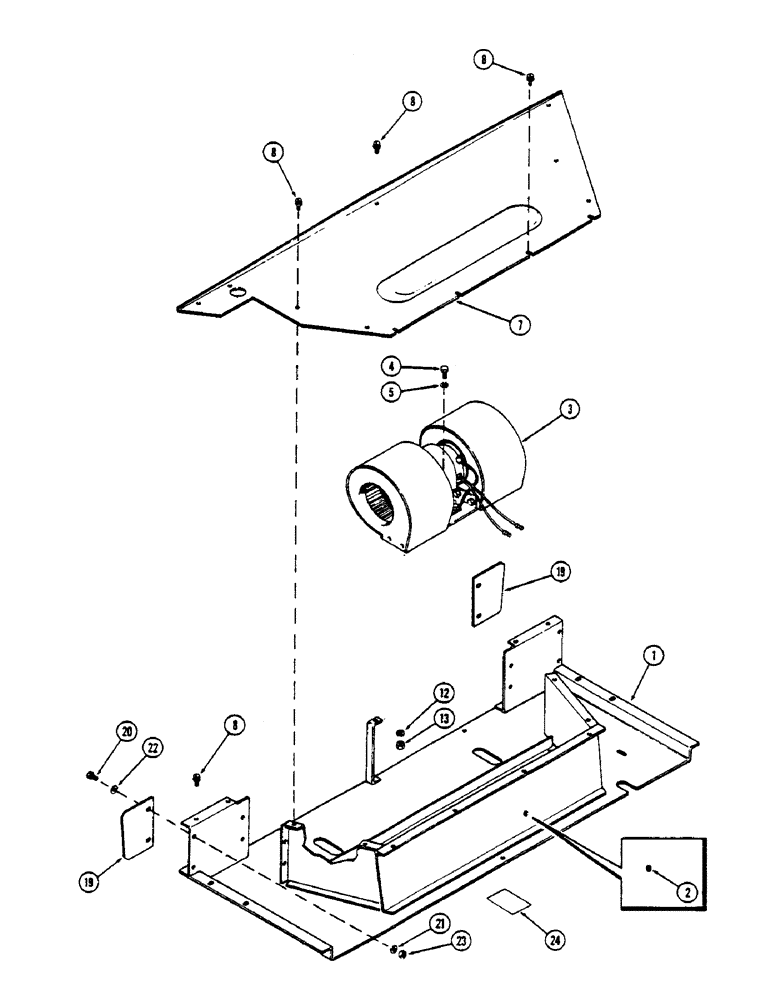

Запчасти Case IH 1570 (292) - CAB, PLENUM (09) - CHASSIS/ATTACHMENTS

1

F89840

HEATER

PLENUM cab

1шт.

2

A42502

GROMMET

blower wire

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY cab air, See Figure 294

1шт.

4

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW hex, slotted washer head, No. 10-24 x 1/2"

4шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER int., shakeproof, No. 10

4шт.

7

F63745

HEATER

COVER plenum

1шт.

8

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW hex, slotted washer head, No. 10-16 x 1/2"

13шт.

12

195-511

WASHER,#10

13/64 x 15/32 x 1/16"

1шт.

13

129-17

NUT,Hex, #10 - 24

NUT hex, 10-24

1шт.

19

F63250

SEAL

, Serial Range: plenum-cab

2шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

22

195-518

WASHER,1/4", SAE

9/32 x 5/8 x 1/16"

4шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

24

345-38

TAPE drip pan holes, 7-1/2" long, Serial Range: cut-size

1шт.
