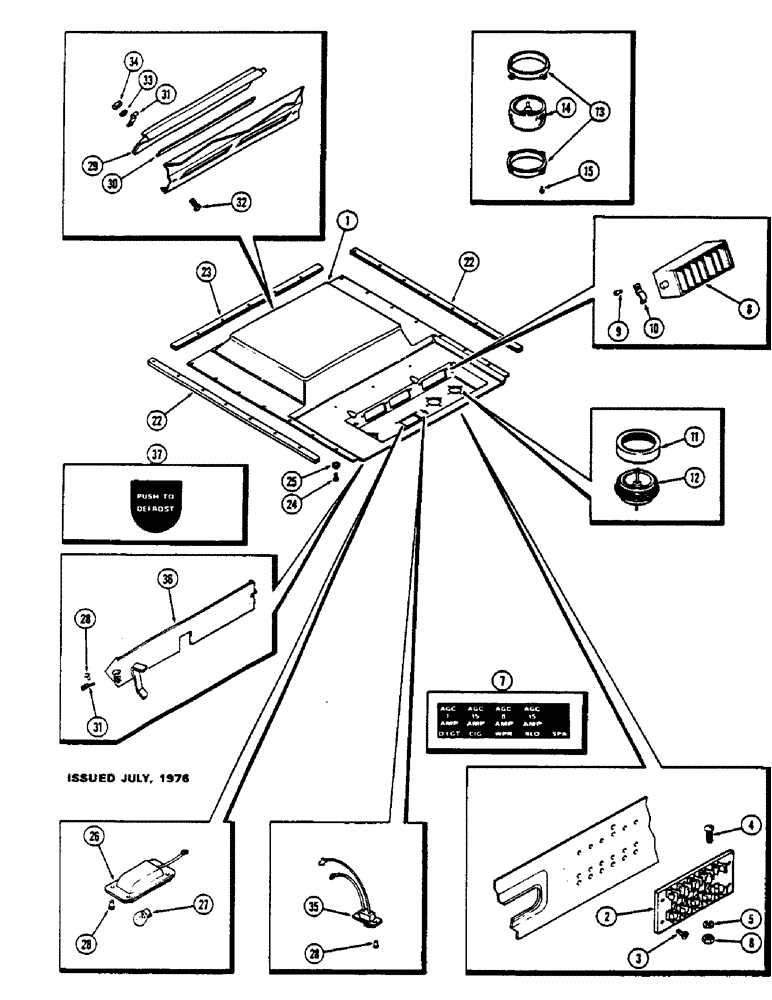

Запчасти Case IH 1570 (290) - CAB, HEADLINER AND LOUVERS (09) - CHASSIS/ATTACHMENTS

1

F64112

LINING

HEADLINER cab

1шт.

2

F63858

BLOCK

fuse

1шт.

3

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW self-tapping, round head Phillips, No. 8-15 x 5/8"

4шт.

4

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

round head, No. 5-40 x 1/2" NC

1шт.

5

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

6

129-630

NUT,#5-40, Brass

hex, No.5-40

1шт.

7

321-2738

DECAL

fuse block

1шт.

8

F89673

GUARD

LOUVER air deflection

2шт.

9

151-526

RIVET,Pop, 1/8" x .337"

4шт.

10

A42575

CLIP

mounting

6шт.

11

F64131

RING

louver retaining, Replaces F63776

3шт.

12

F64132

GUARD

BALL louver, Replaces F63777

3шт.

13

F63776

FRAME

ball louver, Order F64131 and F64132

6шт.

14

F63777

BALL

LOUVER ball, Order F64131 and F64132

3шт.

15

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW self-tapping, round head Philips, No. 8-15 x 5/8"

12шт.

22

F63800

MOLDING

TRIM side, headliner

2шт.

23

F63799

MOLDING

TRIM rear, headliner

1шт.

24

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW self-tapping, oval head, 10-16 x 3/4"

19шт.

25

F63765

WASHER

finishing

19шт.

26

F89772

LAMP

LIGHT ASSY dome, Includes Ref. 27

1шт.

27

B50217

BULB

dome light

1шт.

28

151-526

RIVET,Pop, 1/8" x .337"

8шт.

29

F89764

FLAP

VALVE pressure adjusting

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL valve, 11", Order A42905

1шт.

A42905

FOAM

SEAL valve, 50 ft roll

1шт.

31

F63810

CLIP

valve hinge

2шт.

32

163-11

SCREW,Hex, #10 - 24 x 9/16"

hex, No. 10-24 x 9/16"

2шт.

33

195-511

WASHER,#10

13/64 x 15/32 x 3/64"

2шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.

35

F63760

SWITCH

dome light

1шт.

36

F89893

BRACKET

DOOR ASSY defroster

1шт.

37

321-2995

DECAL

defroster door level

1шт.
