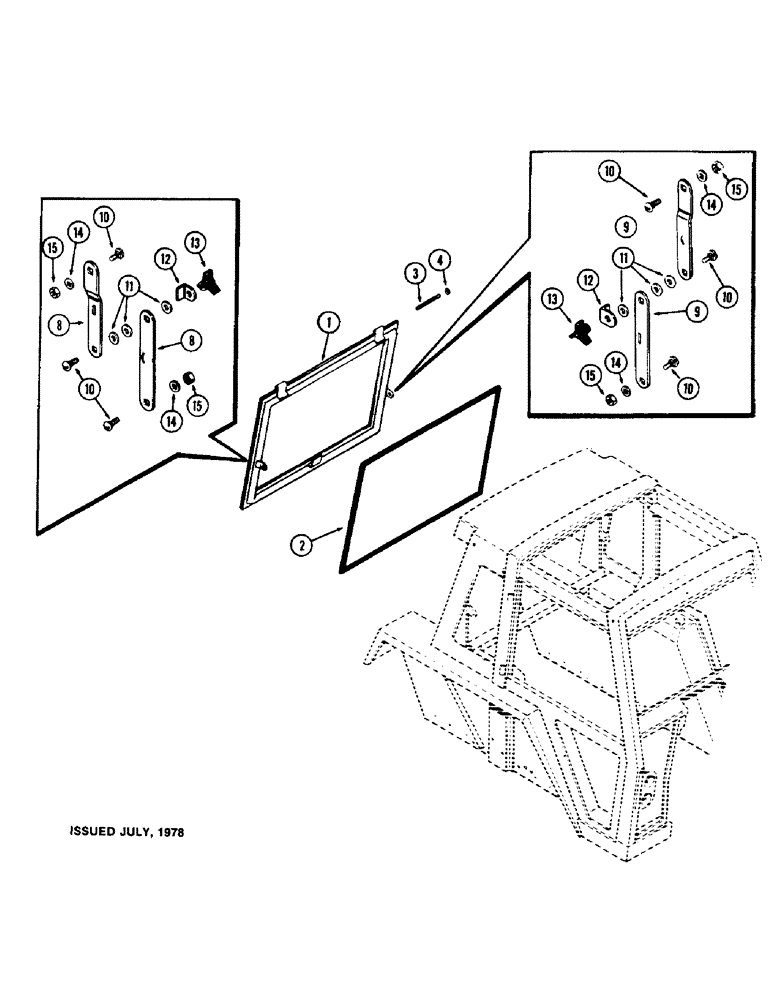

Запчасти Case IH 1570 (283A) - CAB, REAR WINDOW, USED PRIOR TO CAB SERIAL NUMBER 7878400 (09) - CHASSIS/ATTACHMENTS

F89387

FRAME

WINDOW ASSY rear, Includes glass, molding and Ref. 1 and 2, Order F98222 and glass from Figure 284

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME window

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP frame, 150-1/4" long, Order A42504

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP, 50 ft roll, cut to length required

1шт.

3

A42524

PIN,9.53mm OD x 119.38mm L

hinge

2шт.

4

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

8

F63203

ARM

ASSY window control, R.H.

1шт.

9

F63280

ARM

ASSY window control, L.H., Includes Ref. 10, 11 and 12

1шт.

10

A42923

CARRIAGE BOLT

BOLT carriage head, 5/16 x 7/8" NC

3шт.

11

F63299

WASHER

friction, 5/16 x 1 x 1/16"

3шт.

12

F63665

CLIP

stop limit

1шт.

13

F63415

KNOB

control arms

2шт.

14

195-521

WASHER,5/16", SAE

5/16 x 11/16 x 1/16"

4шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, arm ends, 5/16" NC

4шт.
