Запчасти Case IH 1570 (282) - CAB, REAR WINDOW, FIRST USED CAB SERIAL NUMBER 7878400 (09) - CHASSIS/ATTACHMENTS

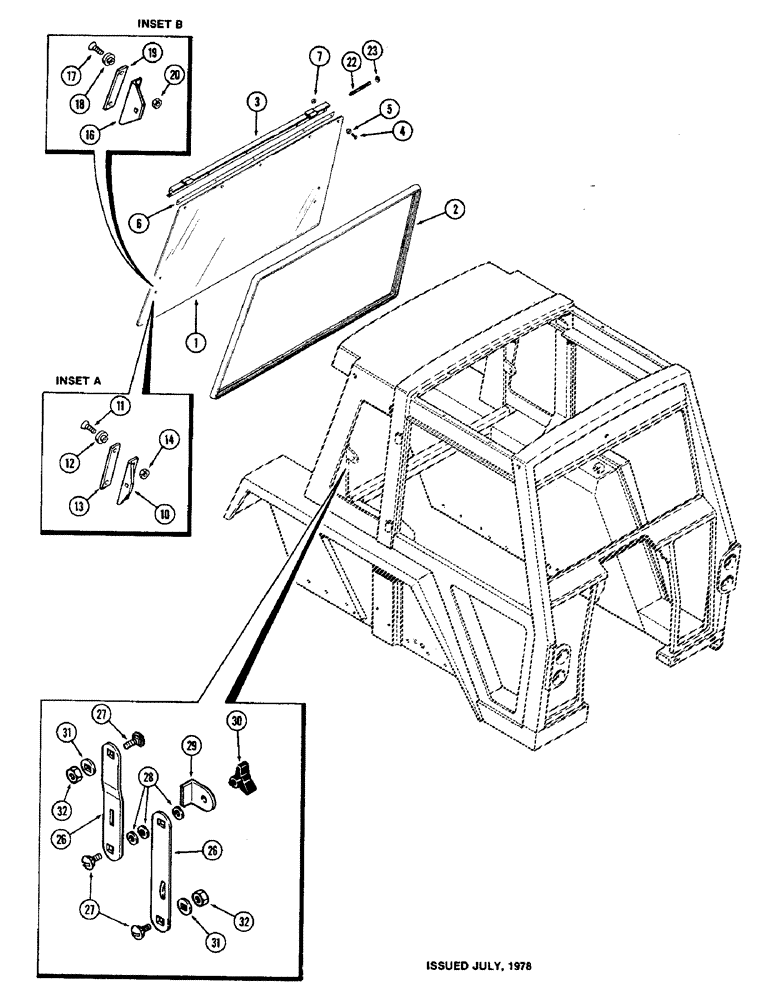

Схема запчастей Case IH 1570 - (282) - CAB, REAR WINDOW, FIRST USED CAB SERIAL NUMBER 7878400 (09) - CHASSIS/ATTACHMENTS
1
2
13
31
32
16
3
12
27
32
31
5
4
20
29
23
27
26
10
7
30
14
26
18
17
22
6
11
19
28

Артикул

Название

Примечание

Количество

F98232

WINDOW ASSY rear, Includes Ref. 1 - 14

1шт.

1

F64202

GLASS

See Figure 284 for glass data

1шт.

2

F64141

SEAL

rear window

1шт.

3

F98160

FRAME

CHANNEL rear window

1шт.

4

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

channel to glass, No. 10-24 x 3/4"

5шт.

5

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

screw pilot, nylon

5шт.

6

F64205

SPACER

channel cushion, rubber

1шт.

7

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

5шт.

10

F64138

BRACKET

regulator arm, See inset A and Ref. 16, 1st used cab Serial No. 7888884

2шт.

11

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

bracket to glass, No. 10-24 x 3/4"

4шт.

12

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

screw pilot, nylon

4шт.

13

F64140

SPACER

bracket, polyethylene, 0.030"

4шт.

14

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

16

F64204

BRACKET

regulator arm, See inset B and Ref. 10, Used prior to cab Serial No. 7888884

2шт.

17

179-159

SCREW,Cross Oval Hd, #10 - 24 x 1"

bracket to glass, No. 10-24 x 1"

4шт.

18

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

screw pilot, nylon

4шт.

19

F64140

SPACER

bracket, polyethylene, 0.030"

10шт.

20

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

22

A42524

PIN,9.53mm OD x 119.38mm L

hinge

2шт.

23

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

26

F63203

ARM

ASSY window control, R.H.

1шт.

26

F63280

ARM

ASSY window control, L.H., Includes Ref. 27, 28 and 29

1шт.

27

A42923

CARRIAGE BOLT

BOLT carriage head, 5/16 x 7/8" NC

3шт.

28

F63299

WASHER

friction, 5/16 x 1 x 1/16"

3шт.

29

F63665

CLIP

stop limit

1шт.

30

F63415

KNOB

lock, control arms

2шт.

31

195-521

WASHER,5/16", SAE

5/16 x 11/16 x 1/16"

4шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hank, arm ends, 5/16" NC

4шт.
