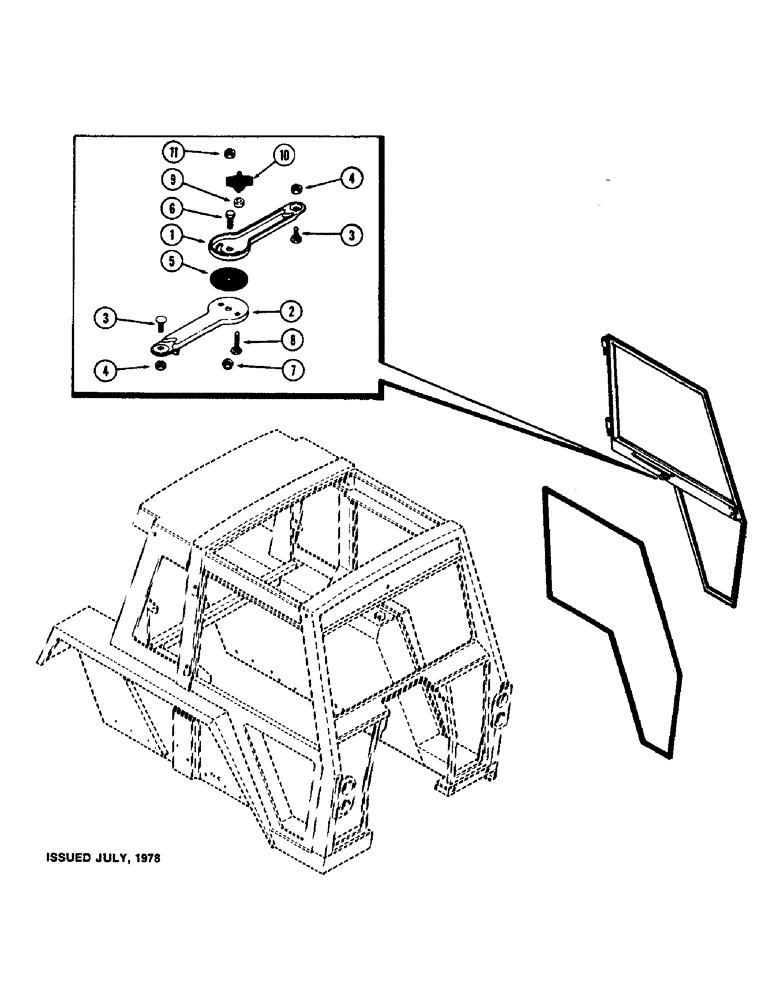

Запчасти Case IH 1570 (281C) - CAB, DOOR HOLDER (09) - CHASSIS/ATTACHMENTS

1

F63993

ARM

door holder, upper

1шт.

2

F63992

ARM

door holder, lower

1шт.

3

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT arm anchor, carriage head, 3/8 x 3/4" NC

2шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, crown-lock, 3/8" NC

2шт.

5

F63405

DISC

friction

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Arm pivot

1шт.

7

231-1445

NUT,5/16"-18, GB

NUT pivot ball, hex, Esna, 5/16" NC

1шт.

8

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT limit, carriage head, 5/16 x 2" NC

1шт.

9

F63586

BUSHING

SPACER limit bolt

1шт.

10

F63415

KNOB

lock, door holder

1шт.

11

131-1117

LOCK NUT,5/16"-18, GA

NUT hex, crown-lock, 5/16" NC

1шт.
