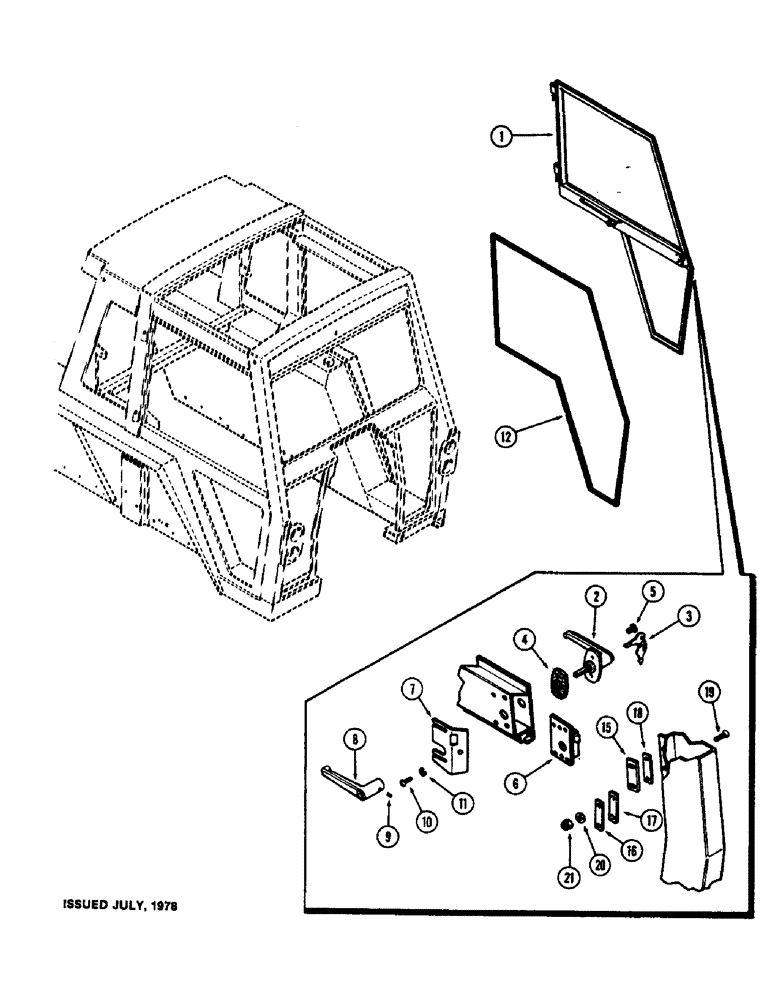

Запчасти Case IH 1570 (281A) - CAB, DOOR, STRIKER LATCH TYPE (09) - CHASSIS/ATTACHMENTS

F89396

DOOR ASSY.

DOOR ASSY, Includes glass and molding and Ref. 1 - 12, Order F89396 and glass from Figure 284, See Figure 284 for door holder

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR

1шт.

2

F64122

HANDLE

ASSY locking, Includes Ref. 3

1шт.

3

A42653

SET OF 2 KEYS

KEY door lock, set of 2

1шт.

4

F63860

GASKET

outside handle

1шт.

5

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

outside handle, Phillips head, No. 10-24 x 5/8"

2шт.

6

F98123

LATCH

LOCK door, Replaces F89708

1шт.

7

F63658

COVER

door latch

1шт.

8

F63925

HANDLE

ASSY inside, Includes Ref. 9

1шт.

9

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

10

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

cover, Phillips head, No. 10-32x 1/2"

4шт.

11

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

12

NSS

NOT SOLD SEPARAT

WEATHERSTRIP, 180-1/2", Order A42504

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP, 50 ft roll

1шт.

15

F63783

CATCH

door

1шт.

16

F63786

SHIM

door catch, 0.015"

1шт.

17

F63784

SHIM

door catch, 0.010"

1шт.

18

F63785

SHIM

door catch, 0.078"

1шт.

19

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

Phillips head, 1/4 x 1" NC

2шт.

20

195-102

WASHER,1/4"

5/16 x 3/4 x 1/16"

2шт.

21

86625061

NUT,1/4"-20, GB

NUT hex, Esna, 1/4" NC

2шт.
