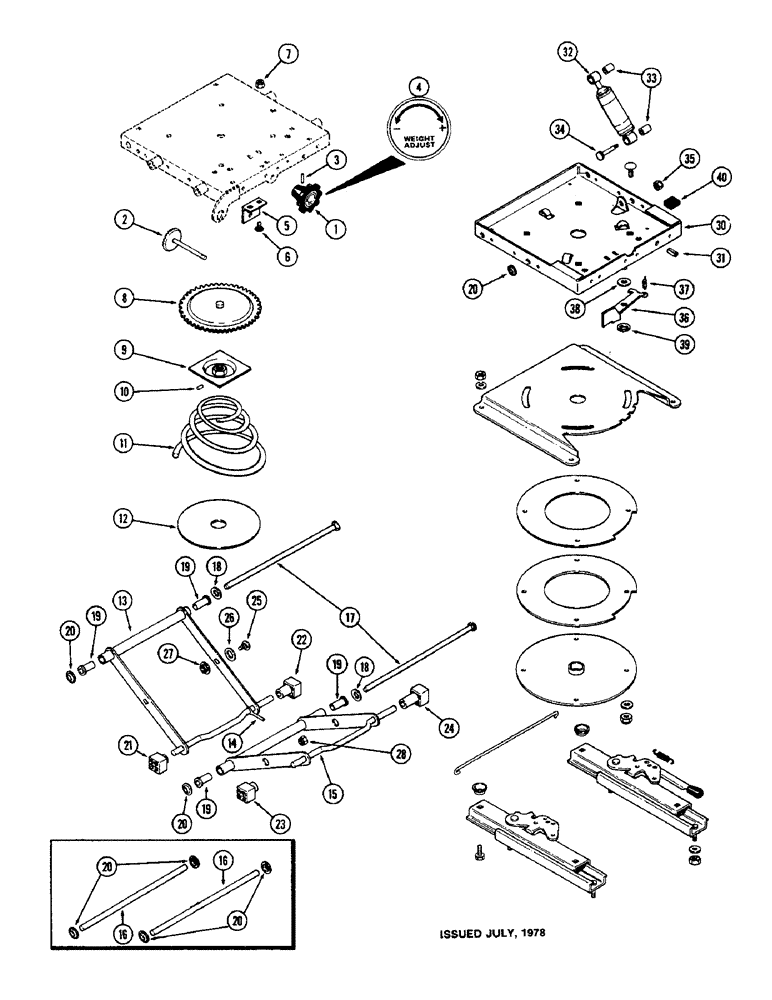

Запчасти Case IH 1570 (269A) - SEAT, CLOTH, WITH SWIVEL (09) - CHASSIS/ATTACHMENTS

A139350

SEAT

AND SUSPENSION ASSY 20 degree swivel, Includes Ref. 1 - 40

1шт.

1

A45508

BUTTON

KNOB weight adjustment

1шт.

2

A45513

GEAR

ASSY adjustment, Includes knob shaft

1шт.

3

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

4

A45511

DECAL

weight adjustment

1шт.

5

A45531

BRACKET

shaft

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT carriage head, 1/4 x 1/2" NC

2шт.

7

131-2

NUT,1/4"-20, GB

NUT jam, hex, 1/4" NC

2шт.

8

A45505

GEAR

ASSY weight adjustment

1шт.

9

A45504

SPRING WASHER

spring

1шт.

10

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

11

A45497

SPRING

conical

1шт.

12

A45530

PAD

spring

1шт.

13

A45533

TUBE

ARM ASSY outer, Includes Ref. 14

1шт.

14

A47070

INDICATOR

ride height

1шт.

15

A45532

TUBE

ARM ASSY inner

1шт.

16

A45506

SHAFT

bearing, Early production, Order Ref. 16 and 17

2шт.

17

A45057

SHAFT

bearing, Replaces A45506

2шт.

18

195-25

WASHER,3/8"

Use with A45057 shaft 3/8"

2шт.

19

A45496

TUBE

bearing

4шт.

20

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

1шт.

21

A45512

BLOCK

slider, 1-3/16"

1шт.

22

A45516

BLOCK

slider, 2-3/16"

1шт.

23

A45515

BLOCK

slider, 1-9/16"

1шт.

24

CASA45517

BLOCK

slider, 2-9/16"

1шт.

25

A45055

BOLT

carriage, 3/8 x 1" NC, Replaces A45569

2шт.

26

A45110

WASHER

spacer, Replaces A45519

2шт.

27

A45498

BUSHING

BEARING cross pivot

2шт.

28

131-6

LOCK NUT,3/8"-16, GC

NUT jam, hex, 3/8" NC

2шт.

30

A45525

BASE

ASSY lower, with swivel

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

ABSORBER shock

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING shock absorber

2шт.

34

A45056

STEP BOLT

BOLT shoulder, Replaces 45502

1шт.

35

131-203

LOCK NUT,3/8"-16, GB, LH

NUT lock, hex, 3/8" NC

1шт.

36

A45520

LATCH

swivel

1шт.

37

A45521

SPRING

latch

1шт.

38

A45519

WASHER

spacer

1шт.

39

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

1шт.

40

A45054

BUMPER,Neoprene

seat

2шт.
