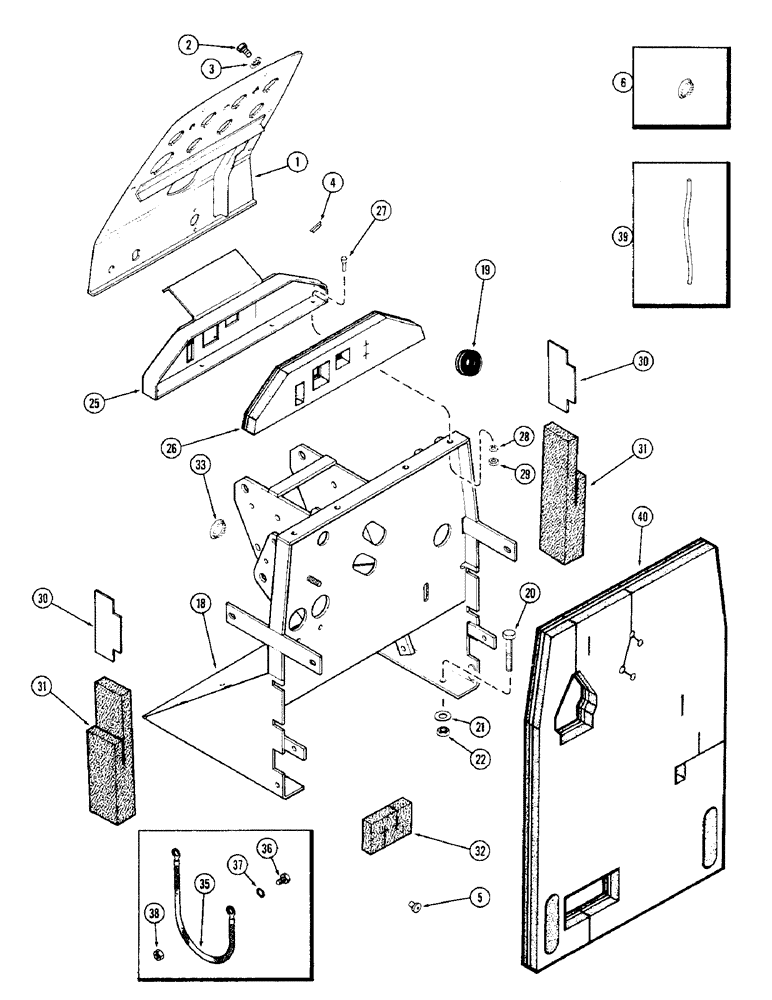

Запчасти Case IH 1570 (258) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

A143384

PANEL

ASSY instrument, Includes decal, Replaces A143384 and A66925, See Figure 272 for panel decals

1шт.

2

A63896

SCREW,Hex, #10 - 32 x 7/8"

brass hex head, 10-32 x 7/8"

6шт.

3

193-93

LOCK WASHER,#10

WASHER internal shakeproof, No. 10

6шт.

4

195-103

WASHER,5/16"

3/8 x 7/8 x 3/32"

6шт.

5

A63897

NUT

weld, neoprene, No. 10-32

6шт.

6

353-411

PLUG,Dome, 1.000" hole, Nylon

Ether start switch opening Dome, 1.000" hole, Nylon

1шт.

6

353-407

PLUG,Dome, .687" hole, Nylon

button, brake light opening, 11/16" dia

1шт.

18

A65531

FRAME

FIREWALL ASSY

1шт.

19

A59719

GROMMET

firewall, 1-1/8 x 2-1/2 x 1/2"

1шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Firewall Hex, 1/2"-13 x 2", G5

4шт.

21

92-8

LOCK WASHER,1/2"

firewall 1/2"

4шт.

22

25-108

NUT,1/2"-13, G5

hex, 1/2" NC, firewall

4шт.

25

A66374

BAFFLE

top, firewall

1шт.

26

A143643

FOAM

PAD top baffle, Replaces A66545, firewall

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Firewall Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Firewall 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

Firewall 1/4"-20, G5

4шт.

30

A66378

SUPPORT

foam, side sealing, firewall

2шт.

31

A66379

BAFFLE

foam, firewall, side, To be attached with adhesive 345-22

2шт.

32

A64965

SEAL

BAFFLE foam, opening, To be attached with adhesive 345-22, firewall

4шт.

33

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG button, 1-1/2" dia, firewall

4шт.

35

A60882

STRAP

ground, 16" long, firewall

1шт.

36

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Firewall Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

37

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Firewall Ext-Int Tooth, 1/2"

2шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Firewall

1шт.

39

345-27

BEAD filler, firewall

1шт.

40

A143644

FOAM

PAD acoustical, firewall, Replaces A66552

1шт.
