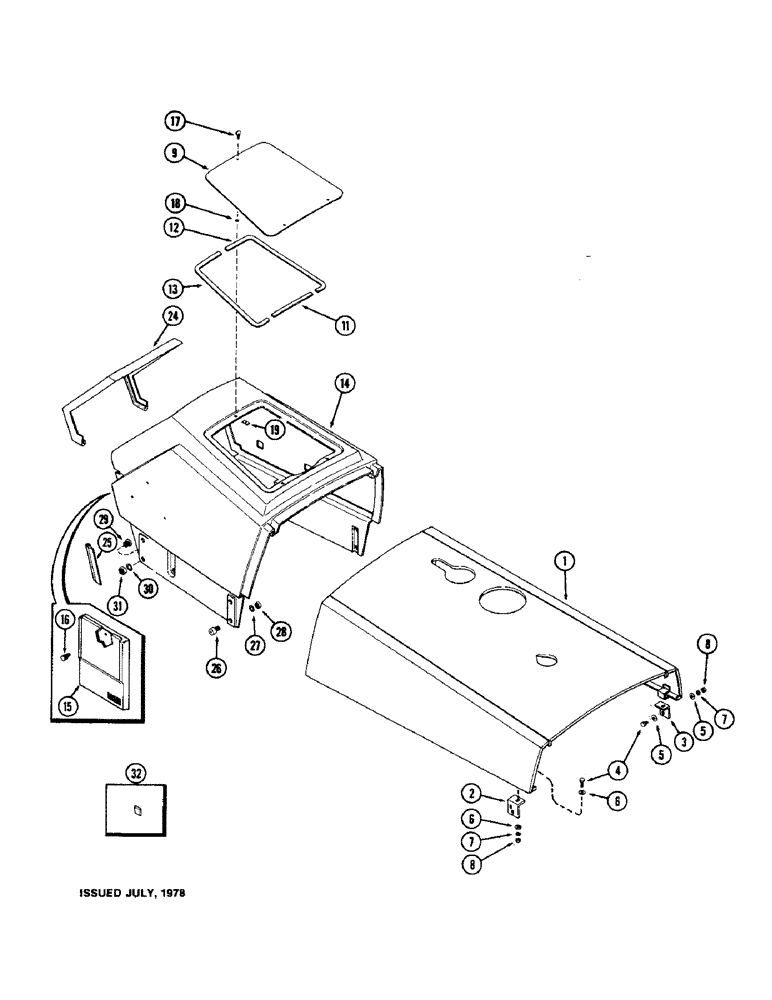

Запчасти Case IH 1570 (250) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A139856

HOOD ASSY front

1шт.

2

A63972

BRACKET

hood to grille, R.H.

1шт.

3

A63973

BRACKET

hood to grille, L.H.

1шт.

4

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

hex, 5/16 x 1" NC

6шт.

5

195-130

WASHER, 3/8 x 7/8 x 1/16"

8шт.

6

195-522

WASHER,5/16"

3/8 x 3/4 x 1/16"

4шт.

7

192-45

LOCK WASHER

lock, 5/16"

6шт.

8

129-518

NUT,5/16"-18, G5

hex, 5/16" NC

6шт.

9

A59391

COVER

hood access

1шт.

11

A135680

SEAL

SEAL cover, center

1шт.

12

A135681

SEAL

cover, L.H.

1шт.

13

A135682

SEAL

cover, R.H.

1шт.

14

A141970

COVER

HOOD ASSY rear, Replaces A66383

1шт.

15

A141933

BOX

operator's manual

1шт.

16

A143300

FASTENER

speed clinch

2шт.

17

A137887

NUT

STUD wing head, rear hood cover

3шт.

18

A61045

RETAINER

stud, rear hood cover

3шт.

19

A63849

CLIP

receptacle, rear hood cover

3шт.

24

A64867

MOLDING rear hood and instrument panel, upper

1шт.

25

A64868

MOLDING rear hood and side panel, lower

2шт.

26

A63855

SPACER

rear hood

4шт.

27

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

28

129-107

NUT,5/8"-11, G5

4шт.

29

A63856

SPACER

rear hood

4шт.

30

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

31

129-148

JAM NUT,Jam, 3/4"-10, G5

jam, hex, 3/4" NC

4шт.

32

A66659

PLUG

cover, handle hole

1шт.
