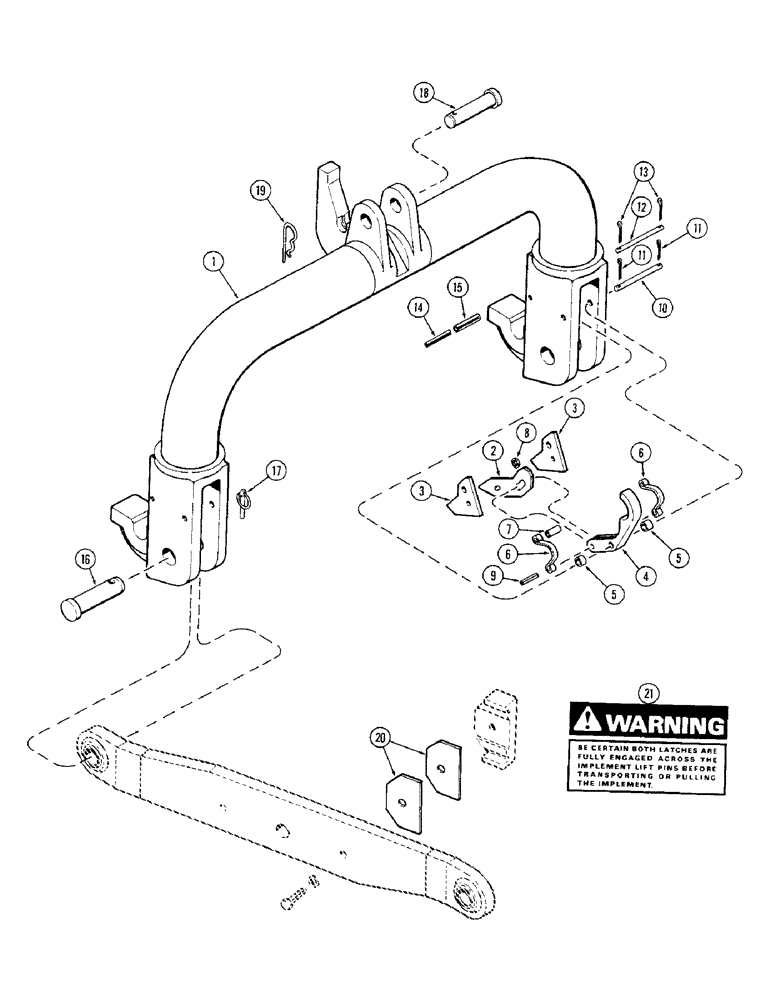

Запчасти Case IH 1570 (240) - D.O.M. SYSTEM, QUICK HITCH COUPLER, CAT. III (09) - CHASSIS/ATTACHMENTS

A67166

ATTACHMENT

coupler, machine item, Includes Ref. 1 - 21

1шт.

A137508

ATTACHMENT

COUPLER ASSY hitch, machine item, Inlcudes Ref. 1 - 17

1шт.

1

A137509

FRAME

hitch coupler

1шт.

2

L10088

PLATE

ASSY actuator release

2шт.

3

L10177

PLATE

implement lock

4шт.

4

L10175

HANDLE

release

2шт.

5

T30946

BUSHING

SPACER handle, 1/2 x 3/4 x 1/2"

4шт.

6

L10263

SPRING

activator

4шт.

9

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

2шт.

7

L10264

BUSHING

SPACER actuator, 3/8 x 1/2 x 1"

2шт.

8

A29701

BUSHING

SPACER release activator, 1/2 x 5/8 x 1/4"

2шт.

10

L10262

PIN

pivot, 1/2" OD x 4-11/16" long

2шт.

11

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

12

L10261

PIN

spring anchor, 3/8" OD x 4-11/16" long

2шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

14

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

2шт.

15

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

2шт.

16

A75028

PIN,36.45mm OD x 138mm L

lower hitch

2шт.

17

A64204

PIN

klik

2шт.

18

A56401

PIN

swivel

1шт.

19

A56393

PIN

cotter hair

1шт.

20

A64331

BUSHING

SPACER sway block

4шт.

21

321-3339

DECAL

warning, latch

1шт.
