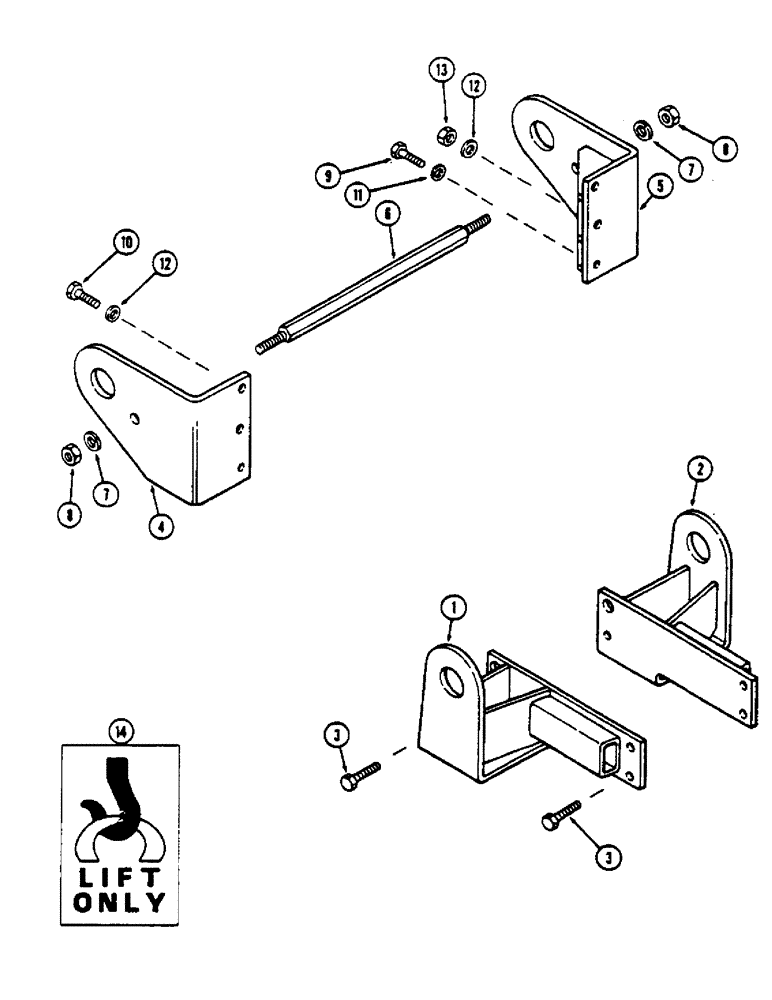

Запчасти Case IH 1570 (239A) - LOADING LIFT EYES, FRONT (09) - CHASSIS/ATTACHMENTS

1

A143255

BRACKET

EYE lift, front, R.H.

1шт.

2

A143258

BRACKET

EYE lift, front, L.H.

1шт.

3

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

hex, 3/4 x 1-3/4" NC

6шт.

4

A143260

BRACKET

EYE lift, rear, R.H., loading

1шт.

5

A143263

BRACKET

EYE lift, rear, L.H., loading

1шт.

6

A141589

BRACKET

BAR stabilizer, lift eye, loading, rear

1шт.

7

192-31

LOCK WASHER,1"

WASHER, LOCK, , Loading lift eye, rear 1"

2шт.

8

129-110

NUT,1"-8, G5

Loading lift eye, rear 1"-8, G5

2шт.

9

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

hex, 1/2 x 2-1/2" NC, loading lift eye, rear

2шт.

10

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

hex, 5/8 x 2-1/2" NC, loading lift eye, rear

2шт.

11

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

33/64 x 7/8 x 7/64", loading lift eye, rear

2шт.

12

A64303

WASHER

41/64 x 1-1/16 x 1/16", loading lift eye, rear

4шт.

13

129-563

NUT,5/8"-11, G8

hex, 5/8" NC, loading lift eye, rear

2шт.

14

321-3578

DECAL

lift eye, loading, rear

4шт.
