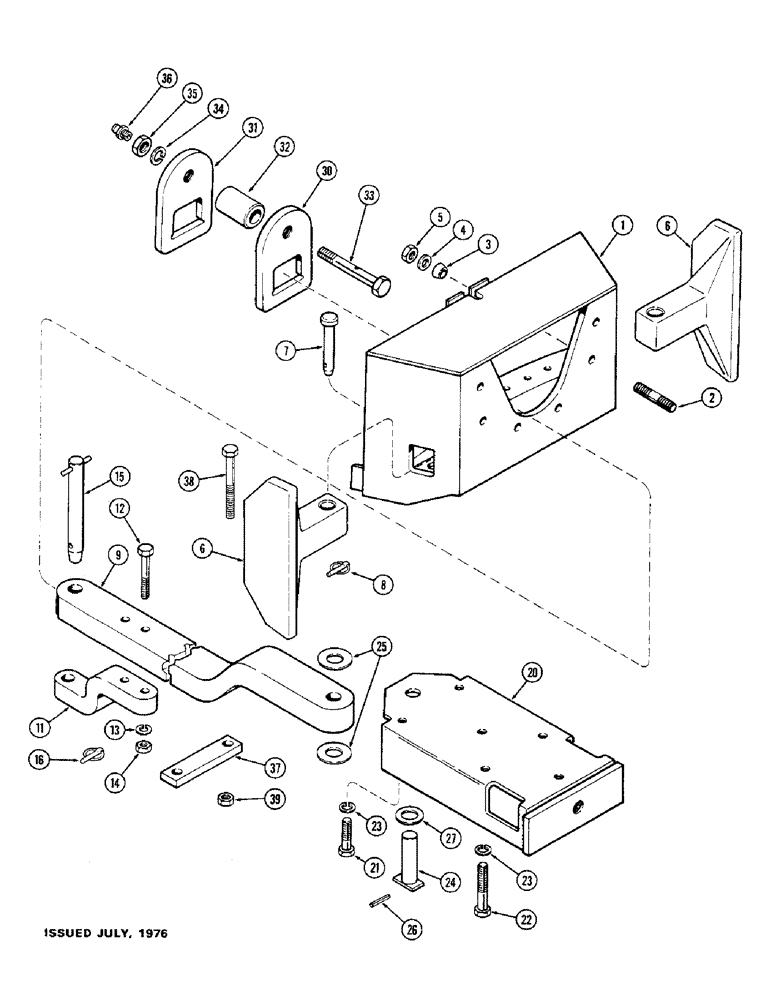

Запчасти Case IH 1570 (236) - D.O.M. SYSTEM, DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS

1

A143022

SUPPORT

ASSY drawbar, Replaces A64162

1шт.

2

A64109

STUD

5/8" NC x 3-1/2"

6шт.

3

A64167

PIN

DOWEL support mounting

6шт.

4

A64166

WASHER

5/8 x 1-1/8 x 1/4

6шт.

5

129-563

NUT,5/8"-11, G8

hex, 5/8" NC

6шт.

6

A65439

STOP

SWAY STOP draft arm

2шт.

7

A63585

PIN

sway stop retaining

2шт.

8

A30338

PIN

klik

2шт.

9

A65753

SWINGING DRAWBAR

DRAWBAR

1шт.

A61836

KIT

drawbar yoke, machine item, Includes Ref. 11 - 16

1шт.

11

A61557

DRAWBAR CLAMP

STRAP hammer

1шт.

12

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

A65760

PIN

ASSY drawbar, Includes Ref. 16

1шт.

16

A61560

LOCK PIN

PIN klik

1шт.

20

A139444

BRACKET

drawbar pivot

1шт.

21

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

hex, 3/4 x 2-1/2" NC

2шт.

22

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

hex, 3/4 x 4" NC

2шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

24

A65748

PIN

drawbar pivot

1шт.

25

A63595

WASHER

anti-rattle

2шт.

26

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

1шт.

27

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

1-1/4 x 2 x 1/4"

1шт.

30

A65754

PLATE

drawbar hanger

1шт.

31

A135433

PLATE

drawbar hanger, threaded

1шт.

32

A135435

ROLLER

drawbar

1шт.

33

A135434

BOLT

roller, drilled

1шт.

34

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

35

25-1016

NUT,1"-8, G5

1шт.

36

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" PT

1шт.

37

A63600

STRAP

drawbar clamp

1шт.

38

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

hex, 5/8 x 5-3/4" NC

2шт.

39

25-1010

NUT,5/8"-11, G5

2шт.
