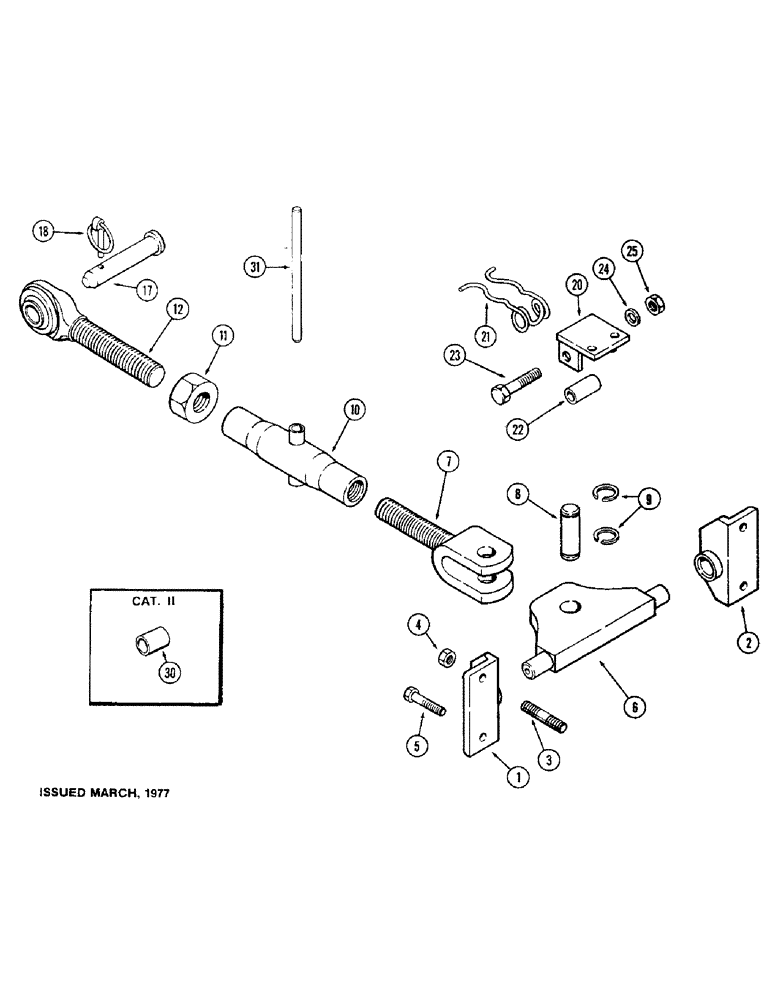

Запчасти Case IH 1570 (234) - THREE POINT HITCH, TURNBUCKLE LINK (09) - CHASSIS/ATTACHMENTS

1

A66218

BRACKET

R.H., upper link

1шт.

2

A66219

BRACKET

L.H., upper link

1шт.

3

A63254

STUD

bracket, 5/8" N.C. x 3-1/4"

2шт.

4

129-563

NUT,5/8"-11, G8

hex, 5/8" NC

2шт.

5

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

hex, bracket, 5/8 x 2-1/2" NC

2шт.

6

A66217

PLATE

upper link clevis pin

1шт.

7

A63523

CLEVIS

upper link

1шт.

8

A63529

PIN

, Serial Range: clevis-plate

1шт.

9

A28253

RING

snap, clevis pin

2шт.

10

A63527

TURNBUCKLE

link adjusting

1шт.

11

25-1124

NUT,1 1/2"-12, G5

hex, 1-1/2" NF

1шт.

12

A137557

BALL

lower link, Replaces A63526

1шт.

17

A63514

PIN

implement

1шт.

18

A64204

PIN

klik

1шт.

20

A64393

BRACKET

turnbuckle storage

1шт.

21

A61684

CLIP

storage bracket

1шт.

22

A64392

SPACER

clip

1шт.

23

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

30

L10462

BUSHING

ADAPTER ball link hitch pin, Category III to Category II, 1 x 1-1/4 x 2"

1шт.

31

A63520

HANDLE

link adjusting

1шт.
