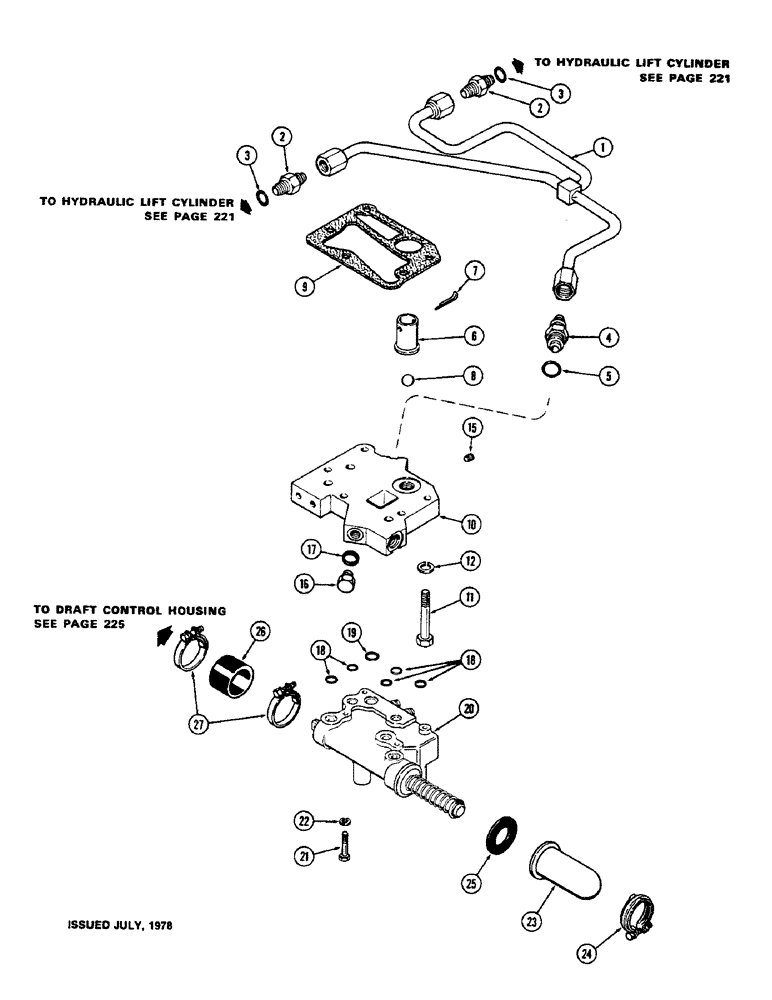

Запчасти Case IH 1570 (228) - D.O.M. CONTROL VALVE, MANIFOLD AND TUBES (09) - CHASSIS/ATTACHMENTS

1

A66424

TUBE

lift cylinder

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, 1/2" tube, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY, 5/8" tube x 7/8"-14, Includes Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

6

A63458

TUBE

manifold oil to return valve

1шт.

8

211-19

BALL,7/8" Dia

1шт.

9

A64014

GASKET

manifold, control valve, Replaces A137620

1шт.

10

A64013

MANIFOLD

control valve

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 x 1-1/2" NC

5шт.

12

92-6

LOCK WASHER,3/8"

5шт.

15

221-844

PLUG,Hex Soc, 1/2"-14

WASHER socket head, 1/2" PT

1шт.

16

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 17 Hex Soc, 3/4"-16 ORB

1шт.

17

21-5006

O-RING, 1/2 x 5/8 x 3/32"

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

valve to manifold, 1/2 x 11/16 x 3/32"

5шт.

19

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

valve to manifold, 5/8 x 13/16 x 3/32"

1шт.

7

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

20

REF

INSTRUCTION

VALVE ASSY control, See Figure 230

1шт.

21

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

21

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

A63473

COVER

control valve spool

1шт.

24

A63475

CLAMP,50.29mm ID

cover

1шт.

25

A65542

GASKET

cover

1шт.

26

A63472

HOSE

control valve to linkage housing

1шт.

27

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 5/8 x 3/32"

1шт.
