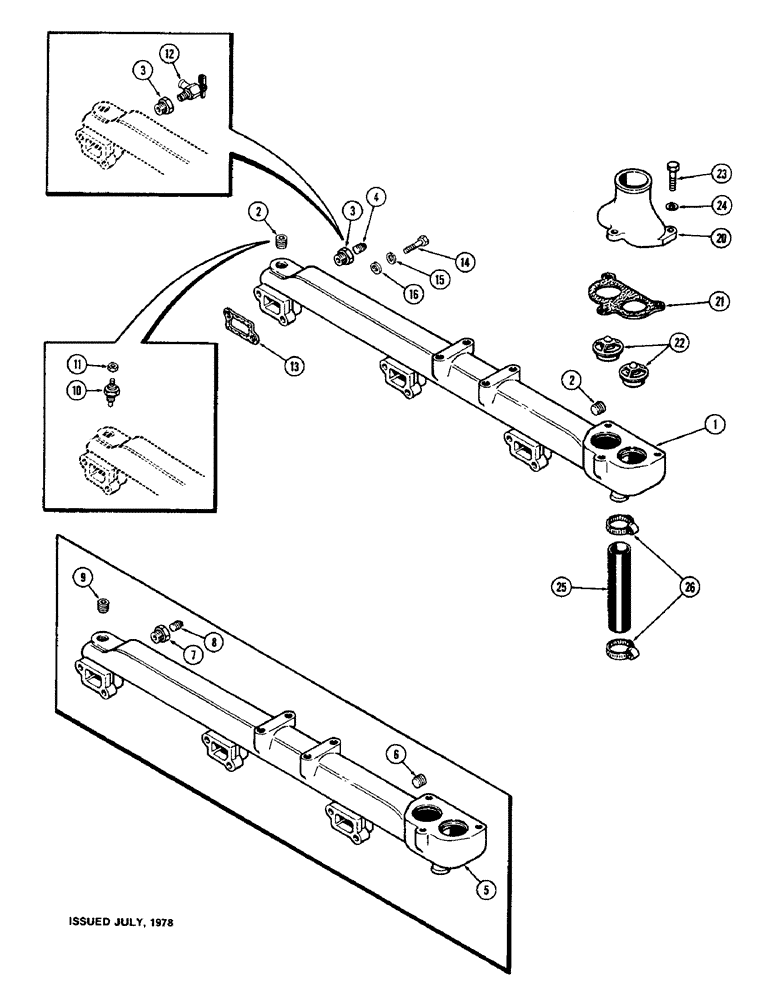

Запчасти Case IH 1570 (006) - WATER MANIFOLD AND THERMOSTAT, 504BDT DIESEL ENGINE (02) - ENGINE

A153152

MANIFOLD

ASSY, with 1/2" PT side port holes, Includes Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

2

221-844

PLUG,Hex Soc, 1/2"-14

hex socket head, 1/2" PT

2шт.

3

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING reducing, 1/2" PT to 3/8" PT

1шт.

4

221-843

PLUG,Hex Soc, 3/8"-18

hex socket head, 3/8" PT

1шт.

A44088

MANIFOLD

ASSY, with 3/4" PT side port holes, Includes Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

6

221-845

PLUG,Hex Soc, 3/4"-14

hex socket head, 3/4" PT

1шт.

7

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING reducing, 3/4" PT to 3/8" PT

1шт.

8

221-843

PLUG,Hex Soc, 3/8"-18

hex socket head, 3/8" PT

1шт.

9

221-844

PLUG,Hex Soc, 1/2"-14

hex socket head, 1/2" PT

1шт.

10

A66733

TRANSMITTER

UNIT sender, engine temperature, 1/2" PT

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

hex, unit terminal, No. 10-32

1шт.

12

A16764

VALVE

water shut-off

1шт.

13

A58637

MANIFOLD GASKET

water manifold to cylinder head

3шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex.

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

195-25

WASHER,3/8"

6шт.

20

A58638

HOUSING

thermostat

1шт.

21

A58639

GASKET

, Serial Range: housing-manifold

1шт.

22

A57641

THERMOSTAT

180 degrees

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

24

92-6

LOCK WASHER,3/8"

3шт.

25

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

manifold to water pump body, 1-1/4" ID x 5-5/16"

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose, 1-3/16" to 1-3/4"

2шт.
