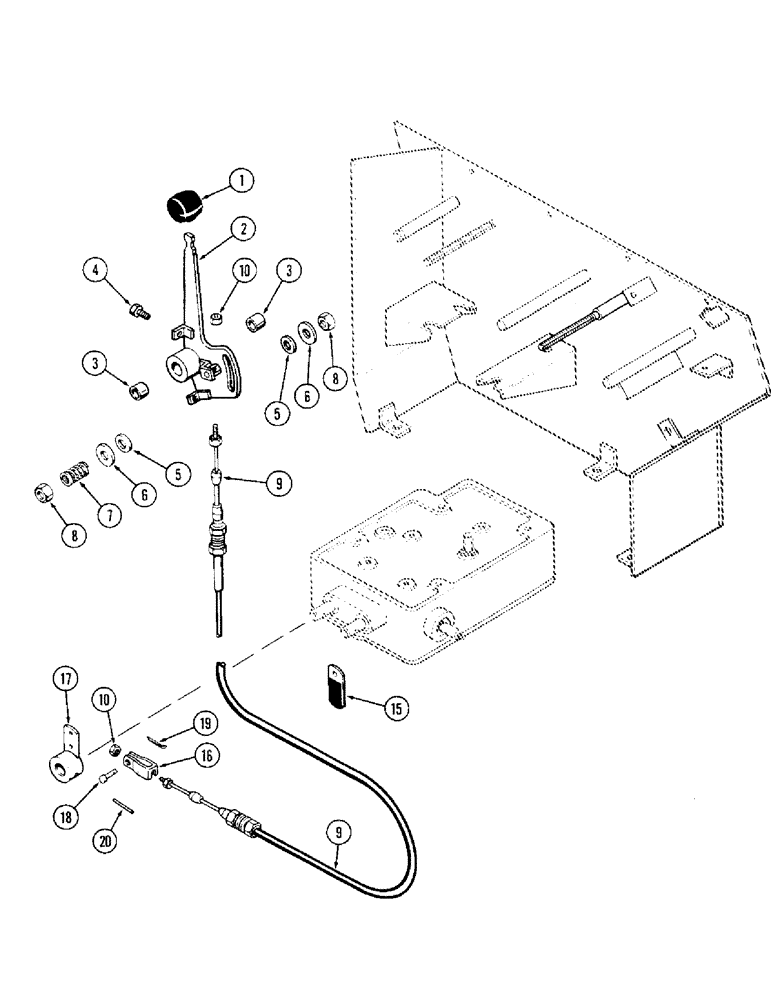

Запчасти Case IH 1570 (218) - D.O.M. SYSTEM, DRAFT SENSING CONTROLS (09) - CHASSIS/ATTACHMENTS

1

A137806

KNOB

hand lever

1шт.

2

A137823

LEVER

ASSY hand, sensing, Includes Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

hand lever

2шт.

4

A59463

BOLT

hex, with nylon insert, 1/4 x 5/8" NC

2шт.

5

A61069

DISC

friction

2шт.

6

195-2172

WASHER,7/16" x 1 1/4" x .083"

1-1/4 x 7/16 x 14 ga

2шт.

7

A65583

SPRING

friction disc

1шт.

8

131-1306

JAM NUT,Jam, 3/8"-16

NUT jam, hex, 3/8" NC

2шт.

9

A63040

CABLE

console control

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

hex keps, No. 10 NF

2шт.

15

A37179

CLIP

cable

1шт.

16

A65265

YOKE

cable

1шт.

17

A63037

LEVER

lower sensing

1шт.

18

141-51

CLEVIS PIN,3/16" x .580"

PIN clevis, 3/16"

1шт.

19

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.
