Запчасти Case IH 1570 (216) - D.O.M. SYSTEM, D.O.M. CONTROLS (09) - CHASSIS/ATTACHMENTS

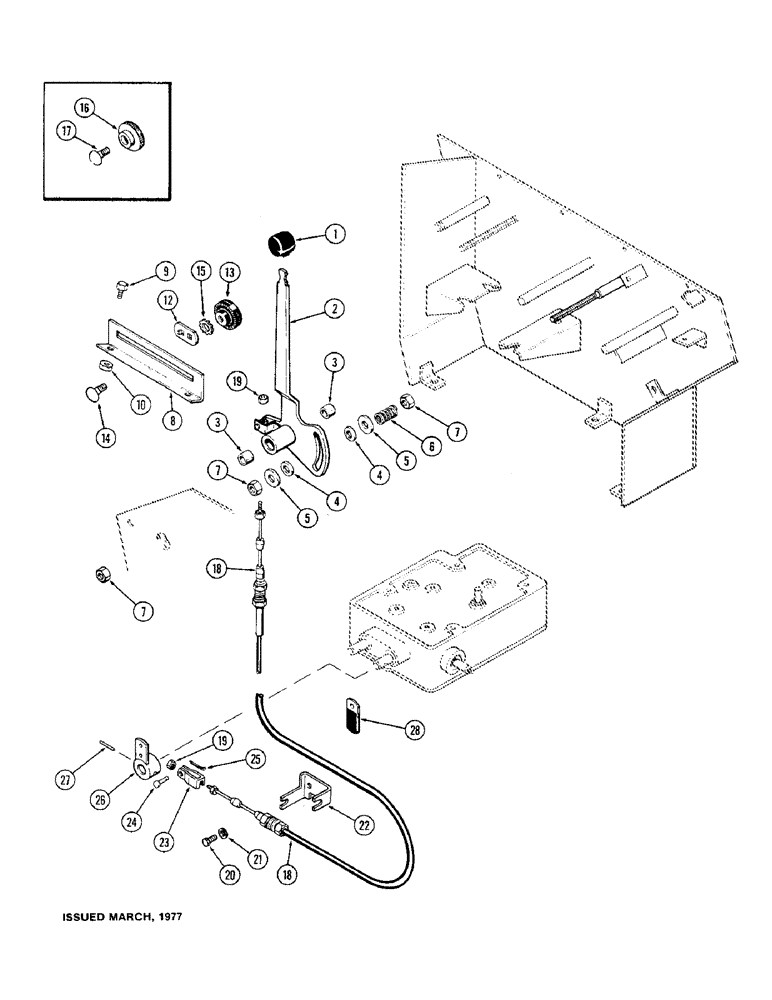

Схема запчастей Case IH 1570 - (216) - D.O.M. SYSTEM, D.O.M. CONTROLS (09) - CHASSIS/ATTACHMENTS
7
3
18
14
5
3
19
4
20
17
12
28
13
6
8
19
23
7
15
10
21
7
25
27
5
4
16
24
26
9
18
22
2
1

Артикул

Название

Примечание

Количество

1

A137806

KNOB

hand lever

1шт.

2

A137820

LEVER

ASSY hand, DOM control, Includes Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

pivot

2шт.

4

A61069

DISC

friction, hand lever

2шт.

5

195-2172

WASHER,7/16" x 1 1/4" x .083"

7/16 x 1-1/4 x 5/64"

2шт.

6

A65583

SPRING

compression, friction disc

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT jam, hex, 3/8" NC

2шт.

8

A59723

LAMP

QUADRANT hand lever

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

131-113

SPRING NUT,J, Ret, 5/16"-18

retainer, Tinnerman, 7/16" NC

2шт.

12

G15950

STOP

quadrant, hand lever

2шт.

13

A143181

NUT

plastic, stop, 1st used tractor Serial No. 8810817

2шт.

14

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, , 1st used tractor S/N 8810817 Short NK, 3/8"-16 x 3/4", G5

2шт.

15

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER lock, ext. shakeproof, 1/2", 1st used tractor Serial No. 8810817

2шт.

16

G15951

NUT

steel, stop, Used prior to tractor Serial No. 8810817

2шт.

17

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Used prior to tractor S/N 8810817 Short NK, 3/8"-16 x 1", G2

2шт.

18

A63040

CABLE

lever to DOM control

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

hex keps, No.10-32

2шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

A65264

BRACKET

anchor, control cable

1шт.

23

A65265

YOKE

lever, control, Serial Range: cable-lower

1шт.

24

141-51

CLEVIS PIN,3/16" x .580"

PIN yoke, 3/16"

1шт.

25

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

26

A63037

LEVER

control linkage

1шт.

27

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

28

A37179

CLIP

cable

1шт.

Выбрано товаров: 27
