Запчасти Case IH 1570 (214) - A67197 AUXILIARY HYDRAULIC PUMP KIT, 11 GPM (08) - HYDRAULICS

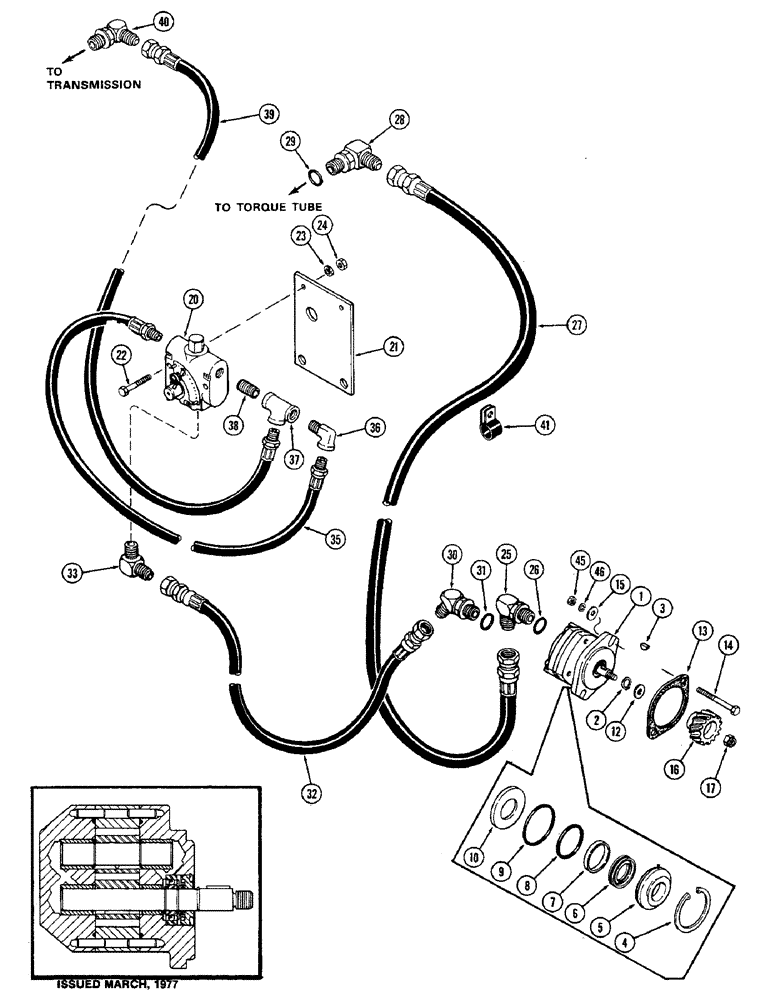

Схема запчастей Case IH 1570 - (214) - A67197 AUXILIARY HYDRAULIC PUMP KIT, 11 GPM (08) - HYDRAULICS
32
38
28
27
31
16
6
17
5
2
7
20
13
23
24
40
15
30
41
9
14
26
25
4
39
21
22
3
33
37
8
45
10
46
36
29
12
1
35

Артикул

Название

Примечание

Количество

A67197

KIT auxiliary pump, 11 GPM, machine item, Includes Ref. 1 - 41

1шт.

1

A139693

PUMP

ASSY, 11 GPM, Includes Ref. 2 - 10

1шт.

2

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

A45378

SEAL

KIT pump seal repair, Includes Ref. 4 - 10

1шт.

4

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

5

A45377

SEAL

RETAINER seal

1шт.

6

A45374

RING

guard, 15/16 x 1-3/16 x 9/64"

1шт.

7

A45376

COLLAR

1шт.

8

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

15/16 x 1-1/8 x 3/32"

1шт.

9

A59066

O-RING,1.239" ID x 1.379" OD

1-1/4 x 1-3/8 x 1/16"

1шт.

10

A45375

WASHER

backup

1шт.

12

A64303

WASHER

gear spacer, 5/8 x 1-1/16 x 1/16"

1шт.

13

A58617

GASKET

, Serial Range: pump-block

1шт.

14

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, 3/8 x 3-3/4" NC

2шт.

15

195-525

WASHER,3/8", SAE

3/8 x 1-1/8 x 1/16"

2шт.

16

L43703

GEAR

drive, pump shaft

1шт.

17

131-58

LOCK NUT,1/2"-20, G5

NUT lock, hex, 1/2" NF

1шт.

20

A139696

VALVE

ASSY variable flow

1шт.

21

A139609

BRACKET

valve mounting

1шт.

22

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

25-104

NUT,1/4"-20, G5

2шт.

25

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º,, 3/4" tube x 1-1/16"-12, Incl. Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 x 1-13/32 x 1/8"

1шт.

27

A141004

HYDRAULIC HOSE,0.75" ID x 64.00", SAE 100R1

HOSE - Inlet, Transmission Filter to Pump 0.75" ID x 64.00", SAE 100R1

1шт.

28

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree, 3/4" tube x 1"-12, Includes Ref. 29

1шт.

29

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

15/16 x 1-5/32 x 1/8"

1шт.

30

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

37 degree, 3/4" tube x 1-1/16"-12, Incl. Ref 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-11/64 x 1-13/32 x 1/8"

1шт.

32

36942

HOSE

outlet, pump to valve, 1/2" ID x 44"

1шт.

33

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

90 degree, 5/8" tube x 1/2" PT

1шт.

35

A141012

HOSE

by-pass, 3/8" ID x 22"

1шт.

36

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

stree, 1/2" male PT x 1/2" female PT

1шт.

37

221-1424

TEE,Pipe, 1/2" NPT

1/2" PT

1шт.

38

221-1185

FITTING

NIPPLE, 1/2" PT x 1-1/8"

1шт.

29

A141010

HOSE

return transmission, 1/2" ID x 63"

1шт.

40

A63536

FITTING

ELBOW hose to transmission, 7/8"-14 x 1-1/16"-12

1шт.

41

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

hose

1шт.

45

25-106

NUT,3/8"-16, G5

hex, Existing on tractor, 3/8" NC

2шт.

46

92-6

LOCK WASHER,3/8"

Existing on tractor 3/8"

2шт.
