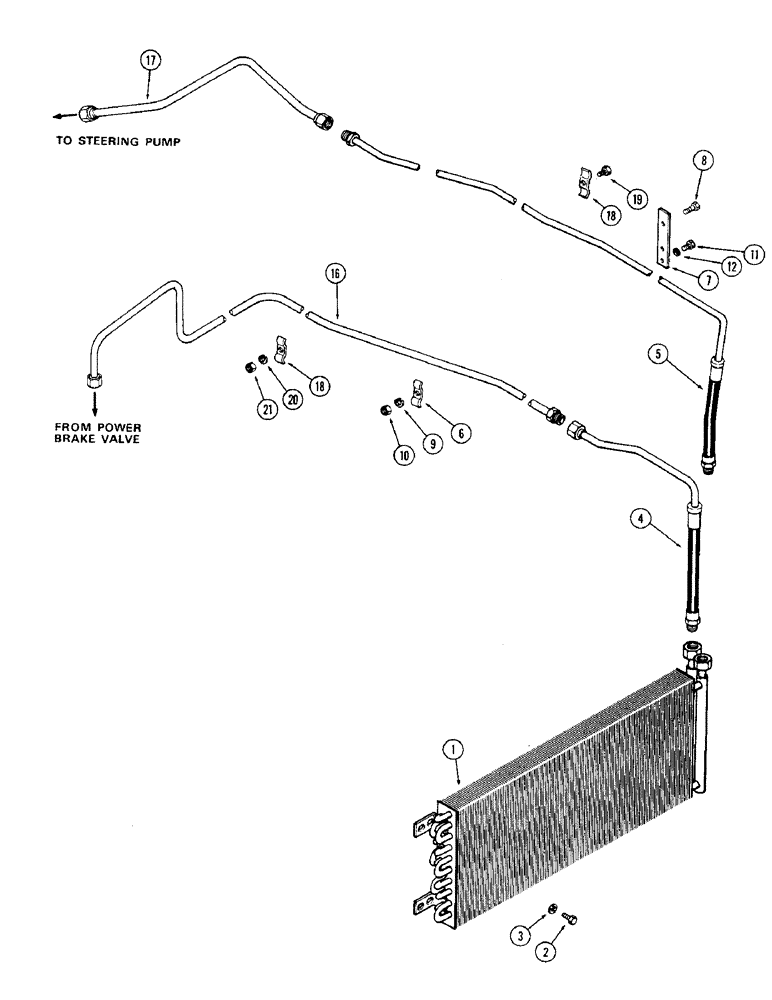

Запчасти Case IH 1570 (004) - OIL COOLER (02) - ENGINE

1

A147528

COOLER

oil, transmission, Replaces A147154 and A139866

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 1/16"

4шт.

4

A145522

TUBE ASSY.

TUBE outlet, oil cooler, Replaces A139867

1шт.

5

A145523

TUBE ASSY.

TUBE inlet, oil cooler, Replaces A139868

1шт.

6

A63323

CLAMP

tubes

1шт.

7

A139869

BRACKET, Serial Range: tubes-radiator

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" NC

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

1шт.

16

A63656

TUBE oil cooler return

1шт.

17

A63654

TUBE

oil cooler outlet, to steering pump

2шт.

18

A63323

CLAMP

oil cooler tubes

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" NC

1шт.
