Запчасти Case IH 1570 (196) - A141382 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE (08) - HYDRAULICS

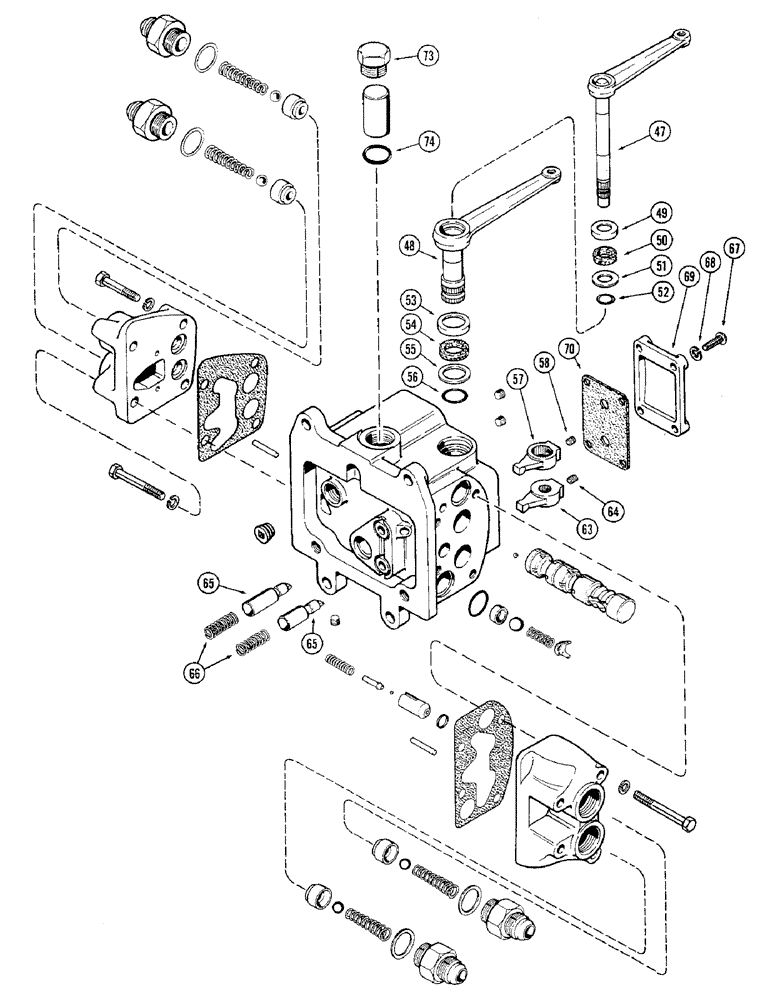

Схема запчастей Case IH 1570 - (196) - A141382 REMOTE HYDRAULIC VALVE, WITHOUT RELIEF VALVE (08) - HYDRAULICS
57
67
50
56
49
74
51
65
48
58
66
73
68
52
64
70
69
65
53
63
54
47
55

Артикул

Название

Примечание

Количество

A141382

VALVE

ASSY remote hydraulic, L.H., Contiued from Figure 194, Includes Ref. 47 - 74

1шт.

47

A57605

LEVER

shifter shaft, outer

1шт.

48

A57604

LEVER

shifter shaft, inner

1шт.

49

A30875

RETAINER

felt washer, 17/32" hole

1шт.

Part of seal kit A43086

1шт.

50

A30853

WASHER

felt, 1/2 x 15/16 x 1/4"

1шт.

Part of seal kit A43086

1шт.

51

A27409

WASHER

33/64 x 63/64 x 1/32"

1шт.

Part of seal kit A43086

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

1/2 x 11/16 x 3/32"

1шт.

Part of seal kit A43086

1шт.

53

A30880

RETAINER

felt washer, 49/64" hole

1шт.

Part of seal kit A43086

1шт.

54

A30879

WASHER

felt, 3/4 x 1-3/16 x 1/4"

1шт.

Part of seal kit A43086

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER, 49/64 x 1-15/64 x 1/32"

1шт.

Part of seal kit A43086

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32"

1шт.

Part of seal kit A43086

1шт.

57

A57547

ARM

ASSY valve spool shifter lever, upper, Includes Ref. 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW hex, socket headless cup pt, 1/4 x 1/4" NC

1шт.

63

A57546

ARM

ASSY lever valve spool shift lever, Includes Ref. 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW hex, socket headless cup pt, 1/4 x 1/4" NC

1шт.

65

A63765

PLUNGER

hydraulic valve spool, inner and outer

2шт.

66

A66472

SPRING

spool plunger, 1-21/32" free length

2шт.

67

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

SCREW hex, mach, 1/4 x 1" NC

4шт.

68

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

69

A66435

CAP

hydraulic valve body

1шт.

70

A76374

GASKET

hydraulic valve body cap

1шт.

Part of seal kit A43086

1шт.

73

A34392

PLUG

pilot relief valve

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8"

1шт.

Part of seal kit A43086

1шт.

A43086

SEAL

KIT seal, Includes Ref. 49, 50, 51, 52, 53, 54, 55, 56, 70 and 74 and Ref. 9, 16, 22, 36 and 37 on Figure 194

1шт.

Выбрано товаров: 34
