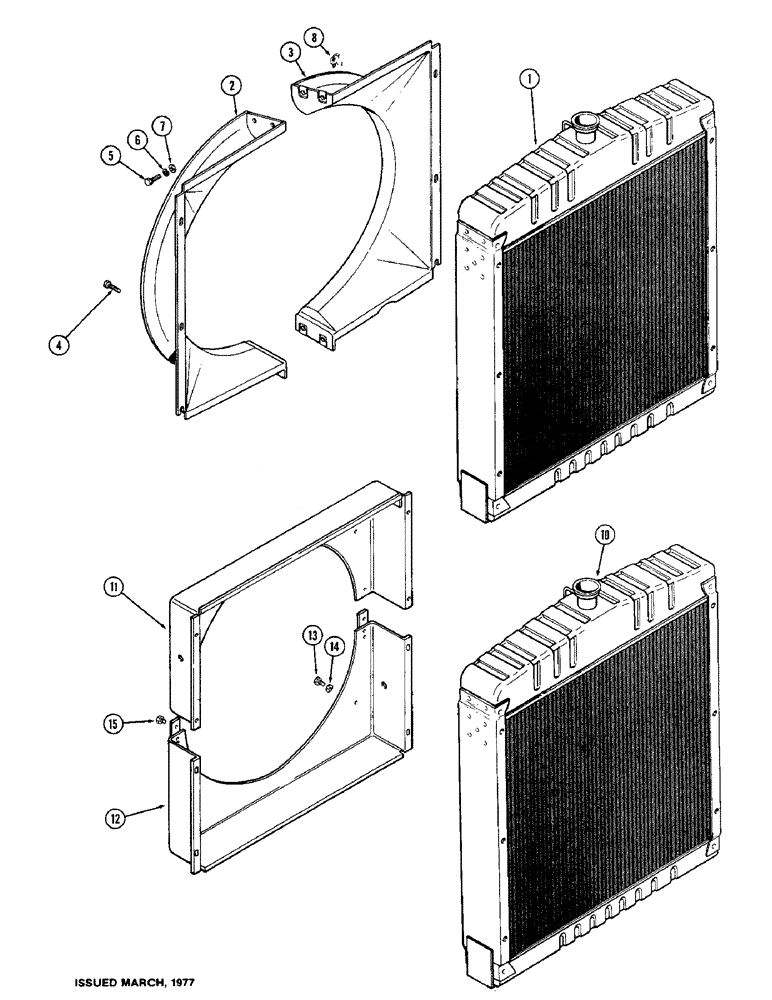

Запчасти Case IH 1570 (003A) - RADIATOR, 504BDT DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 10013839 (02) - ENGINE

1

A143499

RADIATOR

1шт.

2

A147487

SHROUD

fan, R.H.

1шт.

3

A147488

SHROUD

fan, L.H.

1шт.

4

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Shroud to radiator Hex, 1/4"-20 x 5/8", G5, Full Thd

6шт.

5

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

R.H. to L.H. shroud Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

7

195-103

WASHER,5/16"

3/6 x 7/8 x 5/64"

4шт.

8

131-616

NUT,Ret, J, 5/16"-18

5/16" type J

4шт.

10

A139755

RADIATIOR ASSY, Includes Ref. 11 - 15, Used prior to engine number 10013839

1шт.

11

A47063

SHROUD fan, upper, Used prior to engine number 10013839

1шт.

12

A47062

SHROUD

fan, lower, Used prior to engine number 10013839

1шт.

13

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Shroud to radiator, used prior to engine number 10013839 Hex, 1/4"-20 x 5/8", G5, Full Thd

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used prior to engine number 10013839 1/4"

6шт.

15

187-480

SCREW,Hex Hd, #8 x 1/2"

hex., self-tapping, shroud to shroud, No. 8 x 1/2" Used prior to engine number 10013839

2шт.
