Запчасти Case IH 1570 (150) - G34992 POWER BRAKE VALVE (07) - BRAKES

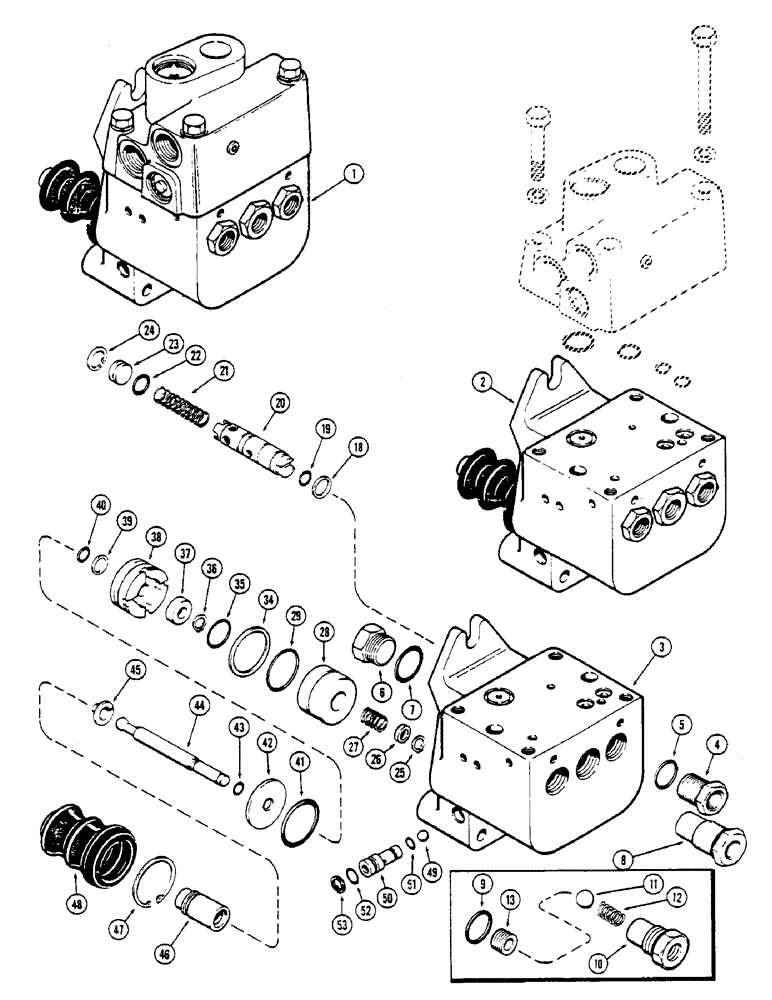

Схема запчастей Case IH 1570 - (150) - G34992 POWER BRAKE VALVE (07) - BRAKES
10
52
36
19
8
7
48
51
24
22
2
23
35
53
37
45
11
27
29
50
21
40
39
25
13
18
42
6
4
20
3
28
44
38
41
12
9
26
46
34
5
47
43
49
1

Артикул

Название

Примечание

Количество

1

G34992

VALVE

ASSY power brake, Continued from Figure 149C, Inlcudes Ref. 2 - 53

1шт.

2

G100061

VALVE

ASSY master cylinder, Inlcudes Ref. 3 - 53

1шт.

3

NSS

NOT SOLD SEPARAT

BODY valve, Order G100061

1шт.

4

A59948

PLUG

reducer, valve body

2шт.

6

86512512

PLUG,7/8" - 14 ORB

Assy, Body, Incl. Ref. 7 Hex Hd, 7/8"-14 ORB

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

A61508

VALVE

ASSY relief, sump pressure, Inlcudes Ref. 9 - 13

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

Part of repair kit A43710

1шт.

10

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

11

211-12

BALL,7/16 Dia

7/16" dia

1шт.

12

A61510

SPRING

relief valve, 21/32" free length

1шт.

13

A61511

SEAT

ball

1шт.

18

A59951

RING

seat, boost spool

2шт.

Part of repair kit A43710

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of repair kit A43710

1шт.

20

G100041

SPOOL

boost

2шт.

21

A59950

SPRING

boost spool, 1-3/4" free length

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

2шт.

Part of repair kit A43710

1шт.

23

A64911

PLUG

boost spool

2шт.

24

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , spool plug 0.625", Int, #62

2шт.

25

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston spring #31, Ext

2шт.

26

A65936

COLLAR

RETAINER piston spring

2шт.

27

A59957

SPRING

piston, 21/32" free length

2шт.

28

A59953

PISTON

boost

2шт.

29

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

1-13/16 x 1-5/16 x 1/16"

2шт.

Part of repair kit A43710

1шт.

34

A59955

SEALING RING

RING piston

2шт.

Part of repair kit A43710

1шт.

35

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3/4 x 7/8 x 1/16"

2шт.

Part of repair kit A43710

1шт.

36

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston washer #31, Ext

2шт.

37

A64912

WASHER

piston seal

2шт.

38

A62072

SEAT

STOP piston

2шт.

39

A59961

RING

back up, piston stop

2шт.

Part of repair kit A43710

1шт.

40

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 9/16 x 3/32"

2шт.

Part of repair kit A43710

1шт.

41

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1-1/4 x 1-1/2 x 1/8"

2шт.

Part of repair kit A43710

1шт.

42

A60646

SPACER

RETAINER piston stop

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16"

2шт.

Part of repair kit A43710

1шт.

44

A64913

ROD

piston

2шт.

45

A60647

COLLAR

RETAINER nylon, piston rod connector

2шт.

Part of repair kit A43710

1шт.

46

A63313

FITTING

CONNECTOR piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston stop 1.50", Int, #150

2шт.

48

A59966

BOOT

piston rod

2шт.

Part of repair kit A43710

1шт.

49

211-11

BALL,3/8" Dia

differential lock release, 3/8" Dia

1шт.

50

A63312

SEAT

differential lock release

2шт.

51

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

release

2шт.

Part of repair kit A43710

1шт.

52

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

release

2шт.

53

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , release 0.50", Int, #50

2шт.

A43710

KIT

repair, Includes Ref. 5, 9, 18, 19, 22, 29, 34, 35, 39, 40, 41, 43, 45, 48 and 51

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32"

2шт.

Part of repair kit A43710

1шт.
