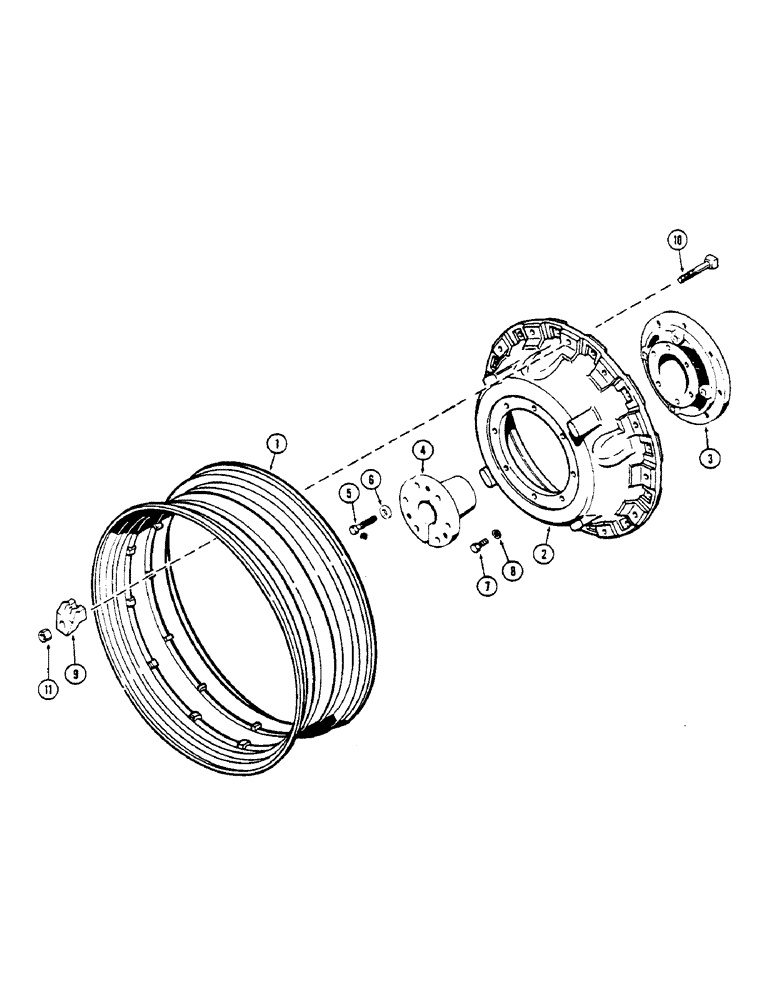

Запчасти Case IH 1570 (138) - REAR WHEELS, CAST, WITH 38 INCH RIMS (06) - POWER TRAIN

1

A61577

RIM

rear wheel, Use with 18.4-38 tire

2шт.

1

A61578

RIM

rear wheel, Use with 20.8-38 tire

2шт.

2

A65417

WHEEL

rear

2шт.

3

A63084

TUBE

HUB universal

2шт.

4

A63805

BUSHING

hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex, 3/4 x 4-1/2" NC

12шт.

6

D31328

WASHER

49/64 x 1-5/8 x 1/4"

12шт.

7

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

hex, 5/8 x 2-3/4" NC

16шт.

8

A64303

WASHER

41/64 x 1-1/16 x 1/16"

16шт.

9

A57654

CLAMP

double ramp, Serial Range: rim-wheel

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

square head, 3/4 x 3-1/2" NC

24шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex, 3/4" NC

24шт.
