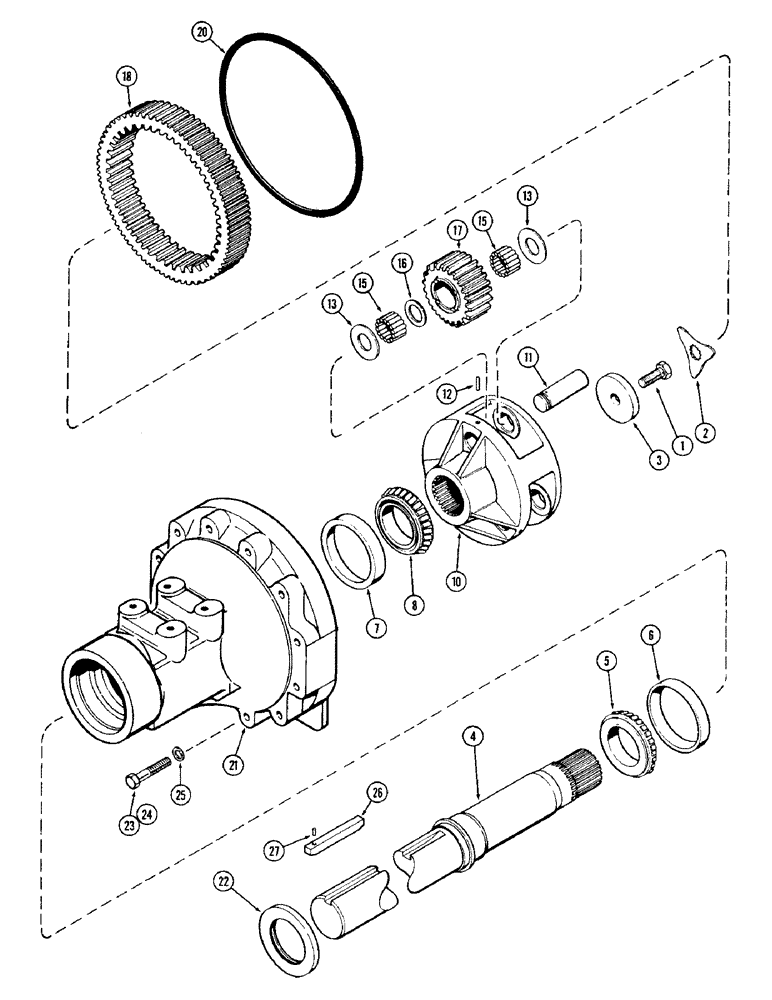

Запчасти Case IH 1570 (134) - REAR AXLE, LONG AXLE, 44-9/16 INCH LONG (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

hex, 7/8 x 2-1/4" NC

2шт.

2

A63221

PLATE

lock, bearing

2шт.

3

A63220

PLATE

retaining, rear axle

2шт.

4

A151848

SHAFT

rear axle, 44-9/16" long, Replaces A136697

2шт.

5

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

CONE bearing, outer, 3-15/16" ID

2шт.

6

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

CUP bearing, outer, 6-3/4" OD

2шт.

7

A63214

CUP

bearing, inner, 6-1/8" OD

2шт.

8

A63216

ROLLER BEARING,89.98mm ID x 44mm W

CONE bearing, inner, 3-9/16" ID

2шт.

10

A148018

CARRIER

planet gear, Replaces A67151

2шт.

11

A151874

PIN

planet gear, with 3/8" hole, Replaces A67153

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A67116

WASHER

roller bearing, 1-21/32 x 3 x 1/32"

12шт.

15

A47252

ROLLER BEARING

KIT planet gear roller, 38, Replaces A45106

6шт.

16

A67117

SPACER

roller bearing, 1-3/4 x 2-9/32 x 5/64"

6шт.

17

A153220

GEAR

planet, Replaces A67152 and A150011

6шт.

18

A151934

GEAR

ring, Replaces A63229

2шт.

20

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

axle housing

2шт.

21

A136252

HOUSING

rear axle

2шт.

22

A136563

OIL SEAL

oil, axle shaft, 4-1/4" ID x 6-3/4" OD x 5/8" wide

2шт.

23

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

hex, 5/8" x 5-1/2" NC

18шт.

24

26-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8

hex, 5/8 x 5-3/4" NC

6шт.

25

A64303

WASHER

hardened, housing bolt

24шт.

26

A63219

KEY

wheel hub, 3/4" square x 6" long

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
