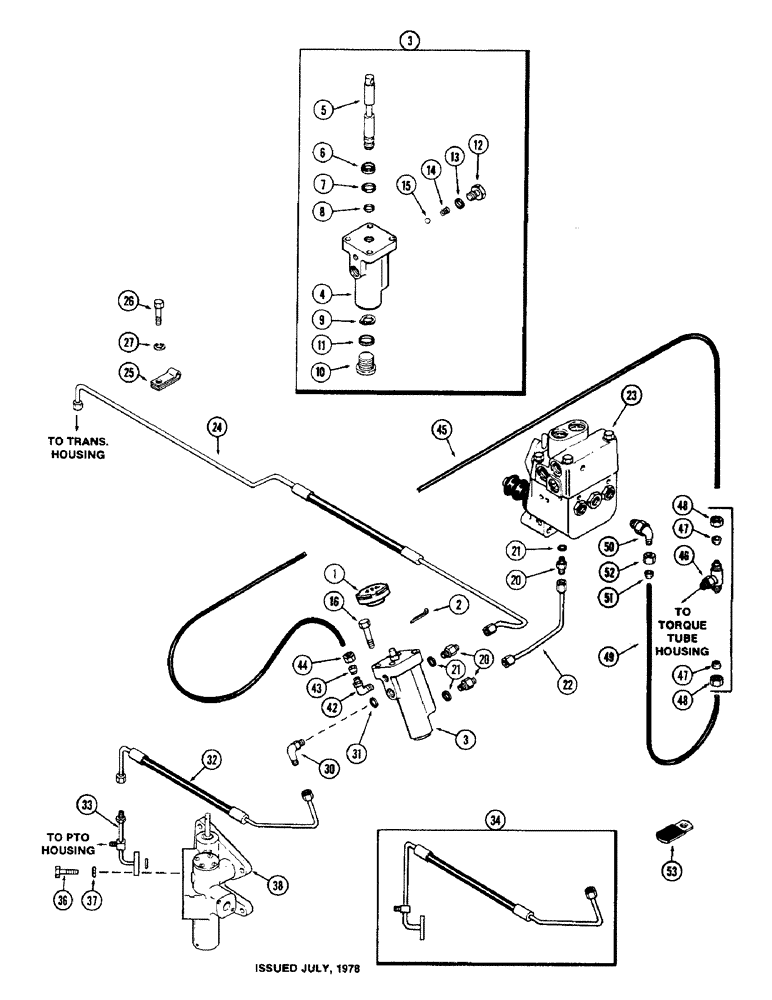

Запчасти Case IH 1570 (130) - DIFFERENTIAL LOCK VALVES AND LINES (06) - POWER TRAIN

1

A141692

PEDAL

foot, with symbol, Replaces A63661

1шт.

2

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

3

A147807

VALVE

ASSY lock control, Replaces A63657, Includes Ref. 4 - 15

1шт.

4

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

5

A147806

SPOOL

valve, Replaces A63659

1шт.

6

A63660

RING

wiper

1шт.

Part of seal kit A43711

1шт.

7

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32"

1шт.

Part of seal kit A43711

1шт.

8

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

7/16 x 5/8 x 3/32"

1шт.

Part of seal kit A43711

1шт.

9

G33052

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Assy, Spool, Incl. Ref. 11 Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 15/16 x 1/8"

1шт.

Part of seal kit A43711

1шт.

12

9672438

PLUG,7/16" - 20 ORB

Assy, Detent spring, Incl. Ref. 13 Hex Hd, 7/16"-20 ORB

1шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 x 3/8 x 1/16"

1шт.

Part of seal kit A43711

1шт.

14

B51407

SPRING

detent ball

1шт.

15

211-11

BALL,3/8" Dia

detent, 3/8" Dia

1шт.

A43711

KIT

seal, valve repair, Includes Refs. 6, 7, 8, 11 and 13

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

20

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSY, Incl. Ref. 21

3шт.

21

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 x 3/8 x 1/16"

1шт.

22

A63664

PIPE

TUBE lock, Serial Range: valve-brake

1шт.

23

G101002

VALVE

ASSY brake, See Figure 148

1шт.

24

A147192

HOSE

TUBE lock valve to transmission housing, Replaces A63668

1шт.

25

A63669

CLIP

tube

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY 90 degrees, Includes Ref. 31

1шт.

31

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 x 3/8 x 1/16"

1шт.

32

A147754

HOSE

control valve to regulator, 1st used tractor Serial No. 8830325

1шт.

33

A147753

PIPE

TUBE control valve to regulator, 1st used tractor Serial No. 8830325

1шт.

34

A147191

TUBE

HOSE control valve to regulator, Used prior to tractor Serial No. 8830325

1шт.

35

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 x 9/16 x 3/32"

1шт.

36

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

Tube flange Hex, 1/4"-20 x 7/8", G5, Full Thd

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

A65672

VALVE

ASSY regulator, See Figure 154

1шт.

42

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW ASSY 90 degrees, Includes Ref. 43 and 44

1шт.

43

222-5186

SLEEVE,3/8" Tube

For 3/8" Tube

1шт.

44

222-5181

NUT,9/16"-24

NUT, For 3/8" tube

1шт.

45

A63997

TUBE

nylon, control valve to junction tee, 25"

1шт.

46

222-5190

TEE,7/16"-24 x 3/8" NPT Run

ASSY junction, Includes Ref. 47 and 48

1шт.

47

222-5186

SLEEVE,3/8" Tube

For 3/8" Tube

2шт.

48

222-5181

NUT,9/16"-24

NUT, For 3/8" tube

2шт.

49

A64389

TUBE

nylon, junction tee to brake valve, 73"

1шт.

50

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY 90 degrees, Includes Ref. 51 and 52

1шт.

51

222-5186

SLEEVE,3/8" Tube

For 3/8" Tube

1шт.

52

222-5181

NUT,9/16"-24

NUT, For 3/8" tube

1шт.

53

A37179

CLIP

CLAMP tube

1шт.
