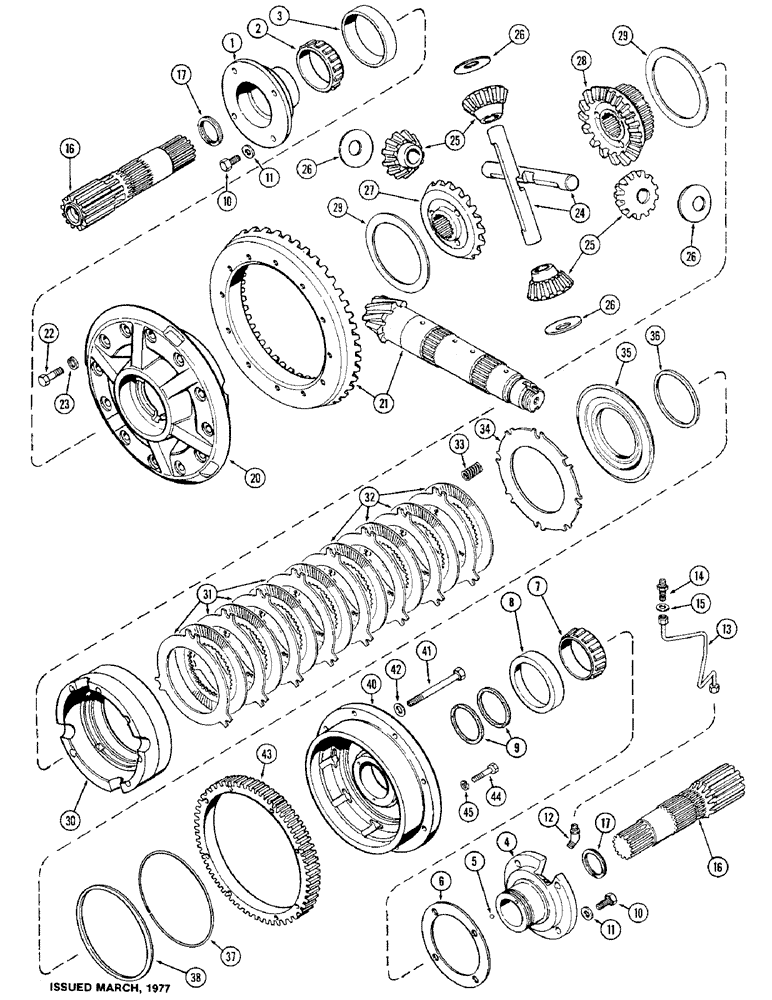

Запчасти Case IH 1570 (125A) - DIFFERENTIAL, BEARING CARRIER, CAGE SIDE GEAR AND SHAFT, USED PRIOR TO TRANSMISSION S/N 10057502 (06) - POWER TRAIN

1

A140049

CARRIER

differential bearing, R.H.

1шт.

2

A32772

ROLLER BEARING,85.75 mm ID x 142.164 mm OD x 34.13, 43.07 mm

CONE bearing, ring gear cage, R.H., 3-3/8" ID

1шт.

3

A32773

ROLLER BEARING,85.75 mm ID x 142.164 mm OD x 43.07 mm

CUP bearing, ring gear cage, R.H., 5-19/32" OD

1шт.

4

A148761

CARRIER

ASSY differential bearing, L.H.

1шт.

5

211-5

BALL,3/16" Dia

L.H. carrier, 3/16" Dia

1шт.

6

A63186

SHIM,.015" Thk

Brg. carrier, LH .015" Thk

1шт.

6

A63187

SHIM,.007" Thk

Brg. carrier, LH .007" Thk

1шт.

6

A63188

SHIM,.005" Thk

Brg. carrier, LH .005" Thk

1шт.

7

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE bearing, differentail, lock cage, L.H., 3-11/32" ID

1шт.

8

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP bearing, differential, lock cage, L.H., 5-1/8" OD

1шт.

9

A63192

RING

seal, bearing carrier, L.H.

2шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

11

A148376

WASHER

33/64 x 7/8 x 1/16"

8шт.

12

222-4091

FITTING

ELBOW 45 degrees, 1/4" tube x 1/8" PT

1шт.

13

A64877

TUBE

oil, differential lock clutch

1шт.

14

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

bulkhead

1шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 x 23/64 x 5/64"

1шт.

16

A67147

SHAFT

differential, with sun gear

2шт.

17

A67141

SPACER

RING retaining, differential shaft

2шт.

20

A142318

CAGE

differential ring gear

1шт.

21

A146325

SET

pinion and spiral bevel gear, matched

1шт.

22

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

hex, 1/2 x 2" NC

12шт.

23

A150672

WASHER

17/32 x 7/8 x 7/64"

12шт.

24

A142343

PIN

differential pinion

2шт.

25

A66731

GEAR

differential pinion bevel

4шт.

26

A64242

WASHER,32.05mm ID x 82.55mm OD x 0.81mm Thk

thrust, pinion gears

4шт.

27

A67142

GEAR

differential bevel side, R.H.

1шт.

28

A67143

GEAR

differential bevel side, L.H.

1шт.

29

A138237

WASHER,137.92mm ID x 178.05mm OD x 0.86mm Thk

thrust, differential side gears

2шт.

30

A142317

CAGE

differential intermediate

1шт.

31

A67115

PLATE

differential lock clutch, steel

8шт.

32

A136340

PLATE

differential lock clutch, Sintered

8шт.

33

A138887

SPRING

return, differential lock piston, A1-3/4" free length

4шт.

34

A136339

PLATE

return spring, differential lock piston

1шт.

35

A66359

PISTON

differential lock, See Figure 124

1шт.

36

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

lip, internal, differential lock piston, See Figure 124

1шт.

37

A62642

ELECTRICAL WIRE

WIRE lip seal, differential lock piston, See Figure 124

1шт.

38

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

lip, external, differential lock piston, See Figure 124

1шт.

40

A144582

CAGE

differential lock

1шт.

41

26-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 8

hex, 5/8 x 6-3/4" NC, grade 8

8шт.

42

A64303

WASHER

41/64 x 1-1/16 x 1/16"

8шт.

43

A144583

GEAR

ring, park

1шт.

44

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

hex, 3/8 x 1-3/4" NC, grade 8

8шт.

45

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

27/64 x 3/4 x 1/32"

8шт.
