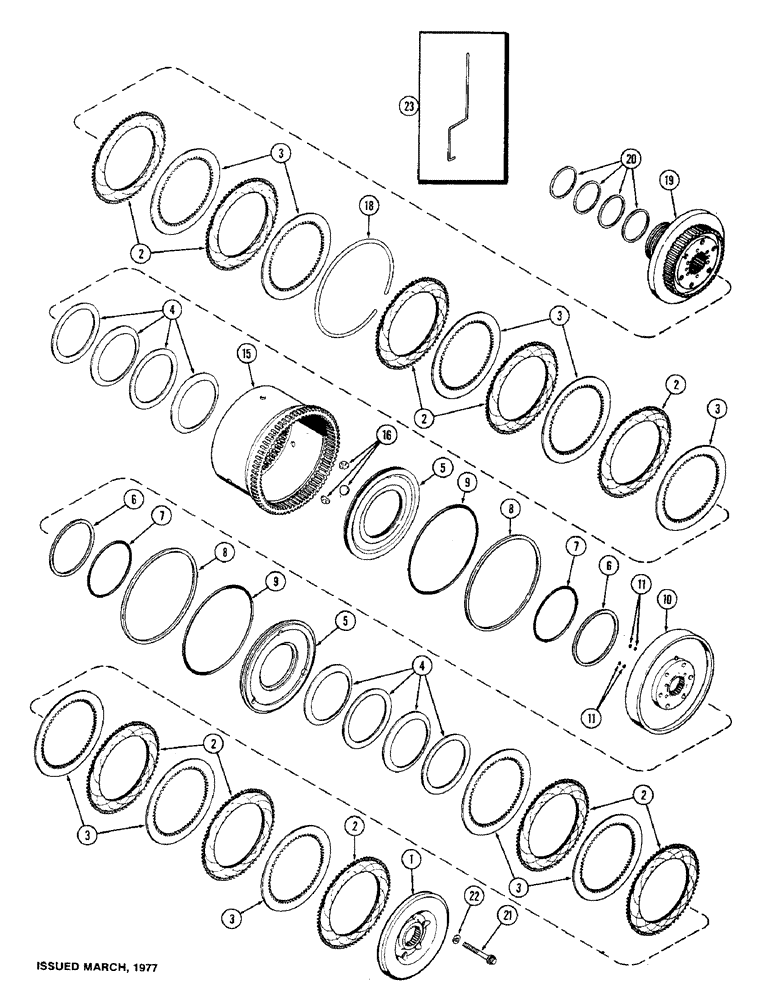

Запчасти Case IH 1570 (120) - CLUTCH, C2 AND C3 CLUTCHES, FIRST USED TRANSMISSION SERIAL NUMBER 10057502 (06) - POWER TRAIN

1

A75115

HUB

C2 clutch

1шт.

2

A61981

PLATE

clutch, sintered

10шт.

3

A58089

PLATE

clutch, steel

10шт.

4

A58094

SPRING

clutch return

8шт.

5

A146670

PISTON

clutch, C2 and C3

2шт.

6

A146683

RING

internal seal, piston, 4-15/32" ID

2шт.

Part of seal kit A46286

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

piston, internal, 4-21/32" ID

2шт.

Part of seal kit A46286

1шт.

8

A146682

RING

piston, external, 8-5/16" OD

2шт.

Part of seal kit A46286

1шт.

9

A150753

O-RING,7.84" ID x 0.107"

piston, external, 7-13/16" OD

2шт.

Part of seal kit A46286

1шт.

10

A148688

CARRIER

clutch

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING carrier, 19/64 x 7/16 x 1/16"

4шт.

Part of seal kit A46286

1шт.

15

A138618

GEAR

ring

1шт.

16

A58413

BUTTON

BEARING button, ring gear

6шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

snap, clutch retaining gear

1шт.

19

A75117

HUB

clutch, C3

1шт.

20

A58384

RING

oil distributor piston

4шт.

21

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW hub, ferry hd, 3/8 x 3" NC

6шт.

The original bolt used was 3/8"x 3". Some dealers drilled and tapped for a 7/16"x3" bolt (not Case recommended). Can not find any bolt in parts system, find an outside source.

1шт.

22

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

hub screw, 7/16 x 3/4 x 1/32"

6шт.

23

A43110

TOOL

HOLDER clutch plate service

2шт.

A46286

SEAL KIT,Power Shift

KIT seal, Includes Ref. 6 - 9 and 11 and Ref. 6, 7, 8, 17 - 20, 30 and 31 on Figure 116 and Ref. 7, 8 and 13 - 16 on Figure 117A

1шт.
