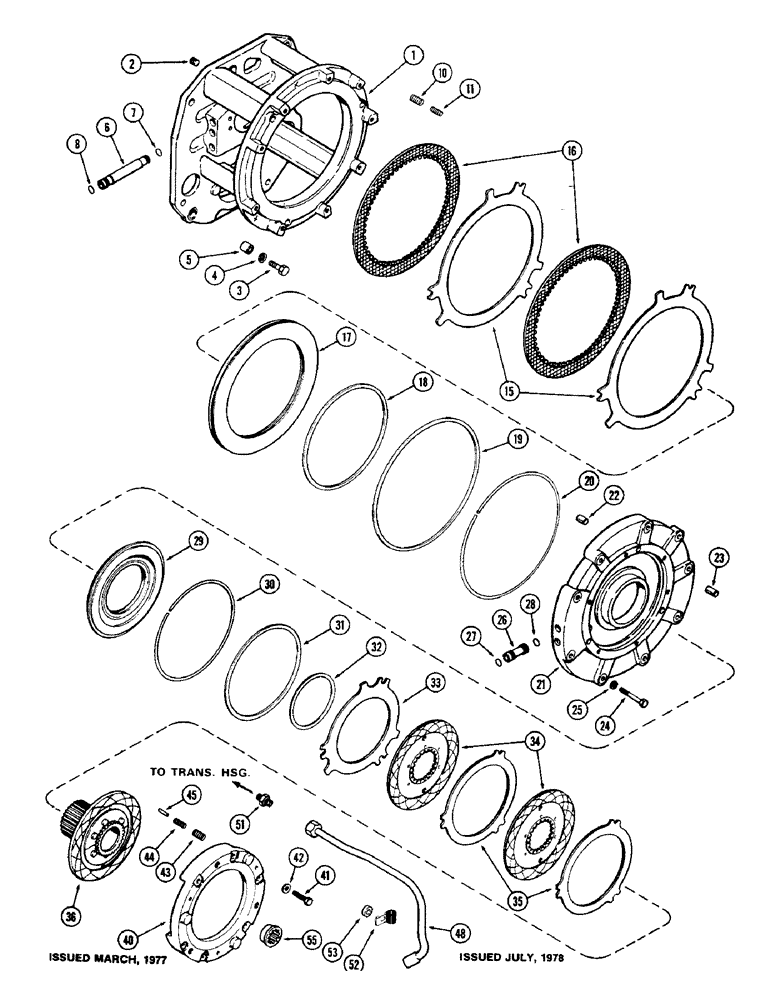

Запчасти Case IH 1570 (117C) - C1 AND C4 CLUTCHES, USED PRIOR TO TRANSMISSIONS SERIAL NUMBER 10057502 (06) - POWER TRAIN

1

A67263

CARRIER

ASSY power shift, Replaces A67161, Order (1) A151275 carrier, (3) 113-422 and (1) 113-421 bolt, Includes Ref. 2

1шт.

2

221-841

PLUG

socket hd, 1/4" PT

2шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 x 2-1/2" NC

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A50011

SLEEVE

dowel

2шт.

6

A63118

TUBE

oil

3шт.

7

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

oil tube, 1/2 x 5/8 x 1/16"

3шт.

Part of seal kit A42886

1шт.

8

A65918

O-RING,0.551" ID x 0.691" OD

oil tube, 9/16 x 11/16 x 1/16

3шт.

10

A62607

SPRING

return, C4, 3/8" dia x 1-3/32" free length

3шт.

11

A62606

SPRING

return, C4, 9/16" dia x 1-3/32" free length

3шт.

15

A58056

PLATE

steel, C4 clutch

2шт.

16

A67128

PLATE

friction, C4 clutch

2шт.

17

A58395

PISTON

C4 clutch, Order A146671 piston and (1) A146680, (1) A146681, (1) A150753 and (1) A150784 rings

1шт.

18

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING sealing, internal, C4 piston

1шт.

Part of seal kit A42886

1шт.

19

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING sealing, external, C4 piston

1шт.

Part of seal kit A42886

1шт.

20

A62643

ELECTRICAL WIRE

WIRE sealing ring, C4 piston

1шт.

Part of seal kit A42886

1шт.

21

A67163

CARRIER

ASSY piston, C1 and C4, Includes Ref. 22 and 23

4шт.

22

A65555

PIN

C4 reaction plate, 1-9/16" long

3шт.

23

A75102

PIN,12.45mm OD x 50.8mm L

C1 reaction plate, 2" long

3шт.

24

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, 3/8 x 2-1/4" NC

9шт.

25

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

carrier bolt, 7/16 x 3/4 x 1/32"

9шт.

26

A63096

TUBE

oil

2шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

oil tube, 9/16 x 11/16 x 1/16"

2шт.

28

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

oil tube, 1/2 x 5/8 x 1/16"

2шт.

Part of seal kit A42886

1шт.

29

A66392

PISTON

C1 clutch, Order A146670 piston, (1) A146682, (1) A146683, (1) A150753 and (1) A150754 rings

1шт.

30

A62642

ELECTRICAL WIRE

WIRE sealing ring, C1 piston

1шт.

Part of seal kit A42886

1шт.

31

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING sealing, external, C1 piston

1шт.

Part of seal kit A42886

1шт.

32

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING sealing, internal, C1 piston

1шт.

Part of seal kit A42886

1шт.

33

A65524

PLATE

C1 clutch, with tab

1шт.

34

A142536

PLATE

C1 clutch, Standard

2шт.

35

A65525

PLATE

C1 clutch, without tab

2шт.

36

A150113

PLATE ASSY.

GEAR ASSY reaction, C1 clutch, Replaces A144101

1шт.

40

A140075

PLATE

reaction, C1 clutch

1шт.

41

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, 3/8 x 2-1/4" NC

6шт.

42

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

bolt, 7/16 x 3/4 x 1/32"

6шт.

43

A62606

SPRING

return, 9/16" dia x 1-3/32" free length

3шт.

44

A62607

SPRING

return, 23/64" dia x 1-3/32" free length

3шт.

45

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

48

A136209

TUBE ASSY lube oil, C1 clutch

1шт.

51

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR trans. case, 3/8" tube x 1/4" PT

1шт.

52

49845

CLAMP

tube

1шт.

53

A136208

SPACER

clamp, 7/16 x 13/16 x 3/16"

1шт.

55

A76482

BUSHING,20T

front, input shaft

1шт.

A42886

SEAL KIT

seal, Includes Ref. 7, 18, 19, 20, 28, 30, 31 and 32 and Ref. 6, 7, 8 and 10 on Figure 121A

1шт.
